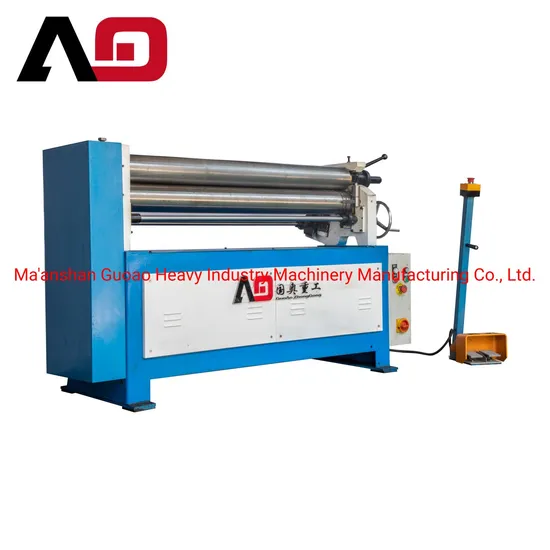

Heavy Series Automaic Fabrication of Sheet Rolling Machine

Product Description

Product Description This series of winding machine is suitable for the winding work of the plate. When rolling, the metal sheet material can be rolled into a cylinder shape first, and then welded, can be made into ventilation, water, smoke exhaust, exhaust and other functions of the pipeline, hardware products.
This product has the characteristics of small size, simple structure, easy operation, light weight, easy to move, etc. (by its can be made into universal shaft type according to customer requirements).
Processing features: roll plate is suitable, parts deformation uniform, after processing, parts can be fully stress diffusion, not easy to make the surface production hardening phenomenon, can maintain the original performance of the plate, greatly better than the manual beating into the pipeline, so widely used.
Structure
1. roller
2. upper roller locator
3. emergency stop switch
4. lower roller adjust wheel
5. side roller adjust wheel
6. foot pedal swtich

Specifications

Model	Thickness	Width	Motor	Dimension
W11G-4*1500	4mm	1500mm	2.2kw	2060*640*1050mm
W11G-3*2000	3mm	2000mm	4kw	2530*640*1050mm
W11G-3*1300	3mm	1300mm	1.5kw	1800*640*1050mm
W11G-4*1300	4mm	1300mm	2.2kw	1800*640*1050mm

Workshop
Packing & Loading
