Plastic HDPE PPR Pert Water Supply Gas Floor Heating Pipe Makiing Machine Intelligent Control System Plastic Extruder Extrusion Extruding Machine
Plastic PVC/UPVC/CPVC/HDPE/PPR/LDPE/ Pert Drip Irrigation/Conduit Cable/Layflat/Sewage Pipe Tube Extruder/Extrusion Bending Production Line Making Machine Price HDPE PE PP PPR PVC Pipe Making Machine Plastic Water Supply Energy Pipe Tube Production Line Extrusion Extruder Machine

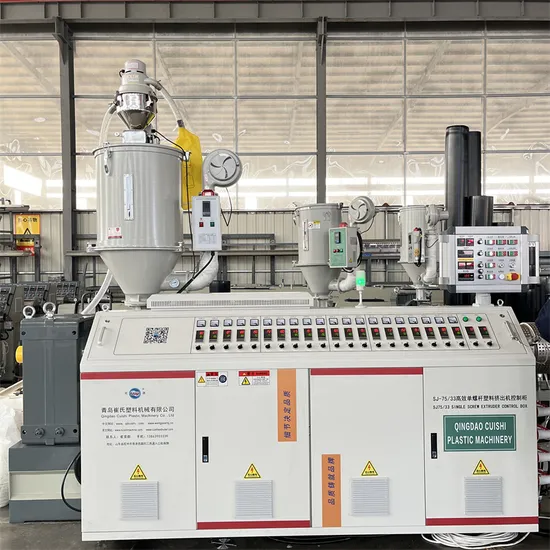

1 set of SJ65/33 single screw extruder
Main Technical Specification

PE/PP/PPR PIPE
Model	Pipe spec (mm)	Extruder	Max output (Kg/h)	Max Haul-off speed (m/min)	Extruder motor (KW)
CS-63	Ø20-63	ACM60/38	460	30	110
CS-110	Ø20-110	ACM60/38	460	30	110
CS-160	Ø40-160	ACM60/38	460	12	110
CS-250	Ø50-250	ACM75/38	600	8	160
CS-450	Ø110-450	ACM90/38	1050	5	250
CS-630	Ø160-630	ACM90/38	1190	2	280
CS-800	Ø400-800	ACM120/38	1300	1.5	355
CS-1200	Ø710-1200	ACM75/38	1650	0.8	160
CS-1600	Ø1000-1600	ACM90/38	2100	0.5	280

pipe making machine, extruder, machine, line, equipment, pipe production line, pe pipe production line, pe pipe making extruder.
plastic machinery
PE pipe extruder, pe pipe machine, pe pipe making machine, pe pipe extrusion machine, plastic pipe production line, pe pipe production line.
PE PPR pipe production line is mainly used for the HDPE, LDPE PPR water supply pipes, gas supply pipes, irrigation pipes, sewer water pipes making.
PE pipe production line major parts are all purchase the world famous brand products which ensured the high quality of the machines.
PE pipe production line purchase two kinds of control method: manual operation, PLC automatic control.
The whole production line include:
1. hopper dryer and vacuum loader
2. SJ series single screw extruder
3. pipe moulds
4. vacuum forming machine
5. spray cooling machine
6. haul off machine
7. no dust cutter machine
8. stacker or coil winder
Our main products: plastic pipe extrusion line, including large diameter PO solid wall pipe extrusion line, PPR / PEX / PERT / PB pipe extrusion line, PVC profile/pipe extrusion line, etc

Screw,barrel design and manufacturing Screw and barrel material:38CrMoAlA,nitriding treated Exclusive screw for PE material make sure good plasticizing effect adopt original famous electric components with high steady running quality . Gearbox: high torque, low noise, hard gear tooth face dedicated extruder gear box Self protective system: Over current protective of motor Over pressure protective of screw
General description	Main electric elements
	Output	Around 200kg/h
	Connect type of extruder and mould	Bolt connection
	Advantages	Main parts adopt top-rank brand Strict real time quality control
Screw	Diameter(mm)	65mm
	L/D	33/1
	Material	38CrMoAlA, Nitrogen treated
	Heating	Casting aluminum heater with stainless steel outer cover
	Heating segments	5 zone
	Heating power	30kw
Barrel	Barrel type	With feeding groove; Water cooling inlet orifice
	Cooling	Cooling by blower, temperature control accuracy: ±1ºC
	Cooling segment	5 segments
	Material	38CrMoAlA, Nitrogen treated
Drive and Transmission system	Main motor power(KW)	45kw motor brand
	Speed adjusting mode of main motor	Variable frequency conversion
	Rotating speed of main motor (r/min)	1500r/min
	Gear box	Hard gear tooth face Low noise design Material of gear: 20CrMnTi

1 set of mould for HDPE pipes with diameters

Item	Description	Unit	Remark
New type calibrator make sure good cooling effect and high speed extrusion
1	Diameter range(OD)	mm	20-110mm
2	Wall thickness	/	as per customer's request
3	Mould material	/	40Cr
4	Material of the calibration Bushing	/	Stannum Bronze copper

1 set of Vacuum Calibration and cooling tank

NO	Description	Unit	Remark
automatic water level control electric cabinet with water-proof protection forceful concentrated spraying water cooling with good cooling effect vacuum pump and water pump adopts intelligent pump with self protection function Perfect pipeline design can keep nozzle unblocked
Function: calibrate the outer diameters and cooling pipe primarily
1	Length of the tank	mm	6000
2	Material of water tank		stainless steel, SUS304
3	Sizing bushing material		Stannum-bronze
4	Cooling Mode		Spray-pouring cooling
5	Pouring areas		4
6	Water Pump Power	KW	1.5kw×2sets
7	Vacuum Pump Power	KW	4kw×1set
8	Vacuum Degree	Mpa	-0.03-0.05
9	Motion Range of Forward and backward	mm	±600, motor drive
10	Up-down Adjusting Range	mm	±50, by manual

7. 1 set of water cooling tank

NO		Description	Unit	Remark
1	Water tank length		mm	6000
2	Material of water tank		/	Stainless steel, SUS304
3	Cooling mode		/	Spray-pouring cooling
4	Water pump power		Kw	1.5kw×1set
5	Height adjusting		/	±50mm by manual

8.1 set of Hauling off Machine

NO	Description	Unit	Remark
Pneumatic clamping, variable frequency speed adjusting adopt famous brand cylinder
Function: haul off PE pipe stably and synchronal with extruder speed
1	Available pedrail length	mm	1400
2	Clamping Mode		Pneumatically
3	Speed Adjusting Mode		Frequency Conversion
4	Hauling Motor Power	KW	1.5kw*2set
5	Hauling Speed	m/min	0.5~8

1 set of meter counting cutter

NO	Description	Unit	Remark
PLC control,automatic dust free cutting, with meter counting function Saw blade adopts carbide blade
Function: cut HDPE pipe in fixed length
1	Cutter type		Automatic meter counting cutter
2	Suitable cutting pipe diameter		20-110mm
3	Cutting speed		Synchronization, automatic cut in fixed length
4	Motor power	KW	2.2
5	Material of Cutting Saw		Alloy steel
6	Clamping Mode		Pneumatically Drive
7	Cutting Control		PLC control
8	Maximum cutting thickness	mm	18
9	Suitable cutting speed	m/min	12

11. 1 set of stacker

Item	Description	Unit	Remarks
1	Length	mm	6000
2	Discharge	/	Pneumatic
Note : if you need PE pipe winder ,then please advise us
