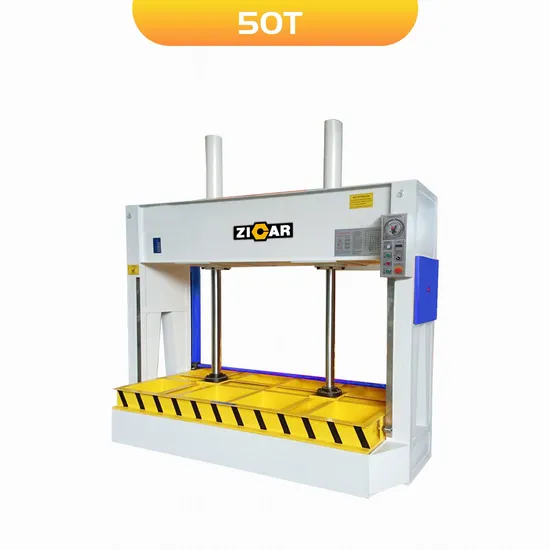

ZICAR Hydraulic cold press machine China Woodworking cold press machine 50T Precision Woodworking cold press Machinery

Product Description

ZICAR down to up cold press machine plywood JY32510*50
Product Description
1.Veneer.Due to the different types of glue used in the production of multi-layer solid wood laminate flooring, the main equipment for cold press veneering of composite floor.Compared with the hot press, the cold press does not need heating function for a long time and low cost.
2.Press molding: mainly flatten the board under the effect of pressure.

Product Parameters

Model	JY32510X50
Press platen dimensions	1500x3000mm
Max.total thrust	50t(1.1kg/cm²)
Pressure of hydraulic system	210kg/cm²
Max.platen opening	1000mm
Oil cylinder	125mm x 2pcs
	90mm x 2pcs
Hydraulic motor power	4kw
Overall dimension(LXWXH)	1500x3400x3000mm
Net weight	3500kg

Detailed Photos
Company Profile
FAQ
1.Our Payment term?
L/C and T/T or other ways.
2.Delivery Time?
30 days after down payment.We have our own forwarder and we have long term cooperation with each other and have closely relationship with each other,so there is no problem in shipment.
3.Our Warranty?
(1)One year guarantee from the delivery date of this machine under the normal operation of one shift per day.
(2)We will be responsible for the maintenance of damaged part which is under normal situation during warranty period, and all the round-trip courier transportation cost of damaged/repaired replacement parts in warranty period should be borne by the buyer. Wearing parts are not included.
(3)24 hour technical support by email or calling
(4)User-friendly English manual for machine using and maintaining
4.Our srvices?
(1)One-stop service, meet needs of the customers from individuals to international companies.
(2)OEM service accepted.
(3)Separate trading office: Jaya Trading with 30 experienced sales offering full scale service.
(4)After sale Service: experienced and knowledgeable team of technical support , provide engineer oversea service.
