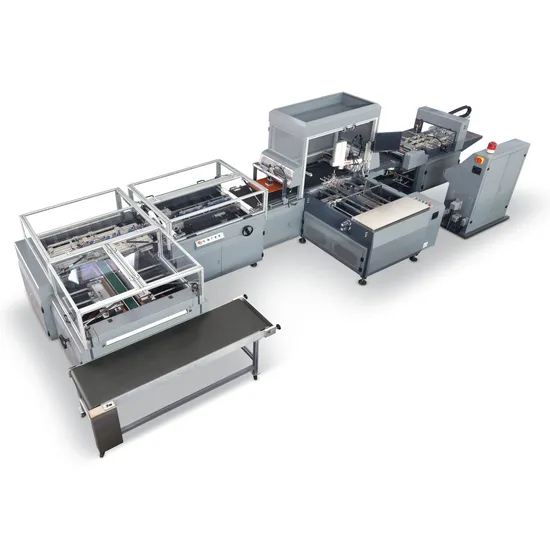

Automatic Customization Widely Used Book Cover Machine (QFM-460)

Product Description

I. the machine features automatic feeder paper feeding system, automatic paper pasting, automatic positioning, automatic paper folding, automatic forming and automatic tiding-up finished products. it is used to make prefect book covers, calendars, hanging calendars, files etc.
1. the feeder adopts back-push feeding system, which is controlled pneumatically and server motor.
2. the particular function of positioning and correcting an error for cardboard can make it locating on the cover sheet accurately, and the positioning error
brought by glue paper excursion is settled completely.
3. the air draft device of product line avoid powdery paper bend and air bubble, and its tail is equipped automatic smoother device.
4. the delivery table is a lifting table of automatic control, smooth delivery.
5. intelligent touch screen display and operate. it is more expediently, more directly for man-machine conversation.
6. it adopts Japan omron PLC intelligence software control system, automatic checking trouble, debugging is convenient and quick, decrease waste of raw and processed materials.

Model	QFM-460	QFM-600
Length of paper	230-830MM	230-1030MM
Width of paper	140-480MM	160-600MM
Thickness of paper	100-200g	100-200g
Thickness of cardboard	1-3mm	1-3mm
Min width of spine	10mm	10mm
Speed	25 sheets/min.	25sheets/min.
Power supply	18kw	20kw
Weight	2500kg	2800kg
Dimension	L7600XW2150XH1500mm	L9400XW2600XH1500mm
