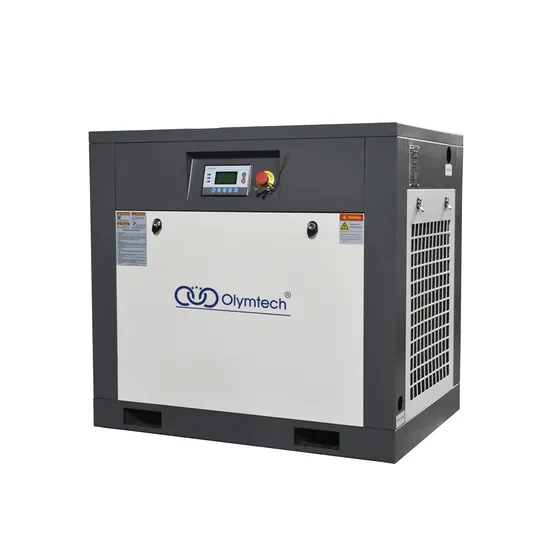

Olymtech China Best Quality 15kw 20HP 13bar Belt Drive Screw Air Compressor

Product Description

Product Description

Item	Olymtech 5.5kw Screw air compressor	Piston air compressor
Consumption	Compare with piston air compressor, screw air compressor more energy saving	Energy loss because mechanical wearing. Low speed, high comsumption
Consumbale parts	Air filter/Oil filter/Air/Oil Separator	much consumable parts, piston, ring, valve, etc
Noise	Low noise, cabinet with sound proof enclosure	no cabinet, very noise
Operation and maintenance	Automactically, easy operation and maintenance, controller with alarm function, suit for unattended operation	maintenance complicated
Compressed air quality	Low discharger temperature, oil content in the compressed air is ≤3ppm	higher discharger temperature, no air/oil separator, high oil content in the compressed air
Durability	Two rotor no wearing, stable air delivery, F.A.D and efficiency will not reduce although use a period of time	main parts easy to wearing, therefore F.A.D and efficiency will reduce after use a period of time

Item	Technical Parameters
Model	TF15-8	TF15-10	TF15-13
Power	15KW
F.A.D	2.0m3/min	1.9m3/min	1.8m3/min
Medium	Air
Rated pressure	0.8Mpa	1.0Mpa	1.3Mpa
Cooling method	Air-cooled
Transmission method	Belt drive
Air discharge temperature	Ambient temperature+15ºC
Control mode	Microcomputer control system
Start mode	Y-△ Start
Air inlet temperature	0~46ºC
Ambient temperature	-5~45ºC
Air inlet pressure	Natural air 1.033Kg/cm2
Motor rotation speed	2980r/min
Motor protection level	IP23
Motor insulation level	F level
Motor service factor	1.15
Power supply	380V-50Hz-3Ph
Maximum relative humidity	0.95
Air outlet connection	Rp3/4
Dimension	1080x750x1000mm
Net weight	306KG
Noise level	68±2dB (A)

FAQ
Q1: Why customer choose us?
O: Olymtech Technology Development Co, Ltd is a professional manufacturer for air compressor and after treatment equipment. We have more than 20 years experience in producing and exporting air compressor, air dryer and air filter. Q2: Are you a manufacturer or trading company? O: Our factory is located in Guangdong China, we have research and develop center, advanced processing equipment, professional technicians, rich experience workers and after-sales team to offer good quality products and good service to our customers. We also can provide you the OEM&ODM service. Q3: What's your delivery time? O: Generally 10 days, if urgently order, pls contact our sales in advance Q4: How long is your air compressor warranty? O: One year for the whole machine when the compressor leave our factory. Q5: How long could your air compressor be used? O: Generally, more than 10 years Q6: What's payment term? O: T/T, L/C, Paypal and etc. Also we could accept USD, RMB, Euro and other currency (Pls contact our sales for more information Q7: How about your customer service? O: 24 hours on-line service available Q8: How about your after-sales service? O: 1. Provide customers with installation and commissioning online instructions. 2. Well-trained engineers available to overseas service 3. World wide agents and after service available
