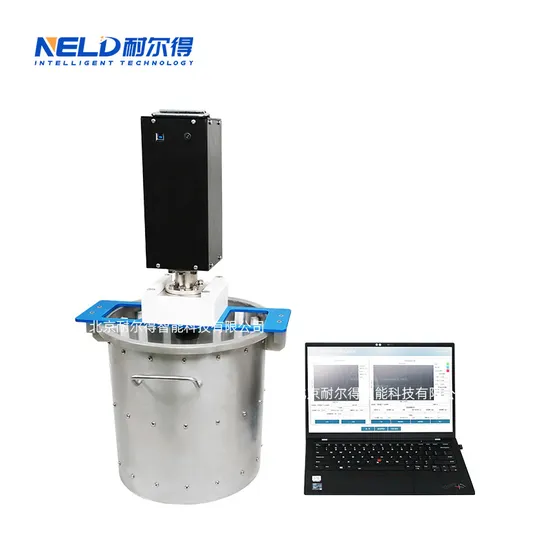

Testing Equipment ASTM C1874 Concrete Rheometer Price Portable Coaxial Rotational Rheometer

Product Description

Testing Equipment ASTM C1874 Concrete Rheometer Price Portable Coaxial Rotational Rheometer
Why need do ASTM C1874 Concrete Rheometer Testing?
1.Ensure Concrete Quality
The rheological properties of concrete are important indicators of its quality. By testing the rheological properties of concrete, the quality and service life of the concrete can be ensured.
2.Determine Concrete Applicability
For concrete with different applicability, it is necessary to determine its rheological capabilities through testing to establish its applicable range.
3.Facilitate Construction Projects
Testing the rheological properties of concrete allows for the development of corresponding flow control measures based on different construction needs (such as 3D printing construction), ensuring the construction quality of concrete.
4.Enhance Concrete Design Capabilities
Understanding the rheological properties of concrete can provide a foundation and guidance for the design of concrete structures, making the design of concrete structures more accurate and effective.
Techncial Sheet about Testing Equipment ASTM C1874 Concrete Rheometer Price Portable Coaxial Rotational Rheometer

Test Range	From low slump rate concrete to self-compacting concrete
Aggregate Range	Aggregate dimension ≤ 32mm
Slump Rate	Concrete slump 500mm~750mm
Impeller Rotational Speed	0.001rps-0.74rps (controllable)
Impeller Dimension	Diameter 125mm, height 125mm, 4pcs
Mixing Vessel Radius	158mm
Torque Test Range	0.001Nm-100Nm, accuracy 0.1%
Motor Type	DC motor
Minimum Torque	0.001Nm
Peak Torque	150Nm, 10s no longer than 10s
Continuous Maximum Torque	80Nm
Communication Interface	USB
Curve Type	Stress growth test and dynamic rheological curve test
Data Storage	Capable of storing, deleting, and searching curves and lists
Test Duration	>40s
Input Voltage	AC220V±10%

Looking for your enquiry if interested in Testing Equipment ASTM C1874 Concrete Rheometer Price Portable Coaxial Rotational Rheometer!!
