Meat Stuffing Emulsion Homogenizing Pump with Professional

Product Description

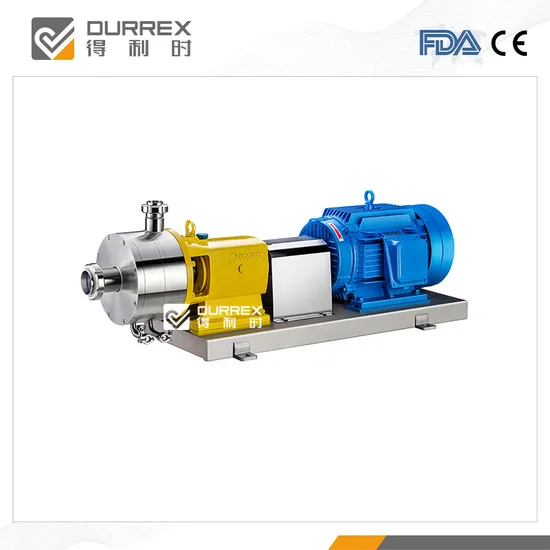

Meat Stuffing Emulsion Homogenizing Pump with Professional
The traditional processing can be replaced by this pump, to improve sanitary grade and emulsion effect.
DH series homogeneous & emulsification pump is composed of a first-class working chamber. The working chamber is equipped with a group of 3-6-layer stators and 3-6-layer rotors. The tooth discs of each stator and rotor are from coarse to fine, so that the original granular materials of different thickness can smoothly enter the working chamber for layer by layer crushing, dispersion, fine, homogenization and emulsification.There are 5 kinds of products in this series. Developed independently by our company, the application technology is very mature. We have a strong technical team and our users all over the world.
Product Features:
1. Homogeneous & emulsification pump is an efficient type product with mix, dispersion, breaking, dissolution, refinery, homogenization, emulsifying.
2. Non-blind area, high efficiency and energy-saving. Simple assembling and disassembling, easy to maintenance and clean.
3. The pump can be run circularly or in one time.
4. Different structure of stator & roto can be interchanged in the same pump type.
5. Different pump structure and rotor & stator can be selected depends on different working conditions.
6. According to requirement of user, cooling system as option for selection.


Working principle of homogeneous pump

Just as diagram form, homogeneous & emulsification pump comprises 1 to 3 stages, or 2 to 6 corresponding shearing stators and rotators. The pump will indraft medium into working chamber with rapid turning of the motor, then treat the medium with compound, dispersion, refinery and emulsion.

Technical parameters
Type	Rotation speed(r/min)	Flow(m3/h)	Pressure(MPa)	Power (kw)	Standard Inlet DN(mm)	Standard outletDN(mm)
DHX1-80B	960-2950	0.5-1	0.1-1.2	0.75-1.1	25	20
DHX1-100	960-2950	1-2	0.1-1.2	1.1-2.2	25	20
DHX1-120B	960-2950	2-5	0.1-1.2	2.2-3	50	40
DHX1-140B	960-2950	3-10	0.1-1.2	3-5.5	50	40
DHX1-165B	960-2950	5-15	0.1-1.2	5.5-11	65	50
DHX1-185B	960-2950	10-25	0.1-1.2	7.5-15	65	50
DHX1-200B	960-2950	15-35	0.1-1.2	11-22	80	65
DHX1-220B	960-2950	20-50	0.1-1.2	15-37	100	80
DHX1-240B	960-2950	30-65	0.1-1.2	18.5-45	125	100
DHX1-260B	960-2950	40-80	0.1-1.2	22-55	125	100
DHX1-290B	720-1450	50-100	0.1-1.2	22-37	150	125
DHX1-320B	720-1450	60-120	0.1-1.2	30-45	150	125
DHX1-350B	720-1450	80-150	0.1-1.2	37-55	200	150
DHX1-380B	720-1450	100-200	0.1-1.2	45-75	200	150
DHX1-430B	720-1450	120-250	0.1-1.2	55-90	250	200
DHX1-480B	720-1450	150-300	0.1-1.2	75-110	300	250
DHX2-80B	960-2950	0.5-1	0.1-1.2	1.5-2.2	25	20
DHX2-100B	960-2950	1-2	0.1-1.2	1-2	25	20
DHX2-120B	960-2950	2-5	0.1-1.2	2-5	50	40
DHX2-140B	960-2950	3-10	0.1-1.2	3-10	50	40
DHX2-165B	960-2950	5-15	0.1-1.2	5-15	65	50
DHX2-185B	960-2950	10-25	0.1-1.2	10-25	65	50
DHX2-200B	960-2950	15-35	0.1-1.2	15-35	80	65
DHX2-220B	960-2950	20-50	0.1-1.2	20-50	100	80
DHX2-240B	960-2950	30-65	0.1-1.2	30-65	125	100
DHX2-260B	960-2950	40-80	0.1-1.2	40-80	125	100
DHX2-290B	720-1450	50-100	0.1-1.2	50-100	150	125
DHX2-320B	720-1450	60-120	0.1-1.2	60-120	150	125
DHX2-350B	720-1450	80-150	0.1-1.2	80-150	200	150
DHX2-380B	720-1450	100-200	0.1-1.2	100-200	200	150
DHX2-430B	720-1450	120-250	0.1-1.2	120-250	250	200
DHX2-480B	720-1450	150-300	0.1-1.2	150-300	300	250
DHX3-80B	960-2950	0.5-1	0.1-1.2	2.2-3	25	20
DHX3-100B	960-2950	1-2	0.1-1.2	4-7.5	25	20
DHX3-120B	960-2950	2-5	0.1-1.2	7.5-11	50	40
DHX3-140B	960-2950	3-10	0.1-1.2	11-18.5	50	40
DHX3-165B	960-2950	5-15	0.1-1.2	15-30	65	50
DHX3-185B	960-2950	10-25	0.1-1.2	18.5-37	65	50
DHX3-200B	960-2950	15-35	0.1-1.2	22-45	80	65
DHX3-220B	960-2950	20-50	0.1-1.2	37-75	100	80
DHX3-240B	960-2950	30-65	0.1-1.2	45-90	125	100
DHX3-260B	960-2950	40-80	0.1-1.2	55-110	125	100
DHX3-290B	720-1450	50-100	0.1-1.2	45-90	150	125
DHX3-320B	720-1450	60-120	0.1-1.2	55-100	150	125
DHX3-350B	720-1450	80-150	0.1-1.2	75-160	200	150
DHX3-380B	720-1450	100-200	0.1-1.2	90-220	200	150
DHX3-430B	720-1450	120-250	0.1-1.2	110-280	250	200
DHX3-480B	720-1450	150-300	0.1-1.2	160-315	300	250
