Handheld Pocket Size LCD Display Digital Multimeter with Ce RoHS
| US$14.50 | 50 Pieces (MOQ) |
Basic Info.
Model NO.
HT-118A
Theory
Electronic Meter
Power Source
AC and DC
Maximum Scale
1999
Range Conversion Type
AUTO RANGZ
Additional Measuring Item
Capacitance
Display
LCD
Power
2*AA Battery
Temperature
-40 to 1000 Celsius
Weight
Approx.350g
Safety Rating
En61010-1,-2-030,En61010-2-033,,En61326-1, Catiii
Duty
1%~99%
Counters
6000 Counters
Transport Package
Carton
Specification
188mm*88mm*58mm
Trademark
HOTOTECH
Origin
Dongguan/China
HS Code
9030320000
Production Capacity
5000 Set a Month
Product Description
6000 Counts Digital Multimeter WIth T-RMS/Autorangeproduct feature
-resistance measure up to 60mΩ with continuity detection
-large dual backlight diaplay with 6000 counts
-voltege measurement
-up to 10MHz frequency detection
-Auto power off
-low battery indication
-double color backlight
-the data hold

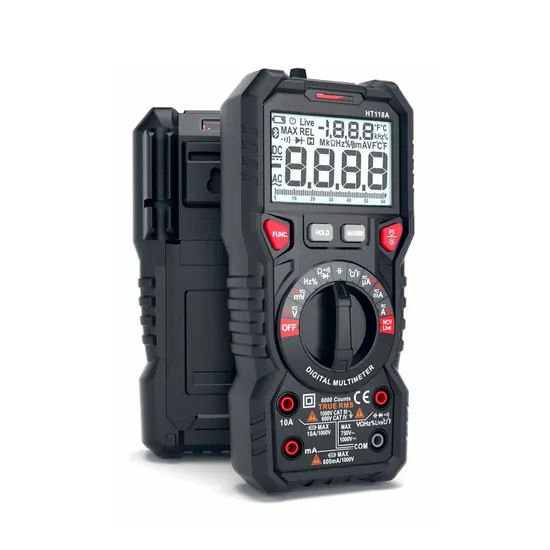

product image
the display
specifications
| Specifications | Range | Accuracy |
| HT118A | ||
| DC Voltage | 600mV | ±(0.5%+3) |
| 6V/60V/600V/1000V | ±(0.5%+3) | |
| AC Voltage | 600mV | ±(1.0%+5) |
| 6V/60V/600V/750V | ±(1.0%+5) | |
| DC Current | 600uA/6000uA/60mA/600mA | ±(0.8%+3) |
| 6A/10A | ±(1.2%+3) | |
| AC Current | 600uA/6000uA/60mA/600mA | ±(1.0%+3) |
| 6A/10A | ±(1.5%+3) | |
| Resistance | 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ | ±(0.8%+3) |
| Capacitance | 10nF/100nF/1uF/10uF/100uF/1mF/10mF | ±(4.0%+3) |
| 100mF | ±(5.0%+5) | |
| Frequency | 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz | ±(1.0%+3) |
| Duty | 1%~99% | ±(1.0%+2) |
| Temperature(ºC/ºF) | -40ºC~1000ºC | ±(1.0%+3) |
| -40ºF~1832ºF | ±(1.0%+3) | |
| Counts | 6000 Counts | |
| Auto/Manual range | Auto | |
| Display | LCD dual display | |
General
Power supply:2xAA batteries
Product size:188mm*88mm*58mm
Product weight:Approx.350g
Safety rating:EN61010-1,-2-030
EN61010-2-033
EN61326-1
CATIII 1000V
CATlV 600V
Company Profile
Introduction
visit customers
certificate
product package
FQA
-Do we support OEM or ODM?
-Will the original R&D manufacturing plant have a price advantage?
-Are our products high quality products?
-Do we have a good team?
-Does our product support global after-sales service?
-Are our products certified?
every answer is "YES"!
