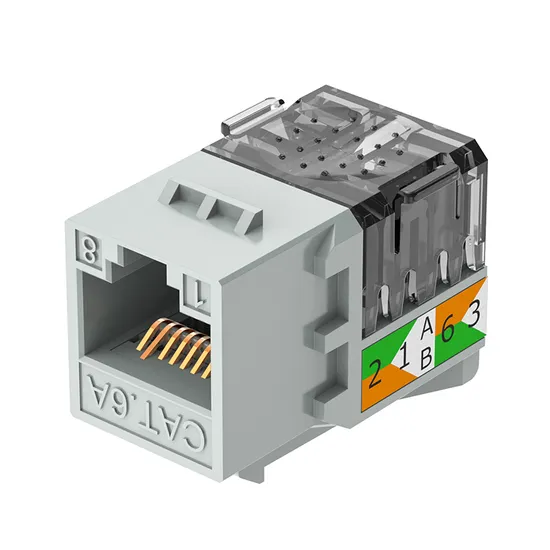

Networking Cat5e CAT6 CAT6A UTP Keystone Jack 90 Degree

Product Description

Product Description

Product Name	Slim type 90 degree keystone jack rj45 cat5e utp
Material	PC UL94V-0
Port	RJ45 available
Category	Cat.5e/6 available
Color	white
Golden plated	3u"-50u"
Standard	ISO/IEC11801 ,TIA/EIA-568B.2-1, EN50173
Used	Data center, working area, managing room , equipment room , etc

1. Technique Characteristics
• Material of plastic parts: PC UL94V-0
• Standard 110 punching tool, compatible with T568A/T568B
• According to the standard of ISO/IEC 11801 & TIA/EIA 568-B.2 Cat.5e
• Golden plated Pins, IDC clips and internal PCB board match well and provide best performance
• Whole Pin nickel plated with connect pins golden plated 6μ prevent oxidation, lasting the service life
• IDC clips: Tinned phosphor bronze nickel plated with dependability 250 times
• Termination caps prevent dust and wire from dropping off
• Slim design makes it matched with prevailing blank patch panel

2. Electrical Characteristics
• DC Resistance: ≤300mΩ
• Contact Resistance: ≤20mΩ
• Dielectric strength: 1000V(AC750V)1min no break down and flashover
• Insulation Resistance: ≥1000MΩ

3. Physical Characteristics
• Phosphor bronze with nickel plated , connector pins with golden plated
• IDC clip: Tinned phosphor bronze pins with nickel plated, fitting for 22-26AWG cables
• Inserting Duration: ≥750 times
• Punching Duration: ≥250 times
• Termination caps material UL94V -0
• Working temperature: -25ºC~60ºC

4. Standards
• ISO/IEC11801
• TIA/EIA-568B.2-1
• EN50173
•UL 94V-0

5. Application
• Structured cabling transmitting data ,voice, video
• Applied for Cat.6 and E Classes
• Suitable for working area, central room, managing room, equipment room and subsystem applications
