Rbt Luggage Vacuum Making Machine/Double Stations Luggage Thermoforming Machine

Product Description

Products Description:

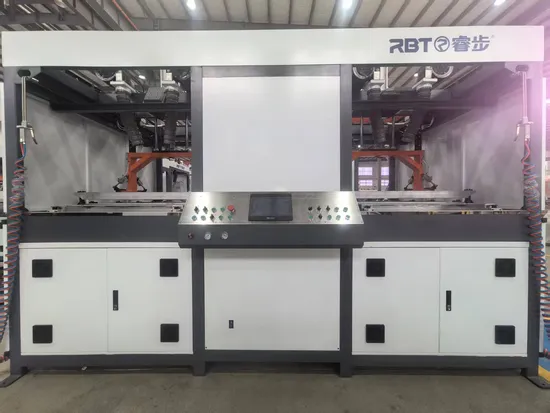

Double Stations Luggage Thermoforming Machine
RBT's Luggage Vacuum Forming Machine adopts PLC control, hydraulic drive, and is equipped with upper and lower heating elements, which
enhances the durability and impact resistance of the luggage. Suitable for sheet forming of ABS, PC or recycled materials. The machine can be
customized according to customer requirements.
Parameters:

RB-A8-20/24/28 Luggage vacuum forming machine Model RB-A8-20 RB-A8-24 RB-A8-28 Sheet Material and Thickness ABS,PC etc;1-4mm Input power 380v±10%,50HZ Vacuum capacity (M³) 0.2M³ 0.3M³ 0.35M³ Vacuum pressure (MPA) -0.07 ~ -0.09MPA Air pressure (MPA) 0.65-0.75MPA Air consumption (L / MIN) 550L/MIN 650L/MIN 800L/MIN Total machine power (KW) 39.5KW 49KW 55KW Working power (KW) 35KW 44KW 50KW Power copper wire model 16mm2 16mm2 25mm2 ABSABS case max. output (pcs / H) 110 105 90 PCPC case max. output (pcs / H) 85 80 70 Machine Type 20inch 24inch 28inch Maximum mold size (L*W*H ) 600*420*200MM 690*510*200MM 780*600*200MM Maximum sheet size (L*W*H ) 730*550MM 830*650MM 930*750MM Maximum frame size (L*W) 680*500MM 780*600MM 880*700MM Machine weight (T) 2.0T 2.0T 2.1T Overall dimensions(L*W*H ) 3000*1700*2450MM 3300*1700*2450MM 3600*1850*2500MM

Product Show:
• Double-sided heating, matte finish
• High safety with anti-pressure setting
• Low noise level (silent technology)
• Omni-directional cooling fan
• Individual control system
• Two working modes andTwo Chambers
• PLC screen and Cooling system
• Preheated system and Heaters
• CE & ISO9001 certification


Machine Advantage Features:
1. Precision Molding: Ensures accurate and consistent shaping of suitcases, resulting in high-quality end products.
2. Versatility: Capable of processing a variety of materials, including ABS, PC, and polypropylene, making it suitable for diverse luggage designs.
3. High Efficiency: Streamlined production processes reduce manufacturing time, increasing overall output.
4. Cost-Effective: Reduces material waste and labor costs through efficient design and automation, leading to lower production costs.
5. User-Friendly Interface: Many machines come equipped with advanced control systems that make operation and adjustments easy for operators.
6. Durability: Built with robust materials and engineering, these machines offer long-lasting performance and reliability under continuous use.
7. Customizable Designs: Offers flexibility for producing various suitcase styles and sizes, accommodating unique customer requirements.
8. Environmentally Friendly: Some models are designed with energy-efficient features and the capability to work with recyclable materials, reducing
the environmental impact.
9. Rapid Production: Facilitates quick changeovers and setup, allowing manufacturers to respond swiftly to market demands.
10. Advanced Cooling Systems: Helps in maintaining optimal temperatures during the forming process, ensuring higher quality and consistency in the final product.
Scope of Application:
RBT luggage vacuum forming machine suitable for vacuum formingof trolley cases such as PC, PC/ABS, ABS, PE, etc.. It is special for processing
Suitcase/Luggage/Trolley case shell professionally with fast speed and high good quaility.
Application industry:Luggage industry Freely contact us for your luggage suitcase business start

About Us:
Fujian RBT Intelligent Equipment Co., Ltd.

RBT MACHINERY is a leading provider of integrated equipment
solutions for the luggage manufacturing industry. We specialize in R&D, manufacturing, sales, and technical services, offering advanced machinery that boosts production efficiency more than 20 years.
Choose RBT MACHINERY, Let's achieve luggage intelligent manufacturing together.
Our key products include:
Extruder Sheet Machines
Luggage Vacuum Forming Machines
CNC Cutting Machines
Intelligent Assembly Line with Industrial Sewing Machines
Unique fully automatic luggage production line etc
Partnering with globally luggage manufacturers, we are recognized for
quality&innovation and certified with CE and ISO9001:2008 standards.


After Sales Service:
Installation training (3 options) :A. We will provide installation, operation, maintenance and troubleshooting training videos and user manuals in English, as well as technical guidance via email, fax, phone /Messenger/WhatsApp, etc. if you encounter problems with installation, use or adjustment.
B. You can come to China for training. We will also provide accommodation during the training.
C. China's strong after-sales service team. Our engineers (staff) can speak English to communicate and solve problems. Flights can also be arranged.
Training time: 3-7 working days (recommended).For installation, commissioning & training (maintenance and operation of the machine) to the user's personal work site, it shall be provided free of charge by the supplier. The Supplier's airfare (round trip), food, accommodation, local transportation, translation, Internet, communication and visa costs at the Buyer's site shall be borne by the Customer in accordance with the actual documents.
Certificate:
Some Cooperation Customers:
Exhibition:
Packing&Shipping:
1.Plastic film packaging and put in plywood wooden cases or according to customer's requirements.
2.Shipping : Container transport.
FAQ:
Q1. When was your factory established?We have been specialized in the R&D, manufacturing and intelligent manufacturing solutions of CNC Machining since 2000, mainly focusing on CNC Machining for plastic luggage suitcase, thermoformed plastic, composite parts, patterns & moulds, aluminum/ paper honeycomb, and soft metal like aluminum/brass/ zinc from R & D, design, production, sales to after-sales technical service.Q2. What should I do if there is a problem with this machine during the warranty period?The quality assurance period is 12 months from the date the goods arrive at the destination port. Except for man-made damage, we are responsible for providing accessories free of charge during the warranty period. After the quality assurance period, if you need to repair or replace parts, you must pay.Q3. How to install and use?We will provide training videos and English user manuals for installation, operation, maintenance and troubleshooting for the machine. When you encounter installation, use or adjustment problems, we will provide technical guidance by email, fax, telephone/Messenger/WhatsApp, etc.Q4. What should I do if there is an after-sales problem?You can directly describe your problem to the after-sales staff. China's strong after-sales service team. Our engineers (employees) can communicate and solve problems in English, and can be arranged once a day per person when you need it. If I need to go to your place to help, I will quickly arrange to go there and quickly fly to help you.Q5. How about wholesale price?If you are a wholesaler, distributor or agent, please contact us to get wholesale price.
