Rongdu Mould OEM Logistics Plastic Custom-Made Crate Mold

Product Description

CHINA RONGDU MOULD Logistics Plastic Crate Mould

Rongdu Mould Fruit Vegetable Seafood Tool Logistics Transportation Turnover Logistics Stackable Folding Storage Plastic Crate Container Box Template, Pallet box mould, plastic injection mould, pallet container mould, logistics injection pallet container box mould, bulk container box mould, plastic egg box mold, crate mold, container mold manufacturer.


Product Description

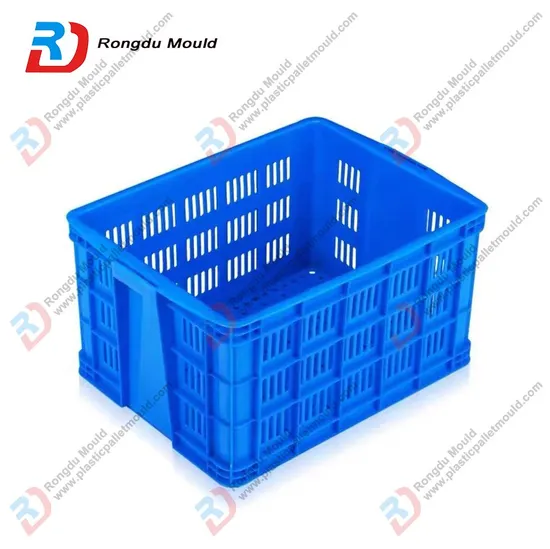

Product Name	Vegetable & Fruit Crate Mould
Product Size	690*410*490mm
Product Weight	3.3KG
Cavity Number	Single Cavity
Plastic	HDPE,PP
Design Program	NX(UG), Auto CAD, Solid Works

Mould Description

Mould Size	1200*800*950mm
Mould Cavity	Single Cavity
Mould Steel for Cor/cav	Nitrided & Heat-Treated & Hardened Steel HP20,H718,2738
Mould Steel for Slider/Insert Block	Nitrided & Heat-Treated & Hardened Steel HP20,H718,2738
Mould Steel for Basement	Nitrided & Heat-Treated & Hardened Steel S50C, S45C
Mould Raw Material Treatment	Nitridation, Quencher, Heat-Treated, Pre-Hardening

Injection System	6 Tips Hot Runner
Gate Type	Direct Gate
Hot Runner System	YUDO, Mold Master, Chinese Brand
Cooling System	Beryllium-Bronze Insert & Water Cooling
Ejection System	Stripper
Mould Surface Treatment	Texture or High Gloss Polishing
Hydraulic Slider	JUNFAN made in Taiwan
Mould Spare Part	DME or HASCO Standard
Mould Tooling Tolerance	±0.1mm
Mould Cycle Time	60S
Mould Life	500K shoots
Mould Guarantee	1 year

Hot Sales


Mould Delivery Description

Mould for T1	55 days
Mould Deliver Time	60 days
Mould Installation	Fixed
Mould HS CODE	8480719090
Package	Wooden Case, mould would be Fixed inside
Transportation	By Air or By Sea
Payment	T/T, CIF

Company Profile
1. Background
Rongdu Mould is one of the Pioneer for plastic injection mould manufacturer. The Originator of us have making mould since 1985 year and accumulated abundant experiences. So we are specialized for manufacturing all kinds of plastic injection mould, especially for Crate Mould, PLASTIC PALLET MOULD, Plastic Chair Mould, Industrial Waste Bin Mould, Plastic Warehouse Mould etc.
Rongdu could manufacturer more than 600 sets of plastic mould annually, including 50 sets of CRATE MOULD, like Foldable Plastic injection Crate mould, Vegetable Plastic injection Crate mould, Storage Plastic injection Crate mould, Plastic injection Milk Crate mould etc.
"Making Mould More Valuable " is our final achievement. We focus on the MOULD QUALITY & DELIVERY TIME, providing stable mould within shortly time for each customer. So Rongdu Mould won good reputations from our old regular customer, and become one of leading for PALLET MOULD MANUFACTURER.
2.Advantages
A. Rongdu have Strong Design Team
For every new mould project, we would have a meeting to discuss all detail information, After product design will be confirmed, we would make the mould design and Mold Main Flow Analysis, in order to give customer reasonable suggestions and find best solution.
B. Rongdu have strict Mould Testing Standards
a. We would test every mould raw material, ensure the mould raw material quality.
b. We would checkout the mould Tooling processing, in order to make the each part of the mould could have precising dimension.
c. Our Assemble Mould Worker have more than 10 years working experience, we are familiar with all details.
C. Rongdu have Fast Mould Delivery Ability
Mould prompt be shipment is our most advantage, we take high attention and responsibility for customer demand, shipping each set mould timely to customer country.
3.Service
Rongdu mould not only sale the mould to customer, we pay highly attention Pre- & after- service. We would discuss with customer together, like product structure, analysis demould feasibility, analysis mould main flow. And we would have a meeting before the mould manufacturing, in order to support more valuable suggestions for our customer.
FAQ
1Q:Are you mould manufacturer?
R:Yes, Rongdu Mould company is established 1984 which specialized in making injection mould.
2Q:What type of molds do you produce?
R:We have many types of molds, including Pallet Mould, Crate Mould, Dust Bin Mould, Double-colour Mould, Auto Mould, Household Mould, Logistics Box Mould and so on.
3Q:How about the quality of your company's molds?
R:The quality of our company's molds is excellent, and we focus on manufacturing high quality injection mould. We have experienced mold designers and skilled mold engineers.
4Q:How long of the mould warranty period?
R:The mould warranty period for 1 year and mould parts will send to you for free.
5Q:How can I install these mold?
R:We will send you the installation procedures including the video or picture for you reference.
6Q:What are your strengths?
R:We are factory direct supply, you can get competitive prices and quality products.
