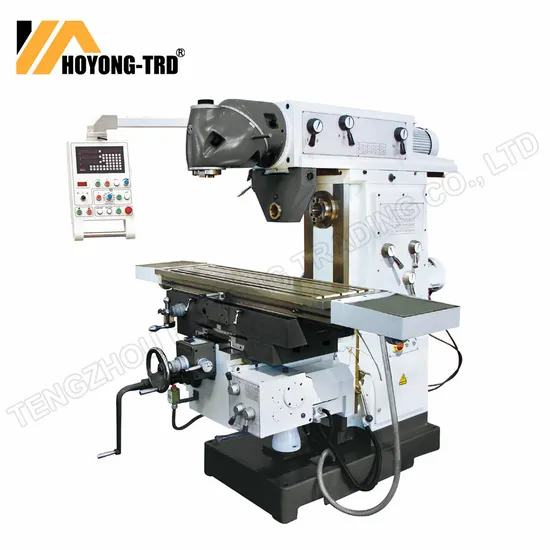

Rotary Swivel Head Vertical Freasadora Manual Universal Milling Machine X6436
| US$4,000.00-6,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
X6436
Type
Worktable Milling Machine
Object
Tool
Structure
Desktop
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Overall Welding Tooth
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
High Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Transport Package
Plywood Case
Trademark
HOYONG-TRD
Origin
Shandong, China
HS Code
84595900
Production Capacity
10 PCS/Month
Product Description
UNIVERSAL SWIVEL HEAD MILLING MACHINE FEATURES:
machine frame features heavy ribbing and torsional rigidity
wide. rigid, hardened guideways ensure maximum stability and constant accuracy
large, wide, supported table rotates ± 35°
the vertical cutter head swivels (manually) on 2 levels allowing virtually any angle setting
large spindle taper ST 50 ensures high rigidity even when using very large tools
all gears and shafts are hardened and ground
all electric components are made by leading manufacturers
vertical and horizontal spindles have their own drives, resulting in low-loss performance and shorter rejig times
automatic feeds and rapid feeds on all 3 axes
all hand-wheels (including for X axis) are placed at the front within the operator's reach
the control panel is mounted on a swivel boom for optimum positioning
central lubrication for low-maintenance operation
SPECIFICATIONS:
| SPECIFICATIONS | X6436 |
| Table size | 1320×360 |
| Table travel | 1000×300 |
| Number/Width/Distance of T-slot | 3-14-95 |
| Spindle taper | ISO50 |
| Distance between spindle axis and table surface | 0-400 |
| Distance between spindle axis and ram surface | 175 |
| Spindle speed range(steps) | 58-1800 60-1750 |
| Table power feed speed range in longitudinal, transverse and vertical directions | 22 - 420(X)22 - 393(Y)10 - 168 (Z) |
| Swivel angle of table | ±35° |
| Ram travel | 500 |
| Spindle motor power | 4 |
| Overall dimension (L×W×H) | 2070×2025×2020 |
| Machine weight | 2480 |
