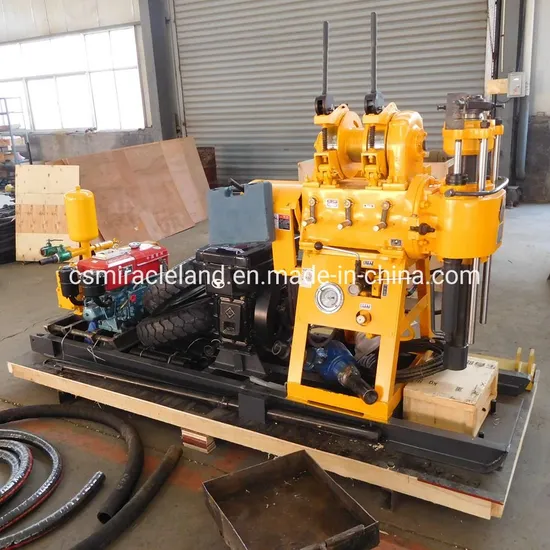

200m Wheel Trailer Mounted Hydraulic Bore Water Well Drilling Rig (XY-200Y)
| US$6,000.00-7,800.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
XY-200Y
Certification
ISO 9001:2000, ISO 9001:2008
Condition
New
Motor
Diesel Engine
Drill Hole Diameter
76-500mm
Drill Hole Depth
>200m
Bit Type
Drag Bit
Drilling Way
Rotary
Type
Vertical Shaft Type
Features
Wheel Trailer Mounted
Engine Brand
Changchai or Shifeng
Vertical Axis Speed
64-800 R/Min
Transport Package
in New Strong Wooden Case by Exporting Standard
Specification
200
Trademark
XY
Origin
Changsha, Hunan, China
HS Code
8430691900
Production Capacity
20 Sets/Month
Product Description
XY-200Y Hydraulic Drilling Rig:1, this drill for the high-speed drilling machine is suitable for the exploration, geophysical exploration, road and building exploration and blasting hole drilling engineering, etc.
2, can be selected according to the underlying different alloy, diamond, compact drill for drilling, etc.
3. The rig using a mechanical drive, rotary structure, rotary torque, long life;
4. Four groups of vertical shaft box bearings positioning gyrator has sufficient rigidity response to the gravel layer, gravel layer, and the complex geological conditions;
5. The machine adopts the taper of the national patent clutch, with a large torque, easy to operate, the salient features of the maintenance-free;
6. The machine equipped with a flow rate of 160L/min one mud pump, with cost savings, compact, mobile and lightweight;
7. Rig bulk portfolio, the whole removable nature, transportation, relocation convenience, and not subject to topography constraints;
8. Rig manipulation, the use of performance, easy maintenance, less investment and quick.
Technical Parameters
| XY-200Y Drilling Rig Parameters | |
| Drilling depth | 200m |
| The largest hole diameter | φ75-φ325mm |
| Final hole diameter | 75mm |
| Active drill pipe | 53/59*4200mm |
| Drill rod diameter | φ42-φ60mm |
| Drilling inclination | 90°~75° |
| Supporting power (diesel engine) | 14.7kW/r/min |
| Structure weight / size | 2.7*0.9*1.5 |
| Vertical axis | |
| Vertical axis speed | 64/128/287/800r/min |
| Maximum torque | 2000N.m |
| Vertical axis travel | 450mm |
| Hoist | |
| Single rope lift force | 2500 |
| Single rope to enhance speed | 0.12-0.95m/s |
| Reel diameter | φ140mm |
| Rope diameter | φ12.5mm |
| Rope capacity | 35m |
