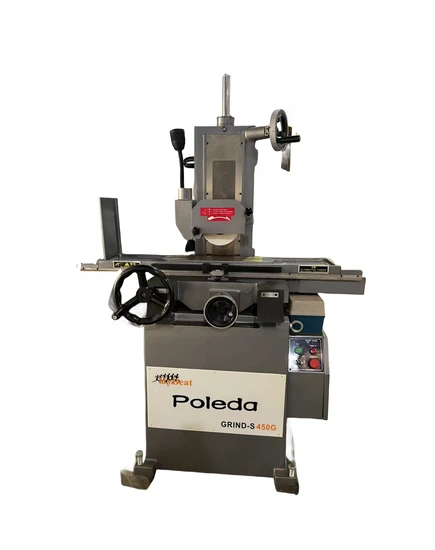

Direct Sales M618/618/618h/618s Surface Grinder with Multifunctional Capabilities for Precision Grinding

Product Description

Product Description
Product Parameters
Mechanical Properties
Machine Structure: Our advanced surface grinder's main castings are meticulously crafted from premium-grade cast iron. Undergoing a thorough annealing process, they are designed to eliminate internal stress, ensuring unparalleled precision and rigidity, effectively prolonging the machine's lifespan. Slide Way: Featuring dual V slide ways both left-right and front, the machine employs wear-resistant resin TURCITE-B. Precision hand-scrapped for smooth, wear-resistant operation, it is exceptionally suited for both forming and grinding tasks.
Cylindrical Straight Spindle: The heart of the machine, the spindle, is equipped with P4 ultra-precision angular contact roller bearings. This setup guarantees low noise and vibration, while providing high torque even at maximum speeds. Ideal for heavy-duty cutting and a variety of intricate grinding applications.
Automatic Lubrication System: Our innovative machine integrates a circulating automatic lubrication system. Once the main spindle activates, lubricating oil circulates instantly, ensuring forced lubrication for every screw and slide way, significantly reducing wear. An oil mirror is strategically placed above the column to continuously monitor lubrication status.

Product Name
Product Name		Grinding machine
Product model		M618/618/618S/618H
Product technical parameters
	1 Table size		150*450MM(6*18'')
	2 Maximum grinding length		475MM(18-3/4'')
	3 Maximum grinding width		160MM(6-1/3'')
	4 Distance between spindle center and table surface		350-400MM(13.8-15.7'')
	5 Standard disk size		150*350MM
	6 Left and right feed/manual stroke		485MM(19'')
	7 Front and rear feed/manual stroke		160MM(7'')
	8 Hand wheel feed (per turn)		5MM(0.2'')
	9 Hand wheel feed		0.02MM(0.001'')
	10 Lift feed/hand wheel feed per scale		0.005MM(0.0002'')
	11 Grinding wheel size (diameter * width * aperture)		180*16*31.75MM(7*2/3*1-1/4'')
	12 Spindle speed (50/60HZ)		2800RPM
	13 Spindle motor		1.5HP
	14 Weight (approximate)		800kgs
	15Machine size (L * W * H)		1350*1050*1850MM
	Grinding machine configuration	Accessories name and specification		quantity
	Standard parts for machine tools	1,Grinding wheel and flange		1
		2,Wheel removal wrench		1
		3,Hexagonal wrench		1
		4,Leveling screws and foot pads		1
		5,Grinder guide oil		1
		6,Toolbox and adjustment tools		1
		7,Hanging rings		1
		8,Grinding wheel		1
	Special parts for machine tools	9,Grating electronic ruler		1
		10,Detail disk		1

Detailed Photos
Our Advantages
Packaging & Shipping
Certifications
FAQ
1.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo and so on.For some normal items, we have in stock, the MOQ is 1 set.
2.How to control the quality of the products?
A.We have always placed great emphasis on the quality level is maintained.Moreover,the principle we always maintain is "to providecustomers better quality, better price,and better service".
3.What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Machine, Lathe Machine , Milling Machine,Grinding Machine ,Vertical Machining Center ,DrillingMachine ,Radial Drilling Machine ,Sawing Machine and so on .
4. What is your trade terms?
A :Ex-works FOB, CFR and CIF all acceptable.
5.What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
6.What CNC system do you use?
A:FANUC, SIEMENS, MITSUBISHI, SYNTEC, HCN .It depends on your choice.
7.How can I choose the most suitable machines?
A:Send us the products drawings and applications ,we will choose the most suitable machines for you.
8.what kind of package do you offer?
A.Normally in plywood case, to make sure all goods in good condition. Customized package can be acceptable.
9.Can your plant do OEM?
A:Yes it is no problem. We can do OEM and ODM for any customers 10.How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for mac
