PVC Marble Sheet Extruder Production Line Machine for The PVC Marble Sheet Making
| US$66,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
SJSZ80/156
Board Layers
Single Plate
Screw No.
Double-screw
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Customized
Customized
Condition
New
Button
Schneider
Mould for Sheet/Board
T Type
Inverter
ABB
Control System
PLC Control System
After Sale Service
Life Long with Professional After Sale Team
Machine Color
as Request
Extruder Type
Sjsz-80/156
Screw
Conical Twin Screw
Cooling Method
by Air
Transport Package
as Export Standard for Plastics Machine
Specification
ISO9000 CE
Trademark
SUKE
Origin
Qingdao China
HS Code
8477800000
Production Capacity
100sets/Year
Product Description

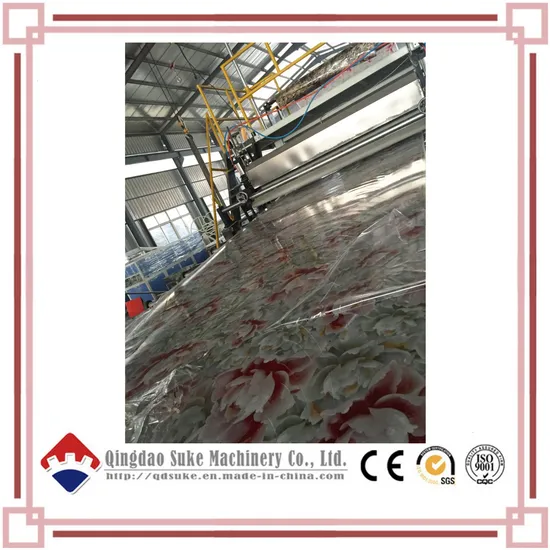

PVC Marble Sheet Production Extrusion Line (SJSZ80x156)MACHINE INTRODUCTION:
PVC marble board is widely as widely used as decorative.As high quality decorative sheet, it use medium density PVC microlite as raw material, copy the marbling on the surface by UV photocuring technology.It looks like real marbie,has smooth surface, and high reflective rate.
MACHINE FEATURES:
This line has the features of compact structure, high performance.After special design, screw and barrel has the features of uniform plasticization, stable extrusion capacity, high output, long service time.Barrel adopts cast aluminum heating ring, fan cooling and precision temperature control system.Calander can adjust the sheet shape and keep product in good situation by precision design.Cutting machine has meter counting device, and cut the board in right with no error.
PRODUCTION PROCESS:
500/1000Mixer→Auto loader→SJSZ80/156 conical twin screw extruder →Mould→
Three calender(online laminating) →Cooling group rollers→Hual off machine→ Transversal cutter
→Edge cutter→ Conveyor→UV treatment.
MACHINE TECHNICAL SHEET:
Model | SJSZ80/156 |
| Screw diameter mm | φ80-156 |
| Motor Power kw | 55 |
| Heating power kw | 36 |
| Screw rotation speed r/min | 1-32 |
| Output per day t | 8 |
| Board Specification mm | 1220x2440 |
| Total Power kw | 150 |
| Equipment List: |
| Double Screw Extruder (with screw feeder) 1 unit Mould(T-Die) 1 set Vacuum Calibration Table 1 unit Thermal Printing Machine 1 unit Haul-off Machine 1 unit Cutting Machine 1 unit Stacker 1 unit Optional Auxiliary Machine; Crusher 1 unit Mixer 1 unit Pulverizer 1 unit Air Compressor 1 unit |
| Trade Terms |
| Payment Term: 30% for prepayment by T/T, 70% for balanced payment by T/T, or L/C can be acceptable Delivery Time: 40 days after receipt of prepayment. Packing Method: Packing film or wooden case, 1*20 GP, 1* 40 GP. Guaranteed Time: 12 months |
| Machine Test and After Service |
| When machine finished, we will invite client come to our factory to check the machine and do the machine test. If machine is ok, then client pay for the balance. And inspect machine load the container. When machine arrives client's factory, if client needs, we will send 1-2 engineer to client's factory do the machine installation and running test, and also train the local worker how to operate and maintain the machine. It is chargeable. |
