Automatic Panel CNC Carbon Steel Stainless Steel Aluminum Press Brake Bending Machine for Metal Sheet

Product Description

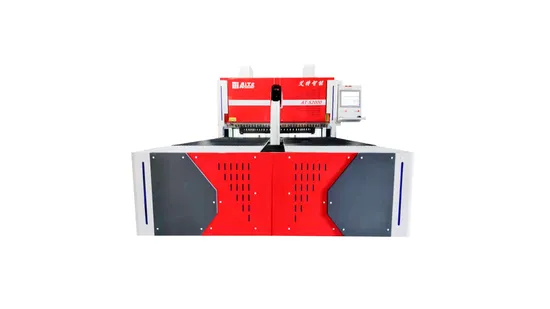

AIOTEK BENDING:AT-s2000 Panel bending center Full electric SERVO CNC Intelligent and Flexible Bending Center
This bending center can be intelligent and flexible to bend sheet metal panel's edges as per complecated combinations of various angles of edges , continuously bending up and down without replacing bending tools .
The whole machine includes four main parts:
(1). Bottom fabricated and welded heavy structure,which is integrally fabricated and holistically welded with super high-strength steel, ,which make the machine have a huge tonnage weight and stable gravity center.These features can ensure our machine have a long-term stability of bending accuracy, better reliability and good durability . the whole structure bodys also are treated by heat treatment such as stewing technology, tempering treatments,which make the struture have a strong rigidity and remove internal stress , stress relief ,specially prolong and extend the service life of machine and improve its positioning precision
(2). Upper fabricated and welded heavy sturcture, with pressing blades and hinge blades,which is fabricated ,welded and treated as same as bottom structure.
(3). The mobile fabricated and welded heavy bracket for bending blades of upward and downward ,which is fabricated ,welded and treated as same as bottom structure.
(4). Feeding system: Suction-cups plate to control and operate the sheet metal panel flexibly.
(5). Worktable also has enough hard brushes and rolling stainless steel beads to protect sheet matel panel when processing .Bending center machine has below outstanding merits : 1. Simple bending program and easy to understand, operate,flexibly and easily complete various complex bending workpieces.
2. Fast and convenient ,high degree of auotmation with manipulator,
high precision of processing.
4. Obviously Save a lot of labor and tool costs in processing than the traditional press brake .
5. SERVO systems for energy saving and high efficiency .
6. Bending length upto 2000mm ,bending height upto 170mm Product Paramenters

PRODUCT SPECIFICATIONS
No	Item	Data
1	Feeding sytem: 1)Suction-cup palte to control and operate the sheet metal panel. 2) Worktable with enough hard brushes and rolling stainless steel beads to protect matel panel when processing
2	Bending Length	2000mm
3	Maximum Bending Height	170mm
4	Minimum Bending Height	4mm
5	Min. Inner Size of Four-side Bending	400*250mm
6	Min. Inner size of One-side Bending	160mm
7	Minimum Arc Radius	1.2mm
8	Minimum Continuous Bending Speed	0.2s
10	Bending Angle	0-180°
11	Axes Controllable	9Set
12	Maximum Feeding Speed	50m/min
13	Equipment Size	4000*3000*2500mm
14	Total Power	41KW
15	Average Power	2KW

Main functions:1.four-side bending;
2.one-side bending;
3.continuously bending up and bending down without replacing bending blades .
4.Flexiblely bending arc-side curbs from 0-90 degree;
5.Automatically forming the squared rectangle side curbs .
6.Automatically tightly folding edges of panel;
7.Automatically forming rectangle boxes with max.100mm height of side edges.
8.Automatically bending the various complicated combinations of various angles of edges for panel.
