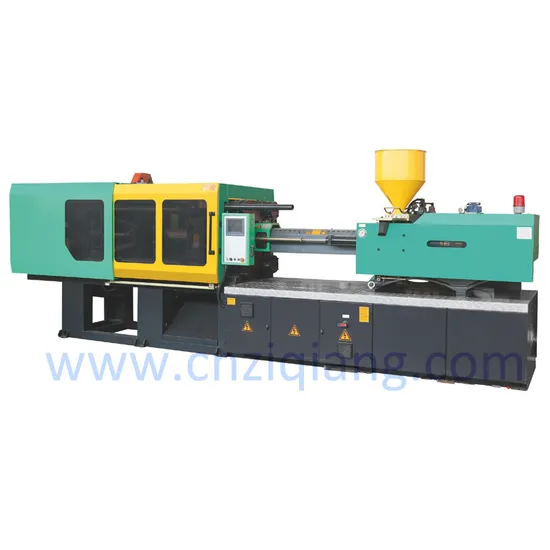

Small Plastic Preform Injection Molding Machine
| Negotiable | 1 Set (MOQ) |
Basic Info.
Model NO.
ZQ128-M6
Structure
Horizontal
Plastic Type
Thermoplastic
Clamping Way
Hydraulic
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Auto Systems
Fully-Auotmatic
Shot Weight(Max)
287g
Clamping Force
1280kn
Delivery Date
50 Days
After-Sales Service Provided
Engineers Available to Service Machinery Overseas
Transport Package
General Packing
Specification
4 KG
Trademark
Ziqiang
Origin
China
HS Code
8477101090
Production Capacity
30 Sets/Month
Product Description
Small Plastic Preform Injection Molding MachineModel: ZQ88-M6, ZQ128-M6, ZQ168-M6, ZQ218-M6,
ZQ268-M6, ZQ320-M6, ZQ400-M6, ZQ500-M6, ZQ680-M6
Clamping Force: 880KN---6800KN
Shot Weight: 1---4Kg
Shot Volume: 129cm3---3808cm3
The technical advantages of injection machine.
Water Saving: No overflowing heating, low oil temperature saves cooling water,
And increases life of sealing elements.
Power Saving: Save Power30%-60%.
High Speed: Increase 20% performance capacity by using variable displacement pump.
Oil Saving: Using high performance filter device to increase life hydraulic oil.
Small Plastic Preform Injection Molding Machine,equipment information.
| ZQ88-M6 | ZQ128-M6 | ZQ168-M6 | |||||||
| 275/88 | 416/128 | 619/168 | |||||||
| International size rating | |||||||||
| INJECTION | A | B | C | A | B | C | A | B | C |
| Shot volumecm 3 | 129 | 163 | 201 | 215 | 263 | 316 | 291 | 349 | 463 |
| Shot weightg/() | 121 | 153 | 189 | 196 | 239 | 287 | 273 | 328 | 435 |
| (PS) oz() | 4.2 | 5.4 | 6.6 | 6.9 | 8.4 | 10.1 | 9.6 | 11.5 | 15.2 |
| Screw diametermm | 32 | 36 | 40 | 38 | 42 | 46 | 42 | 46 | 53 |
| Injection pressureMpa | 214 | 169 | 137 | 193 | 158 | 132 | 190 | 169 | 120 |
| Screw L: Dratio----- | 23:1 | 20:1 | 18:1 | 22:1 | 20:1 | 18:1 | 23:1 | 20:1 | 18:1 |
| Screw strokemm | 160 | 190 | 200 | ||||||
| Screw speed (stepless)r/min | 0-215 | 0-220 | 0-234 | ||||||
| CLAMPING SYSTEM | ZQ88-M6 | ZQ128-M6 | ZQ168-M6 | ||||||
| Clamping forceKN | 880 | 1280 | 1680 | ||||||
| Opening strokemm | 320 | 380 | 430 | ||||||
| Platen sizemm×mm | 550×550 | 620×620 | 700×700 | ||||||
| Space between tie bars mm×mm | 360×360 | 410×410 | 460×460 | ||||||
| Max.daylightmm | 680 | 810 | 930 | ||||||
| Mold thickness (Min-Max)mm | 150-360 | 150-430 | 180-500 | ||||||
| Hydraulic ejection strokemm | 100 | 125 | 140 | ||||||
| Hydraulic ejection forceKN | 31 | 42 | 50 | ||||||
| /POWER UNIT | ZQ88-M6 | ZQ128-M6 | ZQ168-M6 | ||||||
| Hydraulic system pressureMpa | 16 | 17.5 | 17.5 | ||||||
| Pump motorKW | 9.5 | 11 | 15 | ||||||
| Heating capticyKW | 6.5 | 8.9 | 9.8 | ||||||
| Number of temp control zones-- | 3+(nozzle) | 3+(nozzle) | 3+(nozzle) | ||||||
Note: The specifications are subject to change without notice for the further improvement.
