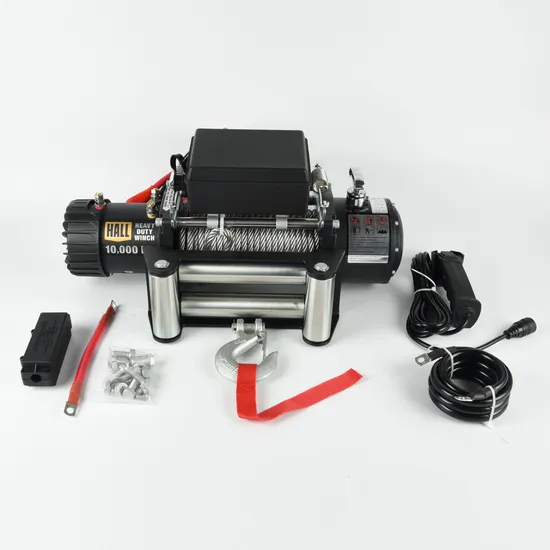

4X4 off-Road Electric Winch for Truck Fast Line Speed CE

Product Description

WHY YOU MUST CHOOSE US: 1. We are a professional winch factory with many years of experiences. 2. We have advanced facilities for production, many accessories of the winch are made by ourselves with good quality.So good quality but reasonable price on the market. 3. We are a honest manufacture with many certificates like CE certificates which can assure the quality of our products. 4.We have a lot patent certificates which show our strong research productivity,making winches styles advance with the times,guaranteeing your quick development and sales in your market.
5. We have strong engineering team that can give best solution for your projects,6. We can OEM for your products.Don't hesitate to contact us-Such a excellent business partner!Let's get win-win in our long-term cooperation.Any questions,just talk to us
Winch model: 4 WD winch CM10000
Performance: Single line rated pull 10000lb(4536kg) 12VDC
Motor: 5.6HP/4.2kw, Series Wound
Control Remote switch: 12ft(3.7m)lead
Gear train: 3 Stage Planetary
Gear reduction ratio: 265.2: 1
Attractive in price and quality. Welcome to contact us for more details.

CM10000
Performance	12VDC
Single line rated pull	10000lb(4536kg)
Motor	5.6hp/4.2kw,Series Wound
Control	Remote switch,12ft(3.7m)lead
Gear train	3 Stage Planetary
Gear reduction ratio	265.2:1
Clutch	Sliding Ring Gear
Braking Action	Automatic In-The-Drum
Drum size	Drum size Diameter2.5"(63.5mm) Length 8.8"(224mm)
Cable	94ftof 21/64" diameter(28m of 9.2mm diameter)
Fairlead	4-Way Roller Fairlead
Remote Control	Included
Battery	Recommended:650CCA minimum for winching
BatteryLeads	2 gauge,72"(1.83m)
Weight	N.W.84lbs(41kg) G.W. 94lbs(45.5kg)
Overall dimentions	(LxWxH)21.3"x6.3"x8.6"(552x160x218mm)
Mounting Bolt Pattern	10.00±0.015"x4.50±0.010"(254x114.3mm)

Electric winch with series wound motor
Model	Capcity	Power	Steel cable	Size (L X W X H)	NW
CM1000	10000LB	DC12V	ø9.2mm X 28m	552 X 160 X 218mm	40KG

Pull, Speed, Amperes, Volts (First Layer)
Line Pull (lbs./ kg)	Line Speed FPM(m/min)	Motor (Amps)
0	22.0ft(6.8m)	80
4000 (1814)	11.5ft(3.5m)	170
6000 (2722)	9.2ft(2.8m)	220
8000 (3629)	7.8ft(2.4m)	280
10000 (4536)	6.5ft(2.0m)	340

Layer	Rated Line Pull (lbs./kgs)	Tatal Rope On Drum (ft/m )
1	10000 (4536)	19.6 (6.0)
2	8000 (3629)	42.6 (13.0)
3	6670 (3030)	72.0 (22.0)
4	5720 (2600)	92.0 (28.0)
