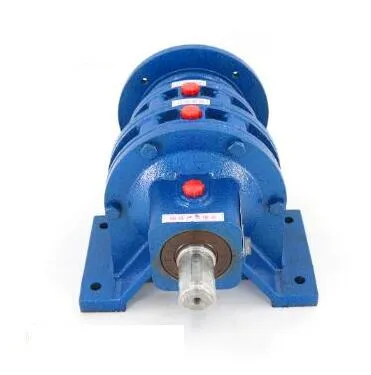

Xld Flange Vertical Mounted Cyclo Speed Reducer

Product Description

Product Description Product Features
- Highly Standard Modular Designed - Quality material ensures the product reliability - High Strength,Compact Dimension - Long Service Life - Low Noise - High Efficiency - Large radial loading ability - Cost-effective Detailed Photos
Product Parameters

Models	Power	Ratio	Max. Torque	Output Shaft Dia.	Input Shaft Dia.
1 Stage
X2(B0/B12)	0.37~1.5	9~87	150	Φ25(Φ30)	Φ15
X3(B1/B15)	0.55~2.2	9~87	250	Φ35	Φ18
X4(B2/B18)	0.75~4.0	9~87	500	Φ45	Φ22
X5(B3/B22)	1.5~7.5	9~87	1,000	Φ55	Φ30
X6(B4/B27)	2.2~11	9~87	2,000	Φ65(Φ70)	Φ35
X7	3.0~11	9~87	2,700	Φ80	Φ40
X8(B5/B33)	5.5~18.5	9~87	4,500	Φ90	Φ45
X9(B6/B39)	7.5~30	9~87	7,100	Φ100	Φ50
X10(B7/B45)	15~45	9~87	12,000	Φ110	Φ55
X11(B8/B55)	18.5~55	9~87	20,000	Φ130	Φ70

Our Advantages
Packaging & Shipping
Company Profile Dawang Transmission Equipment Co., Ltd. located Hangzhou city, Zhejiang, as one professional
manufacturer and exporter of cycloidal pin wheel reducer,worm reducer, gear reducer, gearbox ,
AC motor and relative spare parts, owns rich experience in this line for many years.
We are one direct factory, with advanced production equipment, the strong development team and
producing capacity to offer quality products for customers.
Our products widely served to various industries of Metallurgy, Chemicals, textile,medicine,wooden
etc. Main markets: China, Africa,Australia,Vietnam, Turkey,Japan, Korea, Philippines...
Welcome to ask us any questions, good offer always for you for long term business.
FAQ Q: Are you trading company or manufacturer?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock.

Q: Can we buy 1 pc of each item for quality testing?
A: Yes, we are glad to accept trial order for quality testing.
Q:How to choose a gearbox which meets your requirement?A:You can refer to our catalogue to choose the gearbox or we can help to choose when you providethe technical information of required output torque, output speed and motor parameter etc.
Q: What information shall we give before placing a purchase order?A:a) Type of the gearbox, ratio, input and output type, input flange, mounting position, and motor informationetc.b) Housing color.c) Purchase quantity.d) Other special requirements.
