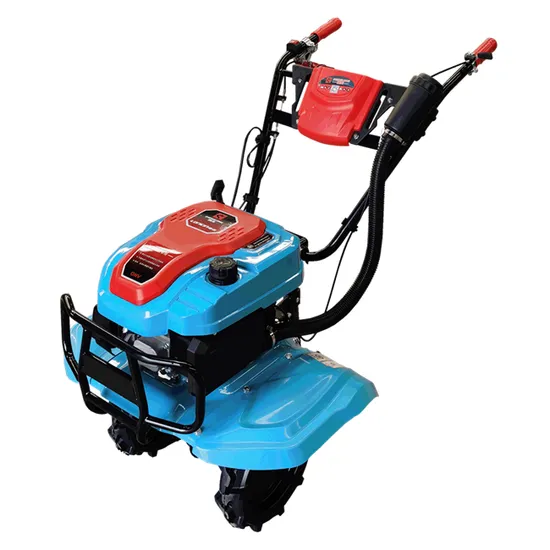

224cc Small 7HP Cultivator Gasoline Rotary Farm Power Tiller with Weeder
Basic Info.
Model NO.
1WGQ4-90B
Application Field
Agriculture
Farming Policy
Dry Cultivating Machinery
Power Source
Gasoline
Operation
Arable Machinery, Movable Operation
Traction Type
Traction
Drive Type
Gear Drive
Arbor Configuration
Horizontal Axis
Certification
CE
Color
Blue
Warranty
1 Year
Product Name
224cc Small 7HP Cultivator Gasoline Rotary Farm Po
Weight
60kg
Tilling Depth
15-20cm
Tilling Width
30-87cm
Mainly Used for
Tilling,Weeding,Ditching,Ridging,Mulch Laying,etc
Range of Application
Plain,Basin,Hill,Dry Land,Greenhouse,etc.
Colour
Blue
Engine Type
Vertical Axis Output
Transmission Type
Power Tiller Full Gear
Operate Method
Walking Behind
Fuel Type
Petrol/Gasoline
Fuel Tank Capacity
2.5L
Displacement
224cc
Max Power
4.5kw
Wheel Track
35cm
Transport Package
Export Carton / Wooden Case
Specification
50cm*70cm*85cm
Trademark
WJA
Origin
China
HS Code
8432290000
Production Capacity
3000 Sets/Month
Product Description
224cc Small 7HP Cultivator Gasoline Rotary Farm Power Tiller with WeederProduct Description
Mainly used for:Tilling,weeding,ditching,ridging,mulch laying.
The multifunction mini power tiller.It is widely used in orchards,vegetable fields,mountains and paddy fields,and it's very popular among customers.
| Model | 1WGQ4-90B |
| Overall dimensions(L*W*H) | 1350*800*700mm |
| Weight | ≤60kg |
| Engine brand | LONCIN Power |
| Engine type consumption | Gasoline,4 stroke,air cooled |
| Tilling width | 300-870mm |
| Tilling depth | 100-150mm |
| Diameter of the rotary blade | 320mm |
| Displacement | 224cc |
| Handlebar | Reduce shake system with spring(adjustable) |
| Economical Fuel consumption | 10.5kg/ hm² |
| Productivity | 0.1-0.12hm2/(h·m) |
| Clutch | Centrifugal clutch, Dry type |
| Gear shift | Stepless |
| Operating speed | 0.7-1m/s |
| Tread | 350mm |
| Rotary blade speed | RPM180 |
| Carburetor choke | Included |
| Electric start | Optional |
| Power transmission | Full gear |
| Wheel | Solid tire |
| Axis Inner diameter | 23mm |
| Operate method | Walking behind |
| Start method | Manual Recoil |
| Function | Tilling/ Weeding/ Ditching/ Ridging/Seeding/Spraying/Mulch laying |
Applicable:Plain,basin,hill,mountin country,greenhouse,vegetable garden,orchard,hard land,dry land,sandy land,loose land,paddy field
Product Details
Big-displacement vertical axis engine,three-leve air filter,full gear drive system.
Small volume,light weight,compact structure.
Oil bath centrifugal cluth,simple operation,strong power and durable quality.
The gearbox has high strength and strong durability.
About Us
Our company is committed to research,development,production and sales of agricultural machinery.Our main products are multi-functional power tiller,brush cutter,power sprayer,power generator,water pump,etc.The products are mainly sold to Southeast Asia,Africa,European and American,all the export value takes up 85% of the total sales amount each year.Our core value is provide high-quality products to our customers.We believe quality is the life of an enterprise.Welcome to visit us and we it's hoped that we can build a win-win relationship in near future.Thank you for your trust!
Packaging & Shipping
FAQ
Q:Are you a produce factory or trading company?
A:We are produce company.
Q:What is your MOQ?
A:10 sets.
Q:What about your payment term?
A:T/T,L/C,Western Union,Paypal.
Q:What is the mode of transportation?
A:By sea.
Q:What is the delivery time?
A: Order amount under 100 sets 7 days.
Q:Do you have OEM service?
A:Yes,our main business is OEM service.
Q:What is the warranty time?
A:The power tiller warranty time 1 year,gearbox 3 years.
