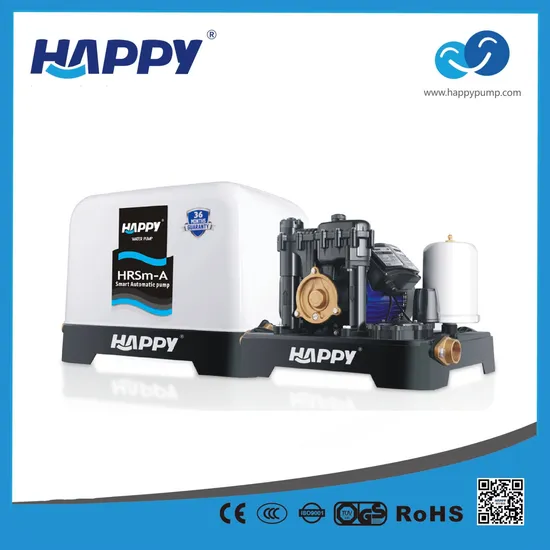

1 Inch Small Pressure Inverter Automatic Electric Single-Stage Water Pump (HRSm-AP)

Product Description

Electric Pump Application
Volumetric water pumps able to offer high pressure in relation to comparatively low powers and which have particularly steady operating curves.
Motor
*Two-pole induction motor(n=2850r. P. M)
*Insulation Class B
*Protection IP44
Material
*Pump body: POM+Brass
*Pump cover: Pue Brass
*Motor housing: Aluminum
*Impeller: Brass
*Motor Shaft:AISI304SS
*Mechanical seal: Ceramic/Graphite
Single phase 220V-240V/50Hz
Single phase 220V-240V/60Hz if request

NO.	TYPE	POWER		MAX.FLOW	MAX.HEAD	INLET/OUTLET	MAX.SUCT	N.W	PACKING DIMENSION
		(Kw)	(Hp)	(L/min)	(m)	(Inch)	(m)	(K.g)	(mm)
A	HRSm505-AP	0.5	0.67	30	30	1(1/4)"*1(1/4)"	8	15.0	470*400*350
B	HRSm755-AP	0.75	1.00	30	40	1(1/4)"*1(1/4)"	8	16.2	470*400*350

Zhejiang Happy Pump Industry Co., Ltd is a professional manufacturer with its own export right. We focus on the development and production of water pump for more than 20 years. Our products include a wide range of vortex pumps, centrifugal pumps, swimming pool pumps, jet pumps, submersible pumps, deep well submersible pumps, motors and so on. Our company has set up four workshops, metalwork, motor, rotor and assembly, and also have established pipelining operation from the pump body casting processing, motor embedded, rotor punching to assembly and the product testing. Our products are exported to many countries, especially the smart automatic pumps with plastic and copper material. In Vietnam, because of it's environmental protection, they sell pretty well. Our company always provide excellent quality products and best service to customers.
FAQ
Q1: Are you a factory or just a trading company?
A1: Manufacturer,and we focus on the development and production of water pump for more than 20 years.

Q2: Is customized service available?
A2: Of course, OEM & ODM both are available.

Q3: How can I get the quotation?
A3: Leave us message with your purchase requirements and we will reply you within one hour on working time. And you may contact us directly by Trade Manager.

Q4:Can I buy one as sample?
A4: Yes, of course.

Q5: How about your quality control?
A5: Our professional QC will check the quality during the production and do the quality test before shipment.
