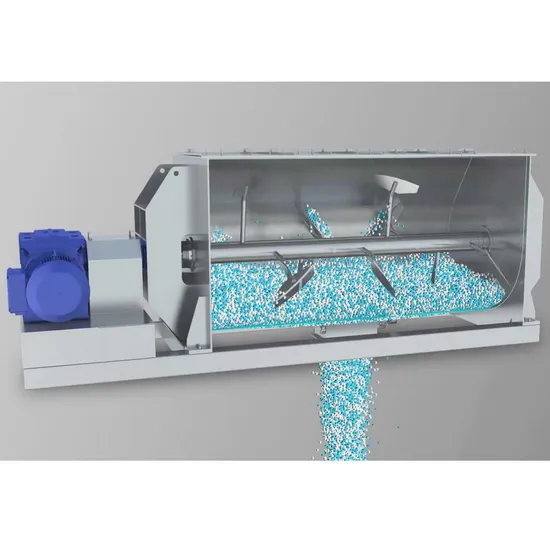

Paddle Mixer Powder Paddle Mixer

Product Description

Introduction:
The CMS (Continuous single shaft plough mixer), focus on mixing, it can also convey the material. With the special inner structure, it can adapt to a certain range of the feeding speed, to achieve relevant productivity. With the uniform speed feeding equipment, it can mix material in a wide range, and make sure the consistency and stability of all the product.
1. Working conditions of the continuous mixer
1. The material should be supplied steadily and continuously by the feeding system
2.The feeding speed of different materials should be subject to the formula proportion
3. The materials after mixing should be timely and efficiently processed by the next equipment, any block here is forbidden
4. Little additive e.g. Below 5% content should be mixed with bulk material beforehand
5. The feeding speed decides the output of continuous mixer, the output, uniformity and properties of material decide the type and
Size of mixer
2. Principle of continuous powder mixer:
Overflow method, Advance and retreat supplies method
1)Overflow method: based on discharge control, certain amount of filler is kept in the mixer tank during the continuous mixing process, and this certain amount of filler is mixed with new filler, alternating and superimposing activity make this part of the material maintain the condition of discharge, material coming out with overflowing
2) Advance and retreat supplies method: based on the mixing agitator, agitator can achieve force of synchronous or alternating of feeding and retreat.Three methods, more feeding less retreat, less feeding more retreat equal between feeding and retreat can be chosen based on the mixing process and nature of the materials
3. Data of continuous mixer
4. The different agitator of continuous mixer
COMPANY PROFILE
Shanghai Shengli specializes in mixing equipment research, design, manufacture, sales and service. In past 26 years, we go deeply mixing processing filed and related technology, devote to research different kinds of mixer, modify and perfect existing mixing system, and develop new-type mixer equipment
Under working experience, we developed mixer processing machinery independently. With modern processing method, strict product management, high quality ,and professional service team, Shengli is becoming the preferred brand. We will keep researching new technology, solving mixing problems, providing more suitable mixer, promoting upgrades, and creating maximum value for customers
