Small Tube Pipe Extrusion Machine /Soft Pipe Production Machine

Product Description

Small Tube pipe Extrusion machine /Soft Pipe Production Machine used in the industries such as agriculture and constructional plumbing, cable laying,water-supply pipe, water-drain pipe etc.
The feature of our PVC Hose Mahcine 1. High efficiency singel screw extruder
2. It can produce PVC garden hose or pvc soft hose
3. The thickness is from 2mm to 6mm, diameter is from 10mm to 50mm
4. This pvc hose is mostly used as home, garden,farm, lawn and so on.
Flow Progress
Material mix inner --layer extrusion inner-- layer forming→ spray cooling→ haul off→ fibre winding→ oven dryness→ outer layer extrusion→ outer layer forming→ spray cooling→ haul-off→ printer→ winder
Technical Parameters

Model	L/D Ratio	Screw	Material	Screw diameter	Output	Total Power	Center Height	Production Scale
SJ45/30	30:1	Separative style	38crmnal	45mm	60kg/hr	35kw	1000mm	Φ6-16mm
SJ65/30	30:1	Separative style	38crmnal	65mm	120kg/hr	50kw	1000mm	Φ16-50mm

Main parts of the machine

Item	Quantity
SJ65/30 Single Screw Extruder	Two sets
Die and Mold	One set
TSG-B Stainless steel cooling tank	Two sets
TSG-A Kinking Machine	One set
Flat Traction Engine	One set
Winder	One set

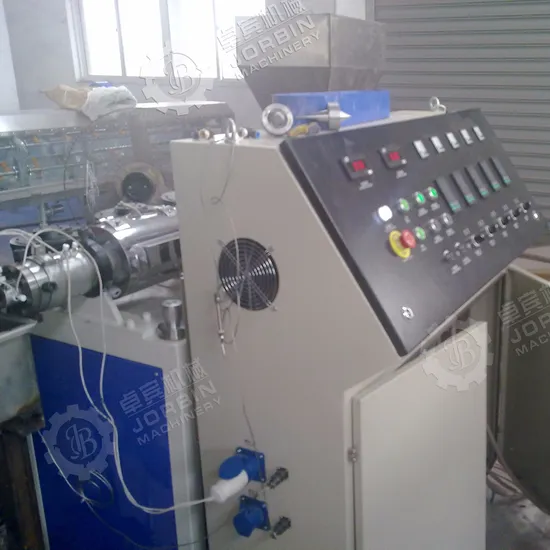

More machine photoes when we test the machine
the machine
Die of the machine
Hall off of the machine
Winder machine
Final pipe/tubes
Performance &Advantages of PVC,UPVC Wall Pipe extrusion line / UPVC pipe making machine:
1. GF series plastic pipe production line is mainly used in manufacture of the plastic PVC pipes with tube diameters and wall thickness, which are used for water supply and drainage in the field of agriculture and construction.
2. This line is composed of conical twin-screw extruder, vacuum calibration table, haul-off, cutter, stacker etc.
3. The extruder and the haul-off adopt the quality AC frequency conversion control device.
4. The vacuum pump and motor adopt the famous brand.
5. The haul-off have two-claw, three-claw, four-claw, six-claw.
6. It may choose the saw blade cutting type or the planet cutting production efficiency.
7. Our company may equipped the special device for the manufacture of the inner wall spiral coil and core layer blister according to the client's requirement.
If want more details of our PVC,UPVC Wall Pipe extrusion production line / UPVC pipe making machine.
Please do not hesitate to let me know.
1. We supply below necessary documents with the machine:
Machine layout Electricity diagram Machine certificate General manual book/maintenance book 2. We provides one-year quality guarantee. During this period, if the machine's malfunction is approved to be our responsibility, we will send the broken spare parts to you with DHL courier or other way within 7 workdays after receiving the complainant. And send the technicians to the buyer's factory for maintaining. All charges are in our account.
3. After one year guarantee, If you need we can provides payable spare parts and technician's VISITING maintenance, and any broken spares we can send you soon as possible.
4. We trust that our quotation meets with your requirements and we will gladly furnish you with further information.
