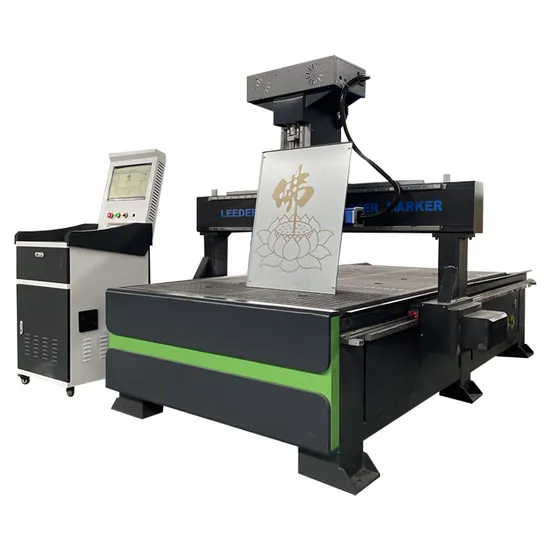

Automatic Sandblasting Drilling Removing Paint Glass Mirror Stainless Steel Laser Engraving Marking Machine

Product Description

Feature
# Thick steel tube welded structure, under heat treatment to ensures minimum distortion, excellent rigidity and powerful strength.
# International famous HQD / HSD brand spindle, powerful with high quality.
# Adopt high precision Taiwan HIWIN/PMI linear rail, moving smooth and high accuracy.
Product Parameters

Model	LEW-1325
Working area	1300 x 2500 x 200mm
Spindle	HQD 3kw / 4.5kw / 5.5kw / 6kw / 9kw
Spindle speed	18000-24000 rpm
Inverter	Fuling / Best
Control system	DSP / NC STUDIO / MACH3
Driving system	Stepper / Servo
Table	T-slot aluminum / Vacuum table
Transmission system	XY axis helical gear rack and Z axis Taiwan TBI ball screw
Guide rails	Taiwan high accuracy HIWIN/PMI square rails
Working accuracy	±0.05mm/m
Travelling speed	0 - 30m/min
Working speed	0 - 15m/min

Packaging & Shipping
Inner package: Stretch film and and water-proof film.
Outside package: Standard export plywood case.
By sea/train/air, we can do EXW/FOB/CFR/DDU/DDP trading terms.
Payment
T/T 50% in advance and we start to manufacture this machine after receiving the payment.T/T 50% balance payment before shipping, and we will send you our machine pictures and testing videos to confirm. Then arrange the packing and shipping.

After Sales Service
Three years warranty. 7/24 after sale service. Customer will be able to get free training advice towards our machine in our factory. Can also get free suggestion, consultation, technical support and service by Email/Tel/WhatsApp/Skype, etc. Any question or problem, show us pictures or videos, and then we will try our best to help you as soon as possible.Free parts will be provided if broken not human reason within warranty.Engineer available to overseas service.
