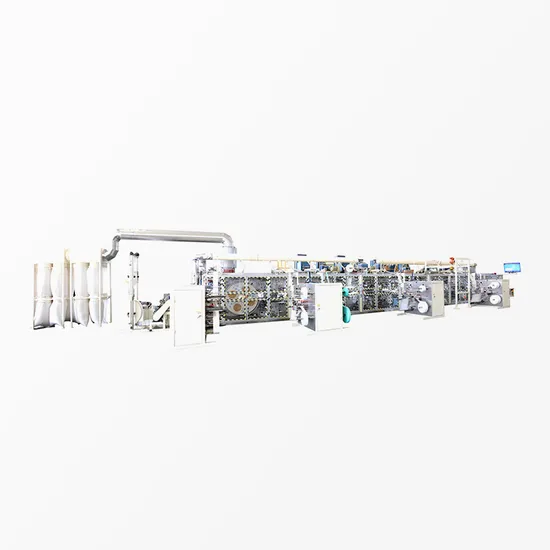

Full Servo 400PCS/Min Jwc Machine Supplier Baby Diaper Machine

Product Description

Main technical Parameters

1	Design speed	800pcs/min
2	Working speed	600-800pcs/min
3	Qualified rate	≥ 97% (exclude the wastage due to the glue applicators and materials splicing joint)
4	Efficiency	≥ 85%
5	installation capacity	≥280KW
7	Electricity	380V ±5%,50HZ
8	Wire	Three phases four wires 380V/50Hz (ground wire) 3X120mm³+1X50mm³+1X25mm³
9	Air pressure	≥0.8Mpa 2.6m³/min
10	Total weight	About 78tons
11	Machine size	28.5×8×5 M(L×W×H)
12	Working space	36×12×8 M (L×W×H)
13	Machine color	Rice white ,can be changed by order
14	Product size	S,M,L,XL
15	Containers	6X40HQ

Machine main parts brand:

	Name	Brand	Origin
	Servo motor	Mitsubishi	Japan
	Auto web guider	FIFE	USA
	Touchable screen	Banner	USA
	PLC controlling system	Mitsubishi	Japan
	Sensor	Banner	USA
	Safety production	Schneider	France
	Cutter raw material	M7	USA
	Gear according to usage	BEM/NSK/SKF	Germany/Japan/Sweden
	Timing belt	Optibelt or Gates	Germany/USA
	Low voltage electronic	Schneider	France
	Temperature controlling system	Omron	Japan
	Pressure regulating valve	Airtac	Chinese Taiwan
	Pneumatic element	Airtac	Chinese Taiwan
	Solenoid valve	Airtac	Chinese Taiwan
	Moisture separator	Airtac	Chinese Taiwan
	Automatic fault alarm	Mitsubishi	Japan
	Planetary reducer	APEX	Chinese Taiwan
	Liner guide rail	Hiwin	Chinese Taiwan

1.Reasonably solid square steel frame: Panel 25mm thick, adopt specular paint, 4 surfaces processing, solid cage with 60 * 60mm square steel in module design, the base frame with square tube 120mm × 120mm, 18mm thick bottom plate, 4 surface processing also ,widening after gearbox for repair. Spliced type main board by screw, make sure the high efficiency .
2. Crusher system
3. Fluff forming system
4. SAP feeding system
5. Bottom tissue feeding, roll diameter φ800mm
6. Upper tissue, roll diameter φ800mm
7. Fluff core wrapped by upper and bottom tissue, also can be wrapped by one whole piece tissue
8. ADL feeding, roll diameter φ800mm
9. Fluff core inner cut device 1 set,adopt frame type structure, increase the cutter life
10. Leak cuff unit
11. Hydrophilic nonwoven supply, roll diameterφ800mm
12. Magic tape material supply:
13. Three pieces complex, two sides fixing unit, adhesion pressing
14. Bottom film supply
15. Frontal tape supply
16. elastic waistband supply
17. surface layer, absorption core, bottom film pressing
18. product arc shape die cut
19. pressing unit(Y shape roller)
20. product vertical tri-fold
21. pressing unit(Y shape roller)
22. transmission unit
23. final cut unit
24.horizontal fold transmission unit
25. horizontal fold unit
26. product transmission unit27. auto rejection exit(pneumatic)
27. Driving system
28. Air supply
Raw materials :

Material	style
roller pulp	685g/m2
hydrophilic non-woven as top sheet	18g/ m2
SMS leak cuff nonwoven	15g/ m2
top sheet tissue paper virgin tissue	15g/ m2
bottom sheet tissue paper virgin tissue	15g/ m2
back sheet PE film	24g/ m2
Frontal tape
Side tape
leak cuff and leak cuff elastic ribbon	720D
Waistband tension film
SAP
hot melt adhesive -elastic
hot melt adhesive- construction
If customer need, we can order the packing bag for them

Our Services
1. We can provide free equipment production of finished products, need can feel free to contact us.

2.We can provide quality after-sales service :

You can send technician to our factory to learn operate the machine before the machine delivery for 1-2 month. We can offer food and accommodation.

When the baby diaper machine arrive your workshop, we will send technician to your workshop installing, testing the machine and training your workers.

If you need one Chinese technician work for you, we can help you find one work for you.

Life-long after service for the baby diaper machinery


Company Information
About JWC
Since 1996

Specializes in researching &developing,hygiene products manufacturing,raw materials importing and exporting,hygienic products manufacturing and real estate development

Passed the ISO9001 and CE certificate and wins more than 100 national patents as "China Famous Brand"

Provide OEM service and different grades of raw materials to overseas customer

Ecport to more than 94 countries in Europe,southeast asia,south America ,the middle east and areas

Can be customized according to customer requirments
