Wood CNC Machine with 4 Water Cooling Spindle
| US$11,200.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
1318
Spindle Number
Four
Feed Mode
Manual
Controlling Mode
CNC
Certification
CE, ISO
Customized
Customized
Condition
New
Color
Customized
Model
1325
Spindle
Water Cooling Spindle
Guide Rails
Hiwin Liner Square Guide Rails
Ball Screw
Tbi Ball Screw
Inverter
Fuling Brand Inverter
Control System
A18 Version DSP Control System
Motor
Stepper Motor
Driving Way
Leadshine 860h Driver
Transmission in X,Y
Taiwan J.T High Precision Helical Rack
Table Surface
Aluminum with PVC
Transport Package
Exporting Plywood Package
Specification
1300*2500*200mm
Trademark
zhongke
Origin
Jinan Shandong China
HS Code
84659900
Production Capacity
100set /Month
Product Description

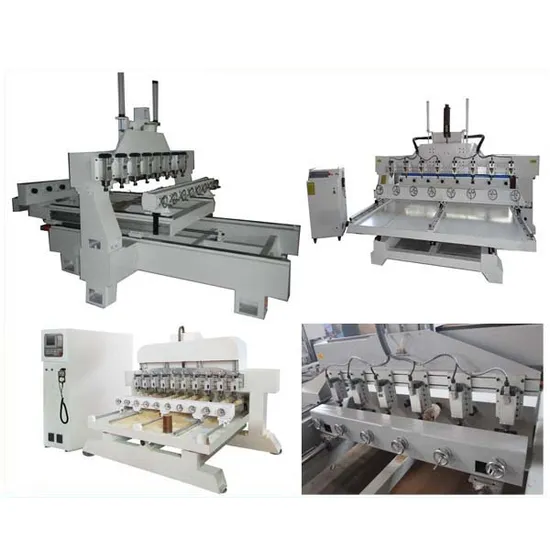

Wood cnc machine with 4 air cooling spindleOur machine picture
Configuration:
1.Water cooling spindle with high speed,high efficency and little noise.
2.All of the spindles can work together to save you time and costs.
3.The lathe is founded by welded steel that ensures the high stability and longtime use.
4.Taiwan HIWIN square guide rails and Taiwan TBI ball screws with high precision,large load bearing and stable running.
5.High speed driver and Stepper enhance work efficiency.
6.Our controller is DSP,easy to operate(optional:DSP control system).
7.Equipped with professional Aluminum with PVC base with the high strength engineering plastics surface in order to ensure can bear large load and longtime working.
8.Adopt high powerful weled steel bed structure.
9.The Ball screw in transtimission improve the work ability.
10.Many parts can change according to your requirement.
Details
Technical parameters:
| Model | ZK1325 |
| X,Y,Z axis working area | 1300*2500*200mm |
| Whole structure | Weled thick steel bed structure |
| X,Y,Z structure | Taiwan HIWIN Linear Square guide rails |
| X,Y structure | Taiwan J.T high precision helical rack for X,Y axis transmission, high speed and more stable; |
| Taiwan TBI ball screw, high precision | |
| Max. idling speed | 50m/min |
| Max. working speed | 25m/min |
| Repositioning Accuracy | ±0.05mm |
| X Y Z working Accuracy | < 0.02mm |
| Spindle | Air cooling spindle |
| Spindle rotating speed | 6000-18000rpm/min |
| Diameter of tools | Φ3.175 -Φ20 |
| Collect size | ER 25 |
| Operation language | G code (plt, mmg, uoo, bmp) |
| Driving system | Stepper motor |
| Operating system | DSP control system |
| Working voltage | 220V/380V |
| Software | UcancamV8 / Type3 / Artcam software (option) |
After sale service:
1 we offer 1 year warranty
2 we offer 24 hourses technical support online
3 Druring the warranty, if there is part broken, we will offer you the same for free.
