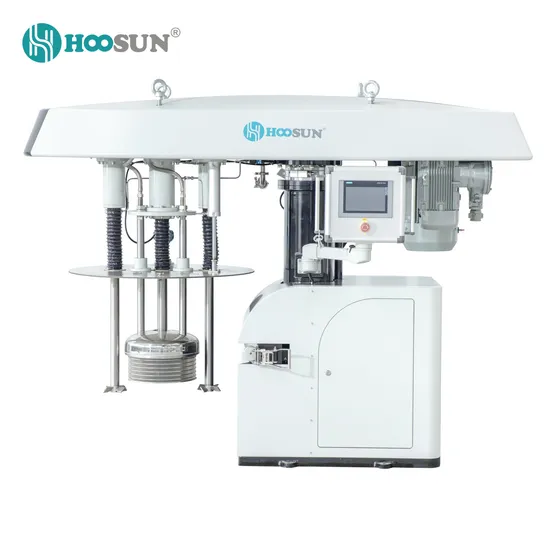

Explosive Proof Basket Bead Mill with Movable Tank and Zirconia Beads for Paints

Product Description

Basic Info.

Model No.	SMB 500	Crushing Style	Extruding and Milling
Principle	Basket MIll	Cutter Material	Zirconium/Aluminium Bead
Finished Surface	Outer Surface Process	Compressive Strength (For Crushing)	>300MPA
Tongs' Features	Adjustable Tongs	Power	Motor
Fineness	30nm-5um	Output	Siemens Screen
Operation	Milling and Separating Independently	Mill Parts	Material Optional
Transport Package	Wooden Case	Trademark	Hoosun
Origin	Shanghai, China	HS Code	8477800000

Product Description
Performance Advantage 1.
The Basket Mill has a unique dispersion grinding system with separate dispersion drives in the grinding chamber. The production operation is very flexible and the energy input to the grinding area is different from the input into the basket, which is a great advantage compared to other single shaft basket mill configurations on the market.
(1). Increased product preparation efficiency with separate dispersing and grinding drives
(2). Intelligent lifting and lowering system, easy to realise production automation and intelligence
(3). Wide range of product viscosities, can be applied to a variety of drum sizes
(4). No risk of mechanical leakage, no pumps and no pipework
2.
Fineness: 50 - 150nm
Zirconia Bead Dia.: 0.03-0.6mm
Optional materials: Tungsten carbide/Polyurethane/Zirconia/silicon carbide/Silicon nitride
3.
Application: Paintings, Coatings, Dyes, Pigments, Nano new materials, MLCC, Lithium batteries, Silicon carbon cathode electrodes, Alumina, Ceramic ink etc.
Technical Parameter

Model	Lift (mm)	Weight (kg)	Motor Power (grinding)	Motor Power (stirring)	Batch Capacity
Lab-SMB	/	300	2.2KW	0.75kw	6-10L
SMB 200	800	1100	7.5KW	1.5kw	50 - 200L
SMB 400	900	2200	15KW	4kw	200 - 400L
SMB 500	1300	2800	22KW	7.5kw	300 - 1500L
SMB 3000	1500	3200	37KW	15kw	1500-3000L
SMB 6000	1800	5200	55KW	37kw	2000 - 6000L
