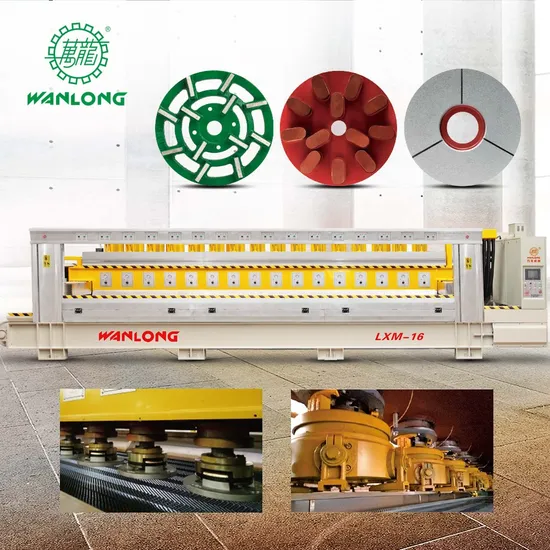

Cheap Price Automatic PLC Multi Head Marble Granite Line Polishing Machine
| US$50,000.00-65,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
LXM-8 12 16 20 24
Automation
Automatic
Precision
High Precision
Application
Ceramics, Glass, Jadestone, Cement Brick, Concrete Curb, Marble, Granite Tiles Polishing Machine
Type for Grinding Machine
Disc Grinding Machine
Grinding Machine Type
Granite Surface Polishing Machine
Grinding Method
Wet Grind
Certification
API, CCC, SONCAP, GOST, ISO, CE, Stone Polishing Machines
Condition
New
Main Motor Power
105/135kw
Voltage
220/380/415V
After Sales Service Provide
Engineer Available Service Machinery Overseas
Warranty
12 Months
Max. Processing Size
3000X1300X50mm
Max. Heads No.
8/ 12/ 16/ 20/ 24 Heads
Water Consumption
13/ 18 M3/H
Approximate Weight
11-20 Tons
Transport Package
Seaworthy Wooden Case for Automatic Cutting Machin
Specification
7900x2200x2200mm
Trademark
Wanlong
Origin
China
HS Code
84642000
Production Capacity
5000sets Per Year
Product Description
| Polishing Heads number (optional) | pc | 8 | 12 | 16 | 20 | 24 |
| Working width (optional) | mm | 500-1300 | 500-1300 | 500-1300 | 500-1300 | 500-1300 |
| Thickness | mm | 15-50 | 15-50 | 15-50 | 15-50 | 15-50 |
| Air Consumption | m³/h | 10 | 14 | 19 | 24 | 29 |
| Main motor power | KW | 6x7.5+2x9kw | 9x7.5+3x9kw | 12x7.5+4x9kw | 15x7.5+4x9kw | 18x7.5+6x9kw |
| Dimensions (L x W x H) | mm | 5320*2200*2200 | 6600*2200*2200 | 7900*2200*2200 | 9200*2200*2200 | 10500*2200*2200 |
| Main motor power | KW | 74 | 105 | 135 | 162 | 202 |
| Total weipht | m³/h | 11 | 13 | 16 | 20 | 24 |
Advantages
1, Auto Lubrication System for Polishing Heads and Key Bearings!
2, PLC Intelligent Control System! Warning Device for Polishing Material Wearing!
3, Imported Electric Parts: SIEMENS Motor and Switch, FUJI Contactor, Japan Yaskawa Inverter
5, Auto Detector for Slab Size
6, Unique Damping Device for Polishing Heads
7, AIRTEC Air Cylinder, Germany Technology, TAIWAN Produced
8, Independent Switch Gear for Each Polishing Head Pressure Adjustable for Each Head
9, TAIWAN Linear Guide Rail for Crossbeam Back and Forward Movement.
10, Anti-collision Device for Crossbeam Back and Forward Movement While Limit Switch be out of order
11, With Slab Loading and Unloading Trolley! Cleaning Head and Dryer
LXM-16 Output: 30-35m2 per hour for 85 degree Shinning!
LXM-20 Output: 35-40m2 per hour for 85 degree Shinning!
