Swiss CNC Lathe of Single Spindle with High Positional Accuracy Requirements

Product Description

Hs-320 Swiss CNC Lathe of Single Spindle with High Positional Accuracy Requirements
Product Description

Enhanced Precision and Accuracy:
With CNC machining, computer programs precisely control every movement of the machine, ensuring unparalleled accuracy and consistency.
Increased Efficiency and Productivity: CNC machines are capable of running continuously for extended periods without any breaks or interruptions. This allows manufacturers to achieve higher production rates and meet tight deadlines efficiently.

Versatility for Complex Designs:
One significant advantage of CNC machining is its ability to handle complex designs with ease, CNC machines can precisely execute complex designs by following instructions from CAD (Computer-Aided Design) programs.
Cost-effectiveness and Time-saving:
the precise and consistent nature of CNC machining eliminates the need for extensive quality control inspections, saving both time and money in the production process.

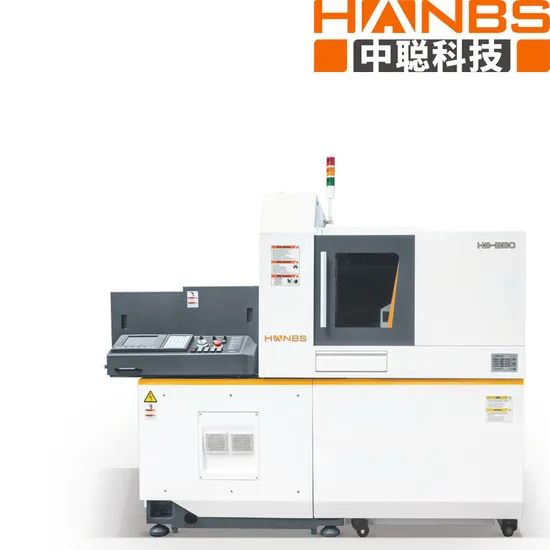

Product Photoes
Product Information

	Project
Processing references	Maximum machining diameter	Φ20mm
	Maximum machining length	190mm
	Maximum axial bore diameter	Φ10mm
	Maximum axial work wire size	M8
	Maximum spindle speed	10000rpm
	Radial maximum bore diameter	Φ7mm
	Radial maximum bore tapping size	M6
	Radial power head maximum rotation speed	ER11:10000/ER16:8000
	Rated speed of radial power head	ER11:8000/ER16:6000
	Maximum workpiece removal length	100mm
Tool dimension	Number of knives installed	6
	Tool (turning tool)	12X12
	sleeve	Φ25.0 X 4
Clip head guide sleeve	Spindle spring collet	TSUGAMI B0205CCR
	Power head collet	ER11,ER16
	Guide bushing	TSUGAMI BS-20#-B
Feeding speed	Z1/Y-axis feed velocity	30m/min
	X1	20m/min
Electric motor	Spindle drive power	2.5/3.7KW
	Power head drive power	1KW
	For cutting fluid	0.4KW
	Cooling of spindle	0.075KW
	Lubricating oil	0.01KW
Others	Spindle center height	1060mm
	Barometric flow	0.7mpa 0.5m³/min
	Main circuit breaker capacity	40A
	Input power	9.3KW
	Weight	2.6T
	Overall dimensions	2250X1200X1850mm

Processing case
Factory
Packing&Shipping
Certifications
Q&A
1: How to select machine tools?
A: For selection, please send us the drawing of the turned part, our engineers will evaluate the drawing and provide the CNC lathe configuration that suits your needs.
2: What are your main products?
A: SmartLathe has concentrated all its resources to successfully develop the HS series of Swiss CNC lathes, including HS-820, HS-926, HS-320, HS-512 and CNC machines.
3: Where is our factory located? How to visit?
A: Our factory is located in Dalang Town, Dongguan City, Guangdong Province, China. We warmly welcome you to visit our factory.
4: What are the trade and payment terms?
A: FOB, CFR, CIF and EXW are acceptable. t/t, l/c, d/p.
5: What is the maximum order quantity?
A: 1 set. If you order more, we will offer you more favourable price.
6: What is the delivery time?
A: Full range of standard models are in stock. As for customisation, it depends on the situation.
7. Do you have any certificates?
A: Yes, our machines are CE compliant and our factory is ISO 9001 certified.
8. How long is the warranty period?
A: The warranty period is normally 12 months after the bill of lading date. 9.
9. Machine installation.
A: If the buyer requests, we can assign technicians to install on site.
10. Technical support
A: We provide technical response within 12 hours and troubleshooting solution within 48 hours.
