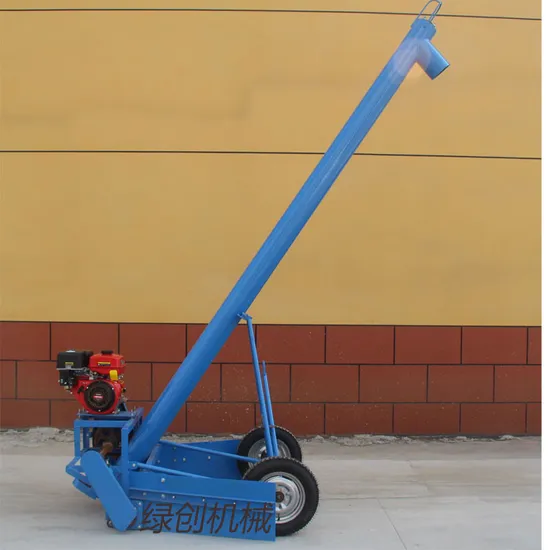

Automatic Agricultural Road Grain Collection Machine for Large Yields

Product Description

Product Introduction:
Road grain harvester is an agricultural machinery equipment used to collect and sun dry grains on roads or fields, mainly used to improve grain harvesting efficiency and reduce manual labor intensity.
The following is a detailed introduction about road grain collectors:
Working principle
Cleaning and collection: Road grain harvesters are usually equipped with rotating brushes or scrapers, which use mechanical devices to clean and collect the grains scattered on the ground into the machine.
Conveying and lifting: The collected grains are lifted to a certain height by a spiral conveying device or a winch, and then transported to the designated location by a conveyor belt or other device.
Bagging or loading: Grain is ultimately loaded directly into burlap bags, trucks, or other transportation vehicles through the discharge port.
Structural composition
Main structure: including main support beams, material trays, material drums, rollers, and rear support legs.
Power system: Typically, gasoline or diesel engines are used as power sources to drive cleaning and conveying devices through belt or gear transmission.
Cleaning device: composed of a front brush roller and a rear brush roller. The front brush roller has a lower speed and is used to sweep the grain into the material tray, while the rear brush roller has a higher speed and is used to quickly push the grain into the aggregate drum.
Conveyor device: including a winch, a conveyor motor, and a support base, used to lift grain from low to high.
advantage
Efficient and labor-saving: One road grain harvester can replace multiple people for grain collection operations, and can collect 15-25 tons of grain per hour.
Easy to operate: The equipment is usually manually pushed or designed in a vehicle mounted manner, which is convenient to use and does not require complex installation.
Environmentally friendly and pollution-free: Some equipment is manually driven and does not produce waste gas that pollutes food.
Strong applicability: Suitable for various food crops such as wheat, corn, rice, etc.
Product parameters:

Suppressor
Model	Lightweight 1.5m	Lightweight 2m	Lightweight 2.5m	Heavy-duty 1.5m	Heavy-duty 2m	Heavy-duty 2.5m	Heavy-duty 3m	Manually fold 4 meters	Hydraulic folding 4m
Rack size/thickness	60*60mm/3mm	60*60mm/3mm	60*60mm/3mm	80*80mm/4mm	80*80mm/4mm	80*80mm/4mm	80*80mm/4mm	80*80mm/4mm	80*80mm/4mm
Roller diameter/thickness	350mm/1.5mm	350mm/1.5mm	350mm/1.5mm	350mm/3mm	350mm/3mm	350mm/3mm	350mm/3mm	450mm/3.5mm	450mm/3.5mm
Weight	145kg	165kg	180kg	230kg	290kg	315kg	365kg	450kg	450kg

Product Tupian:

Practical grain crops:
1.rice plant
2.corn
3.soybean
4.wheat
5.rapeseed
6.Plastic particles
Product application direction:
Road grain collectors are mainly used for grain collection in places such as highways and drying fields, especially during the wheat harvest season or large-scale grain drying, which can quickly complete the grain collection task.
Packaging and transportation:
Company Profile:
Shandong Bodilan Machinery Co., Ltd. is a modern comprehensive company specializing in the research and development, production, and sales of agricultural machinery. It is one of the largest agricultural machinery production enterprises in the industry, specializing in farming, harvesting, and management.
The company's products are various agricultural machinery that are compatible with tractors ranging from 12-300 horsepower. The main products include plows, rotary tillers, disc plows, disc harrows, deep loosening machines, and other tillage machinery; Sowing machines for wheat, corn, soybeans, vegetables, and other crops; Potato and sweet potato planting and harvesting machines; Lawn mowers, rakers, balers and other grass machinery; Fertilizer spreader (truck) for granular fertilizer, organic fertilizer, etc; There are also sprayers, cultivators, ridgers, excavators, agricultural trailers, etc; And agricultural machinery accessories such as harrows, plows, loosening shovels, rake teeth, as well as engineering machinery accessories such as wood grabs, iron grabs, digging buckets, and extension arms. We can also produce according to customer drawings and samples, as well as design and produce according to customer requirements. Our company's products are sold year-round in various provinces and regions across the country, and are also exported to dozens of countries and regions such as Europe, America, Australia, Africa, Southeast Asia, and the Middle East. Our products are highly trusted by customers both domestically and internationally, and have received unanimous praise from them.
The company currently has modern processing equipment such as laser cutting machines, CNC machining centers, product welding and assembly lines, large-scale surface treatment and coating lines, greatly improving the company's equipment level and production research and development capabilities. Bodilan Machinery adheres to the mission of providing modern agricultural machinery and equipment products and enthusiastic services, and adopts a diversified procurement route for key components in foreign markets to provide customers with stable quality products. The company now has nearly a hundred long-term cooperative supplier partners, distributed in 25 provinces, cities, and autonomous regions in China.
Starting from the actual needs of the market and users, we continuously strive to promote the integration of agricultural machinery and agronomy for product innovation and research and development. We adhere to the development philosophy of "survival through quality, development through quality, and efficiency through quality", and uphold the corporate spirit of "honesty and trustworthiness, customer first, quality first". We insist on independent innovation to create core competitiveness and enhance the market competitiveness of our products in the agricultural machinery and equipment industry.
Shandong Bodilan Machinery Co., Ltd. relies on a strict quality management system, advanced production and manufacturing processes, reliable product quality, and after-sales service to provide high-quality products to customers from all walks of life. Welcome friends from all over the world to inquire, negotiate and inspect, cooperate for win-win, and create brilliance together!
Certification report:

Company advantages:
1. Rich product line: The company offers a wide range of agricultural machinery, including plows, rotary tillers, disc plows, disc harrows, deep loosening machines, and more; Sowing machines for wheat, corn, soybeans, vegetables, and other crops; Potato and sweet potato planting and harvesting machines; Lawn mowers, rakers, balers and other grass machinery; Fertilizer spreader (truck) for granular fertilizer, organic fertilizer, etc; And also sprayers, cultivators, ridgers, excavators, agricultural trailers, etc.
2. R&D and production capabilities: The company has modern processing equipment such as laser cutting machines, CNC machining centers, product welding and assembly lines, large-scale surface treatment and painting lines, which greatly improves the company's equipment level and production R&D capabilities.
3. International market: Our products are not only sold domestically, but also exported to dozens of countries and regions such as Europe, America, Australia, Africa, Southeast Asia, and the Middle East. They are highly trusted by domestic and foreign customers and have received unanimous praise from them.
4. Quality control: The company adheres to the mission of providing modern agricultural machinery and equipment products and enthusiastic services, and adopts a diversified procurement route for key components in foreign markets to provide customers with stable quality products.
5. Supply Chain Management: The company now has nearly a hundred long-term cooperative supplier partners, distributed in 25 provinces, cities, and autonomous regions in China, which provides strong guarantees for the stability and cost control of the company's supply chain.
6. Corporate philosophy: The company adheres to the corporate spirit of "honesty and trustworthiness, customer first, quality first", insists on independent innovation to create core competitiveness, and enhances the market competitiveness of enterprise products in the agricultural machinery and equipment industry.
