Tpbs Sieve Bend Screen Filter-550

Product Description

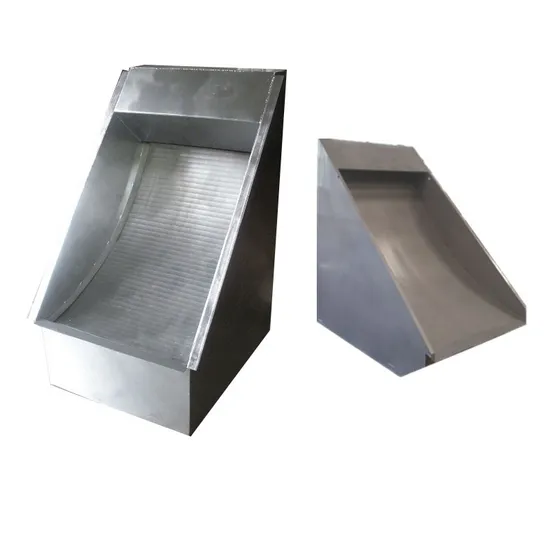

Sieve Bend Screen Filter
Sieve Bend Screen Filter Product introductions:
Sieve Bend Screen Filter is a small-scale unpowered separate equipment, used for processing the suspended solids, floating objects, and sediment, etc… during the sewage treatment. The material of this equipment normally adopt 304 stainless steel, and the gap can be made different size, such as 0.25mm,0.5mm,0.75mm,1.0mm,1.5mm,2mm, and so on, also can be customized available for detailed requirements.
Sieve Bend Screen Filter Features:
1. Take advantage of the gravity of water flow, it has no any energy cost;
2. Water yield dispose is large by single-motor.
3. It will not obstruct, and it is easy to clean.
4. The material of whole set of equipment adopts stainless steel or carbon steel, machinery strength is very high, no deformation and has a life long service.
Sieve Bend Screen Filter Application:
1. Paper waste--- recycles the fiber, wipe off the solid content.
2. Tannery waste---- eliminates the fur, grease and other solid contents.
3. Slaughter waste----- eliminates bag, fur, grease, shit and other solid content.
4. Urban sewage--- eliminates fur, debris and other solid contents.
5. Alcohol, starch factory waste---- eliminates the shell of plant fiber, debris and other solid contents.
6. Drug and candy factory waste--- eliminates different kinds of wastes, the shell of plant fiber, and other solid contents.
7. Beer, Malt factory waste----- eliminate malt, bean peel and other solid contents.
8. Livestock, fishing farm waste--- eliminate livestock fur, shit and other solid content.
9. Fish and meat packing plant----- to eliminate gill, scale, dog meat, grease and other solid contents. Also deal with other factories for fiber textile, chemistry, plastic process, large-scale machinery, hotel, residence.
Sieve Bend Screen Filter Working principle:

The main body of Sieve Bend Screen Filter is made by wedge shape steel bar, and process as a arc or flat filter sieve of stainless steel filter flat sifter. After the sewage evenly distribute on the inclined sifter by the down flow weir.
Because of the gap of screen surface is small, smooth, and easy to drain away water, no obstruction; the solid object is retained, the water come through the gap. At the same time, under the water power, the solid object expels from the bottom of the sifting plate, then it can achieve goal for divide the solid and liquid.
Sieve Bend Screen Filter Technical parameters:

Model	LS-400	LS-550	LS-700	LS-1000	LS-1400	LS-1700	LS-2000	LS-2300	LS-2700
Sieve plate width (mm)	350	520	650	940	1340	1630	1920	2220	2640
Sieve plate length(mm)	900	900	950	1000	1200	1280	1350	1500	1600
Width (mm)	400	550	700	1000	1400	1700	2000	2300	2700
High (mm)	1200	1250	1300	1380	1500	1550	1650	1700	1900
Inlet (DN)	50	65	80	80	100	125	150	200	250
Outlet (DN)	80	100	125	150	200	250	300	350	250x2
Slot 0.3mm Capacity (m3/h)	10	20	45	75	100	130	180	250	310
Slot 1.0mm Capacity (m3/h)	30	50	80	110	180	220	295	360	420

*Above parameters only for reference, customized available for detailed requirements
