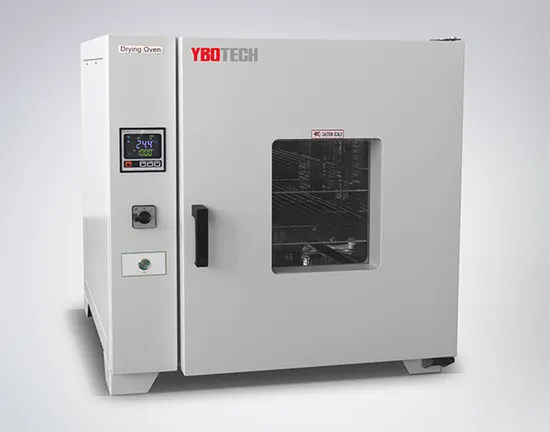

Laboratory Forced Air Drying Oven Vacuum Drying Oven LCD Display

US$1,500.00-1,800.00 1 Piece (MOQ)

Basic Info.

Model NO.

LDO-9123A

Application

Industry, School, Hospital, Lab

Customized

Certification

CE, ISO, RoHS

Structure

Desktop

Material

Stainless Steel

Operational Method

Continuous

Type

Drying Oven

Temperature Range

Rt+5~300ºC

Temperature Fluctuation

±1ºC

Temperature Uniformity

±2.5ºC%

Temp. Resolution

0.1ºC

Timer

1~9999m

Power Supply

AC220V,50Hz

Power Rating

900W

Chamber Size

50×50×65

Exterior Size

69×69×118

Shelf(Std/Max)

3/13

Transport Package

Wooden Box

Specification

138L

Trademark

YBOTECH

Origin

China

HS Code

8419899090

Production Capacity

10000PCS/Month

Product Description

Feature:
· Horizontal forced air type,good temperature uniformity.
· Microprocessor controller(with temperature correction and timing function), accurate and reliable.
· Large LCD screen display.
· High quality stainless steel chamber, removable shelf, easy-to-clean.
· Equipped with multiple sets of heaters.(For LDO-101 Series)
· Adopt temperature selection switch which can select the grade according to the heating speed and operating temperature. (For LDO-101 Series)
· Silicon sealing ring for reliable sealing.
· Equipped with leakage protection.
· Equipped with spare temperature control which ensures the product work normally even the main temp.control failed.
· Optional printer or RS485 interface which can print or connect computer for remote control and alarm.
· Anti-hot handle
Technical Parameters
1. Temp. fluctuation:±1ºC .
2. Temp. uniformity:±2.5ºC %.
3. Temp. resolution:0.1ºC
4. Timer:1~9999m
Options
1. Multi-segment programmable control
2. Built-in Printer
3. RS485 interface
Specification:

Model	Volume (L)	Chamber Size (W×D×H)cm	Exterior Size (W×D×H)cm	Package Size (W×D×H)cm	Power Rating (W)	Temp. Range(ºC)	Shelf Std./Max	Net/Gross Weight(kg)	Power Supply	Shape
LDO-101-0	43	35×35×35	64×50×60	75×63×77	1300	RT+5-300	2/4	40/60	AC 220V, 50HZ	Vertical
LDO-101-1	81	45×40×45	73×53×69	85×66×86	2000		2/6	55/85
LDO-101-2	138	50×50×55	78×69×80	90×76×98	2500		3/7	80/115
LDO-101-3	252	60×60×70	88×73×95	100×86×110	3500		3/10	110/150
LDO-101-4	640	80×80×100	108×93×125	120×108×143	5500		4/15	170/250	AC 380V, 50HZ
LDO-101-5	960	100×80×120	128×98×145	142×108×165	7000		5/18	250/340	AC 380V, 50HZ
LDO-9023A	25	30×30×28	58×50×45	70×60×60	320	RT+5-200	2/4	29/36	AC 220V, 50HZ	Horizontal
LDO-9053A	54	42×37×35	71×56×42	82×66×69	600		2/5	35/43
LDO-9123A	138	50×50×55	83×61×72	95×76×98	1200		3/7	45/55
LDO-9203A	252	60×60×70	88×78×82	98×78×95	1600		3/10	60/69
LDO-9030A	31.5	30×30×35	45×47×70	53×53×77	700	RT+5-200	2/5	29/37	AC 220V, 50HZ	Vertical
LDO-9070A	72	40×40×45	55×60×80	59×61×84	1000		2/7	45/52
LDO-9140A	136	45×55×55	64×73×90	65×76×94	1600		3/8	45/56
LDO-9240A	225	50×60×75	88×72×93	83×86×123	2000		3/11	62/70
LDO-9420A	429	60×55×130	78×71×170	93×81×178	2600		4/6	130/153	AC 380V,50HZ
LDO-9620A	624	80×60×130	98×80×178	113×86×188	3600		5/6	168/186	AC 380V,50HZ
LDO-9036A	31.5	30×30×35	45×47×70	53×53×77	950	RT+5-300	2/5	29/37	AC 220V, 50HZ
LDO-9076A	72	40×40×45	55×60×80	59×61×84	1400		2/7	40/50
LDO-9146A	136	45×55×55	64×73×90	65×76×94	2000		3/8	45/56
LDO-9246A	225	50×60×75	69×77×114	83×86×123	2600		3/11	62/70
LDO-9426A	429	60×55×130	78×71×170	93×81×178	3500		4/6	130/153	AC380V,50HZ
LDO-9626A	624	80×60×130	103×80×178	113×86×188	5700		5/6	168/186	AC380V,50HZ
