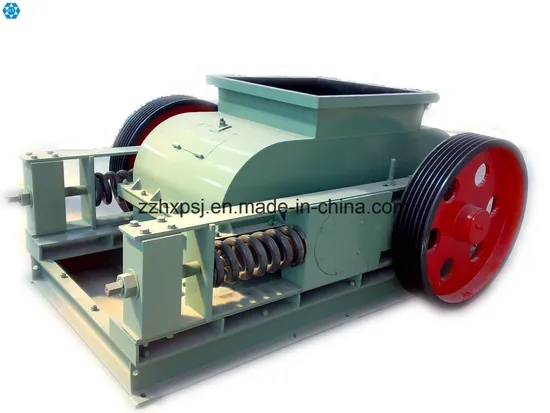

Double Teeth Roller Crusher for Coal Crushing

Product Description

Double Toothed Roller Crusher: Toothed Roller Crusher Processing ability: 70-460 t/h
Feeding granularity: 100-800 mm
Dimensions: 2100×2450×2000-2500×4360×2400 mm
Applied material: coal, pebble, perlite, limestone
Toothed roll crusher is mainly composed of driving tooth, reducer, hydraulic coupler, electromotor, motor-driven fuel feed pump, passive toothed roll, arch toothed plate, side toothed plate, and side toothed plate base, lower frame and velometer.
Toothed roll crusher mainly splits and crushes the materials using unique wear-resisting toothed roll rotating with high speed, forming high-productivity mechanism. This toothed roll crusher is mainly composed of driving device, rack part, crushing roll, and mechanical spring device and link gear. Toothed roll crusher has very big crushing ability, and the electromotor is connected with the reducer with Limit type hydraulic coupler to prevent dynamic overload, so that the sensor is safe and reliable. The adjustment of the space between the two rolls belongs to hydraulic adjustment and the bearing of the rolls are lubricated centrally.
Techncial Parameters:

Model	Roller diameter (mm)	Roller length (mm)	Max. Feeding Size (mm)	Discharging size(mm)	Output (t/h)	Motor power (kw)	Total weight(t)	Overall dimension (L×W×H) (mm)
2PGC600×500	600	500	200-450	15-100	30-60	7.5×2	3800	2450×1800×950
2PGC600×800	600	750	300-600	20-120	60-100	11×2	7200	4500×1900×1350
2PGC800×1000	800	1000	500-800	30-150	100-160	22×2	12600	2550×2050×1100
2PGC1000×1000	1000	1000	700-950	30-200	150-200	45×2	18800	2780×4100×1550
2PGC1200×1200	1200	1200	800-1050	30-200	180-250	55×2	29500	2780×3200×1980
2PGC1500×1200	1500	1200	1000-1150	30-200	200-300	75×2	38600	8010×4500×2050
