Cargo Elevator, Cargo Lifting Platform, Frame Structure Elevator

Product Description

Cargo Elevator Product Description For workshop or building where confined space can only provide, our hydraulic cargo elevator system is a very useful solution. This system contains an hydraulic statation, working platform, guide rail, lifting chain, steel frame and control system. it is a non-scissor elevator, but it is more effecient working platform. It can convey cargos from one floor to another another with smooth speed, and the maximum floors it could be transfor is 8 floors (27m) and maximum capacity is 10t.

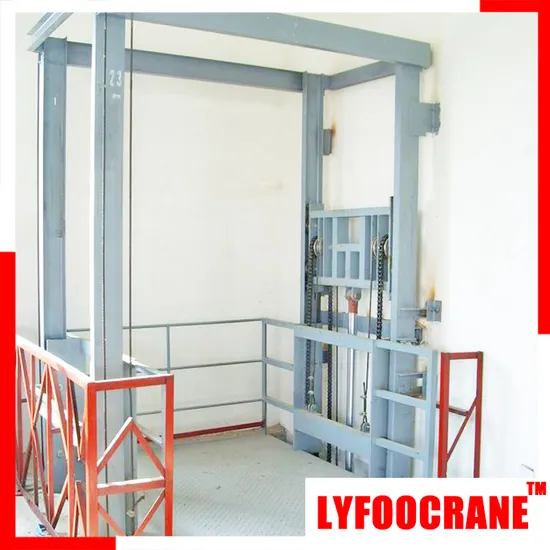

Detailed Photos
Application:

- Installed in the pit or the ground floor to convey the goods from one working level to another.
- Indoor or outdoor is OK. With heavy duty, safe and reliable.
- The lift could be controlled at any floor. Control panel is available at each floor and one is on the lift platform.
The electrical hydraulic system pushes the 2 cylinders of working platform roof, while, the 4 wire ropes keep balance. The working platform runs on the rails by the 4 wheels of each corner. By travelling limit switches on each floor, the working platform can be stop on the certain follow with a precisely posiion. This is achieved by a control system on each floor and inside of the working platform.
Safety:
The safety of the elevator is overall considered by the designing. We adopts the top brand of hydraulic station from Wuxi and high quality cylinder and pipes from Hebei. A pipe fracture vavle will prevend the working platform falling down in case of the pipe is failed. In this case, a manual relase value can make the working platform going down to the ground safely. The overflow valve is superviing and preventing any over pressue. Over temperatutre on the hydralic station give a signal if the oil is over heated.

Technical Parameter

Specification	Liting height (mm)	Lowered height (mm)	Capacity (Kg)	Platform size (L*W, mm)	Power (Kw)
LISJD0.3-4.5 (2 floor)	4500	150	300	1000x800	1.5
LISJD0.5-4.5 (2 floor)	4500	150	500	1500x1000	1.5
LISJD1.0-4.5 (2 floor)	4500	150	1000	1500x1500	2.2
LISJD2.0-4.5 (2 floor)	4500	150	2000	2000x1000	2.2
LISJD3.0-4.5 (2 floor)	4500	150	3000	2000x1200	3.0
LISJD0.3-7.5 (3 floor)	7500	150	300	1000x1000	1.5
LISJD0.5-7.5 (3 floor)	7500	150	500	1200x1200	1.5
LISJD1.0-7.5 (3 floor)	7500	150	1000	1800x1400	2.2
LISJD2.0-7.5 (3 floor)	7500	150	2000	2000x1500	2.2
LISJD03.0-7.5 (3 floor)	7500	150	3000	2000x1600	3.0
LISJD1.0-10.5 (4 floor)	10500	150	1000	1800x1400	3.0
LISJD1.0-14 (5 floor)	14000	150	1000	1800x1500	4.0
LISJD03.0-4.5 (car lifting)	4500	150	3000	6000x3000	4.0
