Selling MD45 High Precision Lathe High Quality Manual Drilling Milling Machine

Product Description

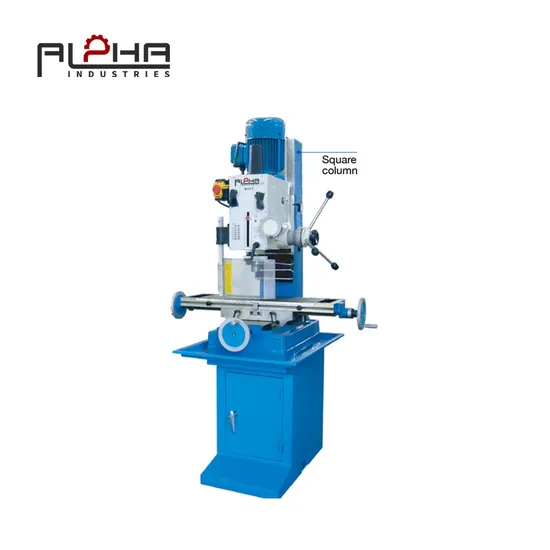

Product Description High Quality Manual Drilling Milling Machine MD45
* Milling, drilling, tapping, reaming, boring.
* Spindle box can rotate and tilt.
* Spindle micro feed (automatic feed is optional).
* Supporting Spindle with Strong High Load Tapered Bearing.
* The spindle can be locked and the head can be.
* Elevated and lowered electronically.
* Adjustment of Workbench Gap Insert.
* Limited position of worktable is adjustable.
* Gear gearbox drive.
* Accurate positioning, strong rigidity and high cutting force.
Product Parameters

Model NO.	MD45	Controlling Mode	Artificial
Automatic Grade	Manual	Precision	High Precision
Certification	CE, ISO 9001	Condition	New
Specification	850x760x1150 mm	Trademark	Alpha industries
Origin	China	Production Capacity	100 Sets/Year

Technical Parameters
Model No.	Unit	MD45
Max. drilling capacity (Iron/Steel)	mm	Φ45 /Φ32
Max. milling capacity (Face milling)	mm	Φ80
Max. milling capacity (End milling)	mm	Φ32
Work table size	mm	800x240
Cross/longitudinal travel work table	mm	190/560
Spindle taper		MT4 or R8
Spindle travel	mm	120
Spindle speed	rpm	75, 170, 280, 540, 960, 1600
Max. distance spindle to table	mm	460
Head tilt left/right	°	±45°
Power and speed of motor	kw/rpm	1.5/1450
N.W/G.W	kg	325/350
Packing size	mm	850x760x1150
Standard Accessories
Tools and toolbox	Drill chuck	Draw bar
800*240mm work table

Optional Accessories
1000*240mm work table	CE spindle protection power off
Automatic spindle feed	Halogen work lamp
LED work light	Tapping
Steel foot stand(separate package)	Steel foot stand(complete package)
Iron casting foot stand	X axis auto feed
Y axis auto feed	Coolant system
Electronic depth display	Double speed motor
ISO 30 spindle	SINO 3 axis DRO

Company Profile
Certifications
Exhibition
Packaging & Shipping
FAQ
FAQs
Q1: How is the warranty?
A1: Warranty time is 15 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: We have stock for popular models, we produce according to order.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 40 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services under Alpha brand.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
