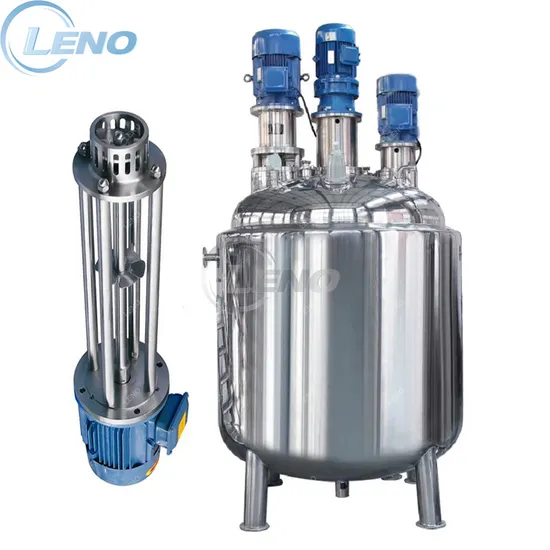

Stainless Steel Liquid Soap Mixing Machine Detergent Mixer Emulsifying Tank
| US$1,000.00-3,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
LNP-2001
Application Area
Food
Certification
CE, ISO
Condition
New
Main Material
Stainless Steel
Mixing Drum Shape
Disc
Stirring Type
Stir
Working
Blend
Material
Stainless Steel 304/316L
Function
Heating Cooling
Product Name
Mixing Equipment
Machine Type
Dispersion Blender Mixer Machine
Mixer Type
Agitator
Layout Type
Verticle
Operating type
Continuous Operating
Transport Package
Plywood Case
Specification
50-30000L
Trademark
LENO
Origin
China
HS Code
8479820090
Production Capacity
100 Set/Month
Product Description
| Mixing Tank Homogenizer Tank Emulsify Tank | |||
| Profile/type | Single layer tank | Double layer tank | Three layer tank |
| material | SS304 or SS316L | ||
| Volume | 50L-20T (Customized) | ||
| Pressure | Vacuum-1Mpa | ||
| Tank Type | Vertical type or Horizontal type | ||
| Structure | one layer | Inner layer+jacket | inner layer+jacket+insulation |
| Cooling way | No | ice water /cooling water | ice water /cooling water |
| heating way | No | electric/steam heating | electric/steam heating |
| Agitator type | No | low speed | High speed |
| No | 0-200RPM | 960-3400RPM | |
| PARTS DETAILS | 1.Quick open manhole / Pressure manhole | ||
| 2.Various types of CIP cleaners | |||
| 3.Sterile respirator | |||
| 4.Adjustable Legs | |||
| 5.Inlet and Outlet sanitary valve | |||
| 6.Thermometer (According to customer requirements ) | |||
| 7.Paddle blender .(According to customer requirements) | |||
| 8.Liquid level meter and lever controller (According to customer requirements) | |||
| 9.Ladder | |||
Used as blending tank,mixing tank,preparation tank fermentation tank and disinfection tank.
Ideal in fields such as food,dairy products,fruit juice beverages,pharmacy,chemical industry and biological engineering etc.
| Model | Effective volume(L) | Dimension of tank (D*H)(mm) | Total Height(mm) | Motor power(kw) | Agitator speed(r/min) |
| LNT-500 | 500 | Φ800x900 | 1700 | 0.55 | 0-63 |
| LNT-1000 | 1000 | Φ1000x1200 | 2100 | 0.75 | |
| LNT-2000 | 2000 | Φ1200x1500 | 2500 | 1.5 | |
| LNT-3000 | 3000 | Φ1600x1500 | 2600 | 2.2 | |
| LNT-4000 | 4000 | Φ1600x1850 | 2900 | 2.2 | |
| LNT-5000 | 5000 | Φ1800x2000 | 3150 | 3 | |
| LNT-6000 | 6000 | Φ1800x2400 | 3600 | 3 | |
| LNT-8000 | 8000 | Φ2000x2400 | 3700 | 4 | |
| LNT-10000 | 10000 | Φ2100x3000 | 4300 | 5.5 | |
| We can customize the equipment according to customer requirements. | |||||
| Q1 | Are you trade or manufacturer? |
| A | We are a factory with an international sales company specialized in support for global distributors. |
| Q2 | Can you provide instant technical consulting services? |
| A | We are able to discuss technical details and offer suggestions over the phone in English. You can get the answers in minutes, instead of days. |
| Q3 | What's the difference between Ready-To-Ship and Customized products? |
| A | Some of RTS standard products are in stock and ready to ship in 2-3 days. We can also quick design and make the drawings for customer requirements, then begin the production. |
| Q4 | What is the payment terms? |
| A | We accept ****** Trade Assurance Order, also can T/T and L/C. |
| Q5 | How to choose the shipment way? |
| A | It is according to the order quantity, delivery time, costs and customs policy etc. (Or decide by customers) |
| Q6 | How about the after-sales service? |
| A | Fast after-sales support. Our products have a one-year warranty and free permanent consulting services. |
