Professional Customized Pellet Press Ring Die Matrix

Product Description

Product Description

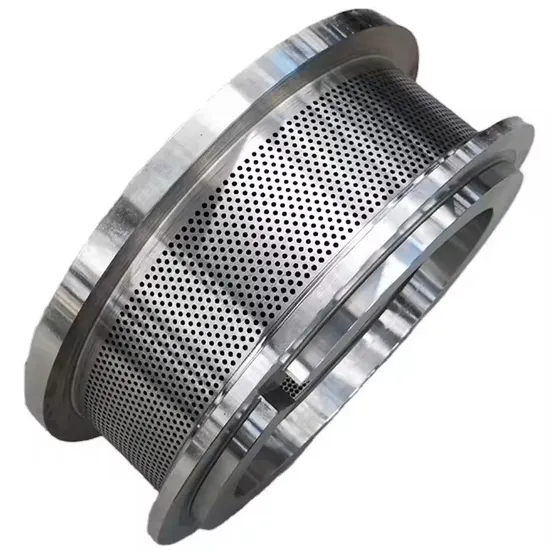

Customized Hot Sale alloy steel ring die stainless steel ring die
Introduction for our pellet mill ring die factory
We are a professional manufacturing factory for all kinds of wood pellet mill and feed pellet mill ring die, roller, roller assemble and so on.
Ring die is very important part of ring die pellet machine in the whole manufacturing process.
The quality of ring die not only directly relates with the quality and output of pellets, but also the running state of equipment and maintenance cost.

Range of ring die spare parts' Application
Applicable for Biomass pellet machine: wood pellet mill, sawdust pellet mill, grass pellet mill, straw pellet mill, crop stalk pellet machine, alfalfa pellet mill etc.
Applicable for Fertilizer pellet machine, all kinds of animal/poultry/livestock feed pellet machine too.

Introduction of pellet machine ring die
1. Material of the ring die: X46Cr13 /4Cr13(stainless steel), 20CrMnTi (alloy steel) or customized
2. Hardness of ring dies: HRC54-60.
3. Diameter of ring die can do: 1.0mm up to 28mm
4. Pellet die type can do: Ring Die or Flat Die
5. Outer diameter can do: Outer diameter up to 1800mm
6. Pellet Die model we can customize:
CPM, CPP, OGM, Zhengchang(SZLH/MZLH), Amandus Kahl, Muyang(MUZL), Yulong(XGJ), AWILA,PTN, Andritz Sprout, Matador, Paladin, Sogem, Van Arssen, Yemmak, Promill; etc.
We can customize for you according to your drawing.

Process for making pellet mill ring dies
Blank raw material Forging---Rough turning---Half finished turning---Drilling the hole---Grinding inner bore---Treaded hole--- Keyway milling---Heat treatment---Finish turning---Package

Compression Ratio of Ring Die
Generally speaking, the higher the compression ratio, the denser the finished pellets. But it does not mean that the higher the compression ratio, the better the pellet quality.
Compression ratio should be calculated based on raw material for making pellets and type of feed.
With many years pellet die manufacturing and research experience of WEIFENG Company, we provide some general data of ring die's compression ratio for your reference:
Buyers can customize dies with different hole diameter and compression ratio, according to different situation and requirement.
Product Parameters

Item	Hole Diameter	Compression Ratio
Poultry&livestock feed pellet	2.5mm - 4mm	1:4-1:11
Fish feed pellet	2.0mm - 2.5mm	1:12-1:14
Shrimp feed pellet	0.4mm - 1.8mm	1:18-1:25
Biomass wood pellet	6.0mm - 8.0mm	1:4.5-1:8

The most common structure of die hole are straight hole; release stepped hole; external conical hole and internal conical hole, etc. Different die holes structure are suitable for different raw material and feed formula for making pellets. Our Advantages
Why choose us
1.We have our own ring die gun-drilling machines (import from German)
2.Using vacuum heat treatment machines, so the ring die will be more firm
3.New advanced hole designing, ensure the pellets can be made out smoothly, and special holes (row) arrangement, ensure the capacity can be enhanced 20%, the same time prevent broken
4.Our ring die raw material come from China No.1 steel forging factory, the using life can be enhanced about 10%-15%
5.Our workers all have over 20 years experience. Every year exported over 5000 pcs ring die Company Profile
Packaging & Shipping
Packed in wooden case or steel case
