CNC Flat Bed Lathe Machine (CK6130S - CK6140S)

CNC Flat Bed Lathe Machine (CK6130S - CK6140S)

US$6,000.00-30,000.00 1 Set (MOQ)

Basic Info.

Model NO.
CK6130S - CK6140S
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Performance Classification
Economical CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Flat Bed
400X1000mm
Maximum Turned Length
500 mm
Over Bed
300mm
Tool Cross Section
16× 16 mm
Max. Traverse
130mm
Spindle Nose
D4 or A2-5
Power of Main Motor
3kw(4HP)/3.7kw(5HP)
Range of Spindle Speed
200~3500r/Min
Transport Package
Wooden Cases
Specification
CE, ISO9001
Trademark
uni-tech
Origin
China
HS Code
84581900
Production Capacity
50sets/Month

Product Description

CNC lathe mahine
Flat bed CNC lathe machine
CNC lathe machine CK6140S
1) Ball leadscrews
2) Repeated positioning accuracy
3) Variable speed change fo spindle
CNC lathe machine CK6140S
This machine is a CNC lathe controllled by a microcomputer and driven by servo motors. It is suitable for turning cylindrical and taper faces, boring, grooving and cutting threads (including taper threads).
*The machine adopts ISO International Code, Keyboard Manual Date input, and it is also provided with program of power cut-off protection and the functions of automatic diagnosis and with RS232 interface.
*Longitudinal and cross feeds are effected by ball leadscrews driven by servo motors.
*Either vertical or horizontal 4 station or 6 station tool post or gang tools can be selected. The post is located on precision contrate gears with a high repeated positioning accuracy.
*Hydraulic chuck, manual chuck, manual tailstock and hydraulic tailstock are available for your choice.

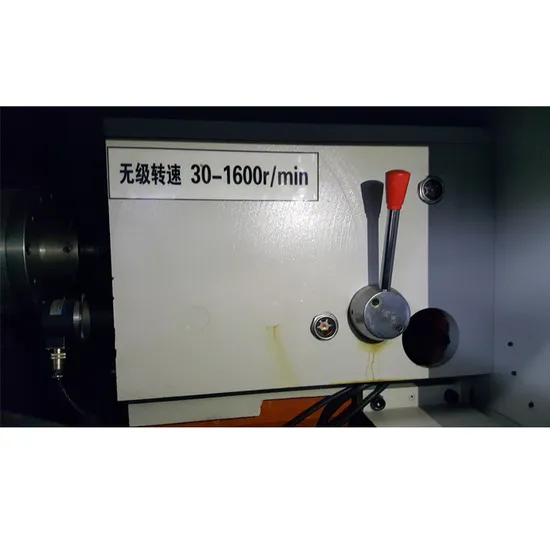

*Infinitely variable speed change for spindle.
ITEMS
CK6140/1000 CK6140/750
MAX.SWING OVER BED DIA. mm Φ400 400
BED WIDTH MM 400 300
X-AXIS GUIDE WAY SPAN mm 180 180
Z-AXIS GUIDWAY SPAN mm 400 300
MAX. SWING OVER CROSS SLIDE mm 180 140
DISTANCE BETWEEN CENTERS mm 1000 750
MAX. DISC DIA. PROCESSED 400
MAX TURNING LENGTH mm 830(6) /700(8) 500(6,8)
CENTER HIGHER TO BED WAY mm 210 230
TO FLOOR mm 1020 1020
SPINDEL BORE DIA. mm /Φ82 48
BAR DIA. mm /Φ65 40
WITH CYLINDER THROUG SPINDLE mm / Φ65 Φ40
/A2-8 A2-6
LATHE CHUCK mm 250MM/82DIA.SPIDLE STANDARDΦ200/DIA.48,
SPINDLE TAPER No 1:20(82 DIA.) 40"(DIA.48)
BAR THRONG DIA. AFTER 8 " HOLLOW CHUCK mm 40DIA.
MAX. SPINDLE SPEED rpm / 1600(82MM) 2000(48DIA. )
QUILL DIA. mm φ60 φ60
QUILL TAPER No MT5# MT4#
QUILL TRAVEL mm 120 120
TAILSTOCK TYPE MANUAL OR HYDRAULIC
TURRET 4( OPTIONAL 6/8
SHANK SECTION mm 20×20()
LEADSCREW MODEL X mm FDC2506-P3 PDC2506-P3
Z mm FDC4008-P3 FDC3210-P3
X/Z RAPID MOVING SPEED m/min 6/8 6/8
X-AXIS TRAVEL mm 220 220
Z-A-XIS TRAVEL mm 1000 650
MIN. SETTING UNIT mm 0.001 0.001
MAIN MOTOR POWRE KW 5.5(OPTIONAL 7.5kw) 5.5(OPTIONAL 7.5kw)
TOTAL POWER KW 11 11
TOTAL NET Kg 2300
OVERAL DIMENSIONS mm
