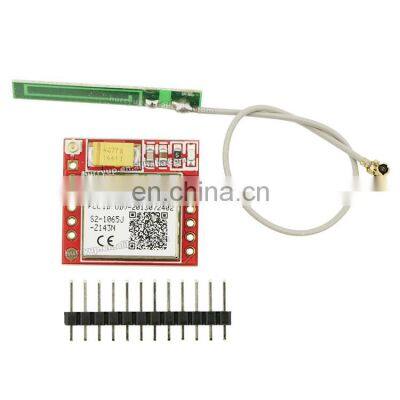

SIM800L GSM GPRS Module with PCB Board and Antenna

Product Description

Product Description
DescriptionSIMCOM SIM800L Quad-band GSM GPRS Module with PCB Board and Antenna• Module Type: SIM800L (latest module performance over SIM900 / M590);• Operating voltage: 3.7 ~ 4.2V (peak current 1A, please do processing);• Support Network: quad-band global network;• Module size: 2.5cmx2.3cm;• Serial to TTL serial port can be used with a direct link to the microcontroller;• The module is powered automatic start, homing network;• Onboard signal lights all the way (the signal slow flash, no flash signal);• The world's smallest size, by no less than the module of the GSM module;• Full chip processing machine, reflow soldering, stable performance Factory Outlet;• Lithium battery power supply can supply power directly, can also use the 5V power supply.General features• Quad-band 850/900/1800/1900MHz• GPRS multi-slot class 12/10• GPRS mobile station class B• Compliant to GSM phase 2/2+– Class 4 (2 W @ 850/900 MHz)– Class 1 (1 W @ 1800/1900MHz)• FM: 76~109MHz worldwide bands with 50KHz tuning step• Control via AT commands (3GPP TS 27.007, 27.005 and SIMCOM enhanced AT Commands)• Supply voltage range 3.4 ~ 4.4V• Low power consumption• Operation temperature:-40°C~85°C• AT cellular command• Certifications(Plan): CE, GCF, FCC, ROHS, REACHWhy Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Coaxial / ConnectorSIMCard HolderSensorIC
