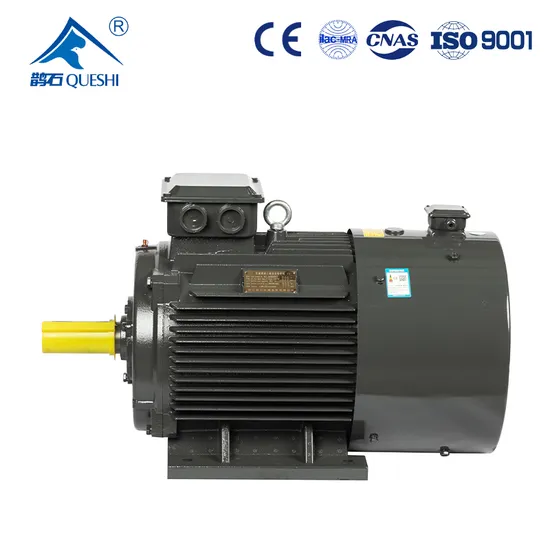

Frequency Conversion Electrical Motor Adjustable Speed AC Asynchronous Motor
| US$500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
YVP Frequency conversion motor
Number of Poles
2
Starting Mode
Direct on-line Starting
Certification
ISO9001
Protection Level
IP55/IP65
Installation Mode
B3/B5/B35
Frequency
50Hz
Transport Packaging
Cartons, Wooden Boxes, Wooden Shelves
Insulation Grade
F/H
Case Material
Aluminum Shell, Iron Shell
Use Temperature
Minus 20-80 Degrees
Cooling Mode
IC411
Transport Package
Packing in Wooden Cases
Specification
Cast iron casing/Pure Copper Core/Cold-rolled sili
Trademark
Zhejiang Queshi Explosion proof Motor Co., Ltd
Origin
Zhejiang Province, China
HS Code
0101101010
Production Capacity
5000
Product Description
YE4 series super efficient three-phase asynchronous motorPRODUCT OVERVIEW YVP series frequency-variable and speed-adjustable three phaseasynchronous motor aresuitable for running in frequency changeand speed regulation system which the power issupplied by a frequency converter. This new series of product desingned unitedly in the countrycan be mated with all kinds of SPWM frequency changer and speed regulation devices andis equipped with a separate cooling fan which ensure the motor for good cooling at variousspeed,They can be used in machine tool,metallugic industry,textile,printing and dyeing,transportation,chemical industry,mine and for seep regulation of fans and pumps.
Operating conditions
Ambient temperature:-15°C≤0≤40°C
Altitude:not exceeding 1000m
Rated voltage: 380V or any voltage between 220-760V
Ratedfrequency:50Hz,60HZ
Protectionclass:lP55
Insulation class:F,H
Coolingmethod:lC0141
Duty:Sl(continuous)
Connection: Star-connection for up to 3kw,
delta-connection for 4kw and above. Zhejiang Queshi Explosion Proof Motor Co., Ltd. Factory shoot
Product parameters
| Type No. | Rated Power(KW) | Speed | Currentin | Efficiency | POWERFACTOR | Rated Current Ist/IN | Rated farqueTst/TN | Rated torqueTmaxTN | |
| YE3-80M1-2 | 0.75 | 2830 | 1.77 | 80.7 | 0.83 | 6.1 | 2.2 | 2.3 | |
| YE3-80M2-2 | 1.1 | 2830 | 2.5 | 82.7 | 0.84 | 7.0 | 2.2 | 2.3 | |
| YE3-90S-2 | 1.5 | 2840 | 3 34 | 84.2 | 0.84 | 7.0 | 2.2 | 2.3 | |
| YE3-90L2 | 2.2 | 2840 | 4.73 | 85.9 | 0.85 | 7.0 | 2.2 | 2.3 | |
| YE3-100L2 | 3 | 2870 | 6.19 | 87.1 | 0.87 | 7.5 | 2.2 | 2.3 | |
| YE3-112M-2 | 4 | 2890 | 8.05 | 88.1 | 0 88 | 7.5 | 2.2 | 2.3 | |
| YE3 132S1-2 | 5.5 | 2900 | 10.9 | 89.2 | 0 88 | 7.5 | 2.2 | 2.3 | |
| YE3-132S2-2 | 7.5 | 2900 | 14.7 | 90.1 | 0 88 | 7.5 | 2.2 | 2.3 | |
| YE3-160M1-2 | 11 | 2930 | 21.0 | 91.2 | 0.89 | 7.5 | 2.2 | 2.3 | |
| YE3-160M2-2 | 15 | 2930 | 28.4 | 91.9 | 0.89 | 7.5 | 2.0 | 2.3 | |
| YE3-160L2 | 18.5 | 2930 | 34.4 | 92.4 | 0.9 | 7.5 | 2.0 | 2.3 | |
| YE3-180M-2 | 22 | 2940 | 40.7 | 92.7 | 0.9 | 7.5 | 2.0 | 2.3 | |
| YE3-200L1-2 | 30 | 2950 | 55.1 | 93.3 | 0.9 | 7.5 | 2.0 | 2.3 | |
| YE3-200L2-2 | 37 | 2950 | 67.5 | 93.7 | 0.9 | 7.5 | 2.0 | 2.3 | |
| YE3-225M-2 | 45 | 2970 | 81.8 | 94.0 | 0.9 | 7.5 | 2.0 | 2.3 | |
| YE3-250M-2 | 55 | 2970 | 99.6 | 94.3 | 0.9 | 7.5 | 2.0 | 2.3 | |
| YE3-280S-2 | 75 | 2970 | 135 | 94.7 | 0.91 | 7.5 | 2.0 | 2.3 | |
| YE3-280M-2 | 90 | 2970 | 160 | 95.0 | 0.91 | 7.5 | 2.0 | 2.3 | |
| YE3-315S-2 | 110 | 2980 | 195 | 95.2 | 0.91 | 7.1 | 1.8 | 2.2 | |
| YE3-315M-2 | 132 | 2980 | 233 | 95.4 | 0.91 | 7.1 | 1.8 | 2.2 | |
| YE3-315L1-2 | 160 | 2980 | 279 | 95.6 | 0.92 | 7.1 | 1.8 | 2.2 | |
| YE3-315L2-2 | 200 | 2980 | 348 | 95.8 | 0.92 | 7.1 | 1.8 | 2.2 | |
| YE3-355M2-2 | 250 | 2980 | 435 | 95.8 | 0.92 | 7.1 | 1.6 | 2.2 | |
| YE3-355L-2 | 315 | 2980 | 548 | 95.8 | 0.92 | 7.1 | 1.6 | 2.2 |
