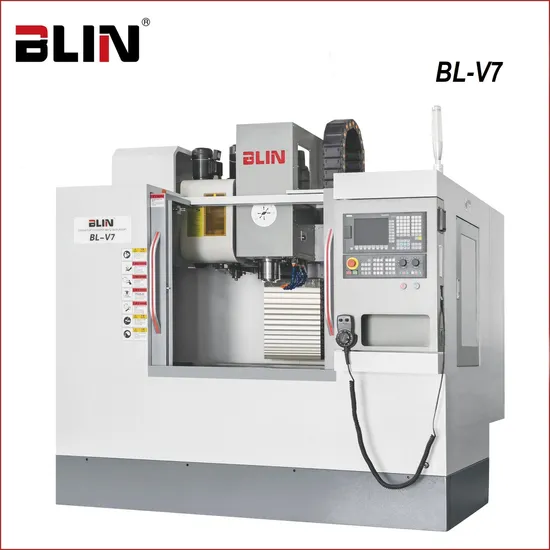

4 Axis Desktop Mini CNC Milling Machine for Sale (BL-V7)
| US$26,000.00-29,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
BL-V7
Type
Worktable Milling Machine
Object
Hardware
Structure
Desktop
Milling Cutter Type
Angle Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
CNC
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Table Size
900*400mm
X/Y/Z Axes Travel
720/450/470mm
Spindle Type
Bt40
Spindle Motor
5.5kw
Spindle Speed
8000/10000/12000rpm
Tool Maganize Type
12t Umbrella/16t Arm
X/Y/Z Axes Rapid Movement Speed
36/36/30 M/Min
Positioning Precision
±0.005mm
Repeatable Positioning Precision
±0.003mm
CNC Controller
Siemens 808d Advanced/828d/Fanuc 0I Mf
Transport Package
Wooden Case
Specification
BL-V7
Trademark
BLIN
Origin
China
HS Code
8459619000
Production Capacity
500 Units/Year
Packaging & Delivery
Package Size
250.00cm * 320.00cm * 250.00cm
Package Gross Weight
250.000kg
Product Description
4 Axis desktop mini CNC Milling Machine for sale (BL-V7)
-Suitable for medium-sized cutting
-3 axes adopt high precision linear guideway
-Designed by GERMAN engineer
-Whole production process accord to TAIWANESE standard
-Chips outlet set at back of machine
-Most parts adopt GERMAN/JAPANESE/TAIWANESE brand
-High speed, high precision, long using lifespan
-Adopt HT300 high class cast iron,after aging treatment and FEA analysis
-Bridge shape column, high rigidity, high stability
-3 axes use C3 class precision ball screw, match up nut preloading and ball screw pre-stretching, pre-eliminate backlash and temperature rising, ensure stable positioning and repeatable positioning precision
Details:
| Item | Specification | Unit | BL-V7 |
| Worktable | Table size | mm | 900×400 |
| Table max. loading | kg | 300 | |
| T slot(NO./width/gap) | mm | 3/14/100 | |
| Travel | X/Y/Z axes | mm | 720/450/470 |
| Spindle | Distance from spindle nose to table surface | mm | 120~590 |
| Distance from spindle center to column surface | mm | 440 | |
| Spindle type | mm | BT40/Φ120 | |
| Spindle motor | kw | 5.5 | |
| Spindle speed | rpm | 8000(option:10000 belt-drive/12000 direct-drive) | |
| Feeding axes | Cutting feed speed | m/min | 10 |
| X/Y/Z axes rapid moving speed | m/min | 36/36/30 | |
| X/Y/Z axes feeding motor | Nm | 6/6/11(SIEMENS 808D ADVANCED) | |
| X/Y/Z axes ball screw dia./pitch | mm | 32/16 | |
| X/Y/Z axes linear guideway width | mm | 30/30/30 | |
| Precision | Positioning precision | mm | ±0.005 |
| Repeatable positioning precision | mm | ±0.003 | |
| Tool magazine | Tool magazine type | / | Arm type 16T |
| Max. tool weight | kg | 8 | |
| Max. tool length | mm | 200 | |
| Max. tool dia.(fully loaded) | mm | Φ80 | |
| Max. tool dia.(no adjacent tool) | mm | Φ150 | |
| Tool changing time | / | Tool to tool: 1.8s | |
| Others | Overall dimension(L×W×H) | mm | 2220×2000×2160 |
| Weight | kg | 3200 |
Main parts brand:
| Item | Brand |
| Spindle bearing | JAPAN-NSK |
| Ball screw bearing | TAIWAN-TPI |
| Ball screw | JAPAN-THK/TAIWAN-HIWIN |
| Linear guideway | JAPAN-THK/TAIWAN-HIWIN |
| Spindle unit | TAIWAN-VYU CHENG |
| Tool magazine | TAIWAN-OKADA |
| Booster cylinder | TAIWAN-HAOCHENG |
| Pneumatic parts | TAIWAN-AIRTAC |
| Electric parts | FRANCE-SCHNEIDER |
| Lubrication pump | TAIWAN-BEISUN |
Standard Configuration: -SIEMENS 808D ADVANCED CNC Controller
-16T ARM type tool magazine
Optional configuration: -SIEMENS 828D/FANUC 0I MF CNC Controller
-12T Umbrella type tool magazine
-4th axes
-Tool setting probe
-CTS(coolant through spindle)
