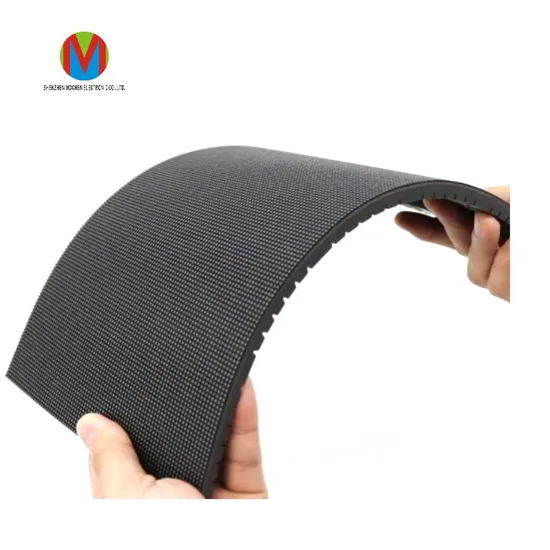

Mzcled OEM ODM Factory 320*160mm Size Full Color P2 P2.5 P3 P4 Indoor Soft Curved Flexible LED Screen Panel for Digital Signage Display

Product Description

1.Product Specification:

MCLED HD P1.5 P1.8 P2 P2.5 Soft GOB LED Module
1	HD small pixel LED display	P1.25 / P1.5 / P1.6/ P1.8/ P1.9
2	Hot rental LED display	P2.604 /P2.976 /P3.91
3	Outdoor fixed LED display	P2.5 /P3 / P4/P5 /P6 /P8 /P10 /P16 /P20
4	LED Control System	Nova Star / LINSN /Colorlight /Huidu
5	LED	Nation Star led lamp / Epistar chip from Taiwan
6	IC	2037 /2038s/ 2153 /2163 /6373 /16380
7	Power supply	Meanwell / G-energy
8	Cabinet kind	Iron /Aluminum /Die-casting /Fiber Aluminum
1	Pixel Pitch	P1.86 mm
2	Module Size	320*160mm
3	Pixel density	289,050 dots/m2
4	Color temperature	6000K--8000K
5	Viewing angle	H:140;V:140
6	Dead LED lamp rate	≤0.1‰
7	Non-Flatness	<0.2mm
8	Module interval	<0.2mm
9	Packaging Gross Weight(KG)	0.35 kg /pcs (Estimated data)
10	Caton Packaging dimension	60cm*35cm*39cm (36 pcs in one carton )
11	Max power/m2	800 W/m2
12	Brightness adjusted	256 grade by auto-optic/color &8 grade by hand
13	Input signal	RF,S-video,RGB,RGBHV,YUV,YC&Composition,etc
14	Life-span	≥1 00,000 hours
15	MTBF	5,000 hours
16	Frame frequency	50/ 60 Hz
17	Refresh rate	≥3,840 Hz
18	Signal Input(with video processor)	HDMI, DVI, VGA, RF, S-Video, RGB, RGBHV, YUV, YC&Composition, etc.
19	Control Distance	120 m (no repeating); Optical fiber transmission: 0.5km- 10km
20	Systems Operating Platform	Windows XP, Win 7, Win8, Win8.1, Win10

2. Detailed Images :
1. High refresh rate: With NOVA STAR control system, no scanning line when photographed.
2. High gray level: 256 RGB each ,display 16.7M colors ,vivid and perfect video effect

3.High resolution: The most apparent features of the new generation of LED display

4.Good color uniformity: With brand Lamp Nationstar and high refresh 16380 /6373 /2163 IC.

5. High Brightness: 500-11000 cd/m2 ,brightness automatically adjusted
6. High Quality: CE, RoHs, FCC passed + 96 Hours serious testing time

7. Long life span: over100,000hours, warranty from 2 to 5 years.

8. You need = We design : Provide Personal- Customized led offer .
MZCLED Free Accessories :
3. Package & Delivery :
4.Our Factory and Our Service :

A	96 Hours Serious Testing Time
B	72 Hours Display Testing Time
C	24 Hours Module Testing Time
D	China time 9:00 AM-23:00 PM After-sales online Service
E	2 Hours LED Inquiry Response Time
F	10+ years Professional LED display factory
G	10+ years Excellent Domestic Big Government LED Designer
H	10+ years Expanding International Trade Experience

5.Bulk Stock Module Ready for shipping !
6.FAQ :

Question 1: How can I trust your MZCLED factory ?

Answer : Yes, when you talk with us now , we are here . We do led since 2009 ,it is over 10+ years . In the past years , we develop so well. Tomorrow and future , we will largely expand our LED market, you will see it . Welcome to try our LED sample quality . We do have100% confidence in our LED product .

Quesiton 2: If I need led very urgently ,how fast can you finish the goods ?

Answer:How fast you want ?Three days ?One week ? Definite shipping date ? We produce LED everyday .We have some led modules in stock . Put the most urgent and important order at the first place . You are important to us .Surely to establish first-time good relationship . We do must finish it at FAST ROCKET TIME.

Q3: Is it easy to install this led display ?

Answer : If you are new to LED ,we will help you to know led from 0 to Professional . We have installation manual book and professional engineering team to guide you . To help you better understand LED is to make us get your earlier trust . If you knew LED before,we can learn from each other. We could be Future Shaking-hands Partners . Our engineering team remote help is ready for you at China time 9:00 AM- 23:00 PM .
