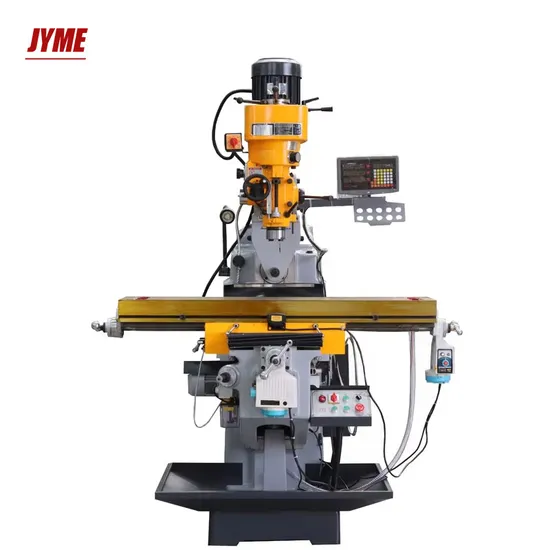

5h China Vertical Turret Milling Machine Price with CE
| US$2,800.00-2,900.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
5H
Power Source
Manual
Automatic Grade
Manual
Setting Mode
Table
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Table Size
1370X305mm
Table Travel
810/420/400mm
T Slot(Number-Width-Pitch)
3-16-65
Spindle Travel
127mm
Spindle Feed Range
0.04,0.08,0.15mm (3 Steps)
Main Motor Power
2.2(V)3(H)
Weight
1850kg
Overall Dimension
1550X1650X2250mm
Transport Package
Wood CTN
Trademark
JYME
Origin
China
Production Capacity
1000
Product Description
The milling machine is a kind of universal light duty metal cutting machine,Has two functions of vertical and horizontal milling, Milling medium, small parts of the plane, inclined plane, groove and spline etc.. Widely used in mechanical processing, mold, equipment, instrumentation and other industries.
Parameters:
| Specifications | Units | 4HW | 5HW |
| Table size | mm | 1270x254 | 1370x305 |
| Table travel | mm | 780/420/400 | 810/420/400 |
| T slot(number-width-pitch) | mm | 3-16-65 | 3-16-65 |
| Spindle taper | | (V) R8/ISO40 (H) ISO40 | (V) R8/ISO40 (H) ISO40 |
| Spindle speed range | rpm | (V) 50HZ:65-4500 60HZ:80-5440 (16 steps) (H) 45-1350(12steps) | |
| | | Optional(variable)65-4000 | |
| Spindle travel | mm | 127 | 127 |
| Spindle feed range | mm | 0.04,0.08,0.15 (3 steps) | 0.04,0.08,0.15 (3 steps) |
| Distance between spindle axis and table surface | mm | 0-400 | 0-400 |
| Main motor power | kw | 2.2(V)3(H) | 2.2(V)3(H) |
| Head rotation (left - right ) | ° | ±90° | ±90° |
| Head rotation (front - rear) | ° | ±45° | ±45° |
| Weight | kg | 1750 | 1850 |
| Overall dimension | mm | 1550x1650x2250 | 1550x1650x2250 |
