Rubber Silicone Baby Nipple Injection Molding Machine for Sale
| US$20,000.00-27,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
100T 200T 300T
Customized
Customized
Automatic Grade
Automatic
Structure
Vertical
Product Name
Rubber Injection Molding Machine
Type
General Rubber Machinery
Clamping Force
Customized
Plate Size
According to Clients Request
Weight
5000kg
Power
8.5kw
Voltage
220V-660V
Using Life
15 Years
Control Type
PLC Full Automatic
Press Structure
Column
Transport Package
Standard Wooden Case
Specification
National standards
Trademark
Zhihong
Origin
Qingdao of China
HS Code
8477800000
Production Capacity
20sets/Month
Product Description
Rubber Silicone Baby Nipple Injection Molding Machine for SaleUsage:
Silicone Rubber injection molding press machine mainly apply to molding of various rubber and Bakelite molding products, etc., especially products with high quality requirement, complex shapes, thick wall and inserts.
Features: The Rubber injection molding press is semi-automatic type,it is very easy to operate and lower invest cost. The machine should put certain material into the charging barrel by hand, then the material will be injected to per mold cavity automatically. The machine is suitable for solid rubber or solid silicone rubber material. High speed open/close molds, high production efficiency. Low clamping speed, protect mold. Automatic in/out mold and ejector device, low labor strength.
Technical Parameters:
Technical parameter | item | 100Ton | 200Ton | 300Ton |
| clamping force | 100Ton | 200Ton | 300Ton | |
| system pressure | 21mpa | 21mpa | 21mpa | |
| clamping stroke | 300mm | 300mm | 350mm | |
| Max. opening | 400mm | 600mm | 500mm | |
| fast raise speed | ≥60mm/s | ≥70mm/s | ≥60mm/s | |
| heater platen | 500*500mm | 600*600mm | 650*700mm | |
| max temp | 2500C | 2500C | 2500C | |
| motor power | 4+2.2kw | 5.5+3kw | 7.5kw | |
| oil tank capacity | 170L | 200L | 300L | |
| Overall dimension | 1600*1200*3000mm | 1800*2100*3000mm | 2300*2300*3300mm | |
| weight | 4000kg | 5000kg | 10000kg | |
| Shot capacity (Max.) | 900~1000ml | 1500ml | 2600mm( can customize 3000ml) |

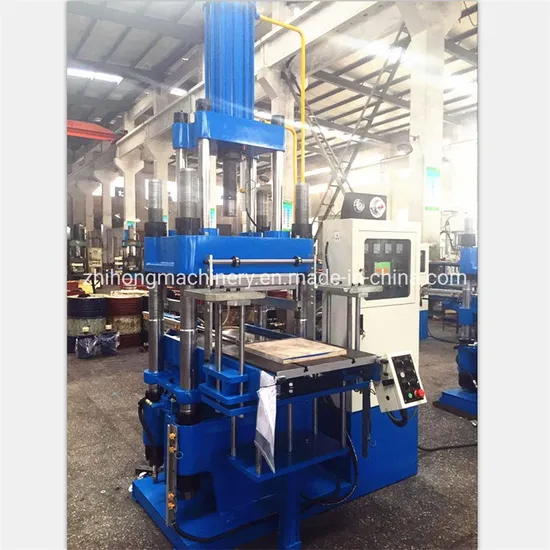

Product pictures:
Final products show:
