CNC Whirling Lathe Thread Milling Machine for Lead Screw Milling

Product Description

PH-100 CNC Whirling Machine
PH-100 CNC Whirling Machine The PH-100 CNC Whirling Machine, produced by Sunrise Mechatronic Technology Co., Ltd., is a state-of-the-art fourth generation spiral groove CNC milling machine. It has been designed and manufactured based on their extensive experience in complex special-shaped surface processing, catering to the market demands and development needs.
This machine is primarily used for processing the multiple-thread spiral flutes of the rotator and stator core of down-hole drill motors. Its advanced technology and precision ensure high-quality and efficient production.
Key Features:
Fourth generation spiral groove CNC milling machine
Designed and produced by Sunrise Mechatronic Technology Co., Ltd.
Based on years of experience in complex special-shaped surface processing
Meets market demands and development needs
Used for processing down-hole drill motor's rotator and stator core multiple-thread spiral flute
Advanced technology for high-quality and efficient production
Specifications:
Manufacturer: Sunrise Mechatronic Technology Co., Ltd.
Model: PH-100
Machine Type: CNC Whirling Machine

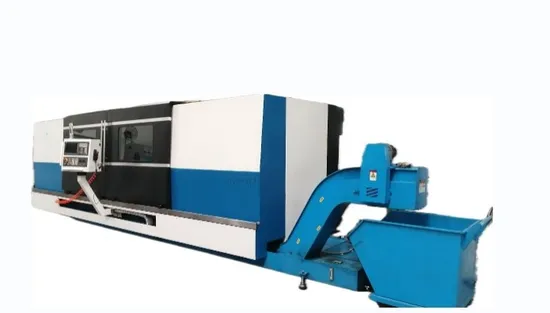

Product Image:

Internal Whirling Head
Internal Whirling Head Introducing the Siemens Controlled CNC Whirling Machine for Rotor Pump by Sunrise Mechatronic Technology Co., Ltd. This advanced CNC machine is specifically designed for precision whirling of rotor pumps in the oil industry. With its controlled whirling capabilities and CNC technology, it ensures efficient and accurate processing of cavity pumps. Experience superior performance with this CNC whirling lathe, perfect for rotor pump processing.

Siemens Controlled CNC Whirling Machine for Rotor Pump
Siemens Controlled CNC Whirling Machine for Rotor Pump Discover our high-performance CNC whirling machine designed specifically for rotor pump processing. With precision control and advanced technology, this machine, manufactured by Sunrise Mechatronic Technology Co., Ltd., is perfect for the oil industry and other applications.
Experience efficient and accurate whirling with our Siemens controlled CNC whirling machine. The machine is equipped with state-of-the-art Siemens controls, ensuring precise control over the whirling process. This allows for high-performance and reliable results, meeting the demands of the oil industry and other industries.
Exceptional performance and accuracy Our CNC whirling machine is designed to provide exceptional performance and accuracy. It utilizes advanced technology to deliver efficient and precise whirling, ensuring optimal results for rotor pump processing. With its high-performance capabilities, this machine is a valuable asset for any production line.
Reliable and efficient rotor pump processing Choose our Siemens controlled CNC whirling machine for reliable and efficient rotor pump processing. Experience the benefits of precision control and advanced technology, allowing you to achieve accurate and high-quality results. Trust Sunrise Mechatronic Technology Co., Ltd. for all your CNC whirling machine needs.




CNC Spiral Groove Milling Machine
CNC Spiral Groove Milling Machine Introducing the High-Precision CNC Whirling Lathe for Rotor Pump in the Oil Industry by Sunrise Mechatronic Technology Co., Ltd. This controlled CNC whirling machine is specifically designed for cavity pump processing, offering precision and efficiency. With Siemens CNC technology, it ensures accurate and reliable results. Ideal for manufacturing rotor pumps in the oil sector, this CNC milling machine is perfect for whirling rotor pumps and screw pumps. Experience high precision and quality with this advanced CNC lathe machine.
Product Description
CNC Spiral Groove Milling Machine - Product Description
CNC Spiral Groove Milling Machine The CNC Spiral Groove Milling Machine, developed by Sunrise Mechatronic Technology Co., Ltd., offers a range of advantages that cater to the reading habits of English-speaking natives. With its high rigidity overall inclined bed, made of HT300 material, this machine tool provides better cross-sectional shape, larger cross-sectional area, and high rigidity, ensuring strong anti-vibration and deformation abilities. The smooth chip removal and convenient operation enhance the machining stability of the machine tool.
Featuring a high-precision support rest, the CNC Spiral Groove Milling Machine utilizes a high-precision lead screw as the center centering element of the v-clamp, ensuring accurate centering and excellent stability.
Equipped with special screw CAM programming software, which has independent intellectual property rights, this machine tool automatically compiles the processing program using the space envelope theory. The software offers simple operation, high precision, and the flexibility to manually change data points, making it easier to develop new products. The software is patented.
The CNC Spiral Groove Milling Machine also incorporates an automatic tracking function, allowing the machine tool to intelligently find the original cutting path when powered on again. This feature solves the operator's most challenging operation problem during the milling process.
With a multi-axis CNC system, this machine tool enables four-axis linkage function and utilizes spindle servo motor and milling head swing servo control.
The second development of the CNC system enables real-time monitoring of the operation status of each axis during the machining process. This feature helps identify any machining or machine tool abnormalities promptly, preventing production accidents.
Designed with a large arc, transparent, and full protective structure, the CNC Spiral Groove Milling Machine offers a fashionable and clean environment.
Furthermore, Sunrise Mechatronic Technology Co., Ltd. has collaborated with renowned companies like SEEPEX from Germany, receiving valuable opinions that have greatly improved the manufacturing accuracy of their machine tools. The company's cooperation with China Lanzhou Branch of NETZSCH Pump of Germany represents international recognition of the CNC Spiral Groove Milling Machine's precision, efficiency, and other processing indicators.
Main Technical Parameters and Configuration For detailed technical parameters and configuration information, please refer to the provided reference information.

Items	Content	Unit
Size of Machine	From the front of machine's chuck to tailstock's tip, cusp's maximum distance	mm	2000-9000
Size of work-piece	Length of work piece	mm	2000-9000
	Max milling length	mm	2000-8000
	Dias of work piece to be milled	mm	20~100
	Direction of turning of screw		Random
	Bed	Slide rail span	mm	910
Slide rail tilting angle		Deg.	45°
Milling head Outside	Milling head spindle specifications		50#
	Brand of main shaft bearing		NSK
	Cutter type		Clamping blade carbide disc cutter
	() Cutter head diameter(Two-set)	mm	290(homemade)
	Number of cutter heads		24
	Brand of cutter blade		SANDVIK
	Specifications of cutter blade		VBMT160412
	Speed of milling head (step less)	r/min	0~300
	Drive motor power	KW	15kw
	Speed of milling head (step less)	r/min	0~300
	Max swing angle of milling head	Deg.	±65°
	Milling head angular resolution	Deg.	0.001°
Tailstock	Tail machine structure		Within hydraulic
	Tail locked structure		Hydraulic
	Sleeve drive mode		Hydraulic
	Diameter of tailstock bushing	mm	140
	Bore taper of tailstock bushing		6# Morse 6#
	Travel of tailstock bushing	mm	275
Servo control axis	(X)Horizontal slide (X axis), (Y)chuck rotation (Y axis), (Z)longitudinal bed saddle (Z axis) (A)milling head swinging (A axis)		4
CNC	4 4-axis controlling		6 SIEMENS CNC 6-axis system
	Transmission form		USB CF USB CF Card Net cable
(X) Horizontal slide (X axis)	Slide motor torque	N·m	27
	In rapid speed. Skateboards	mm/min	4000
	X CNC X axis resolution	mm	0.001
	brand of ball screw		made in China
	() The ball screw diameter(Protection)	in mm	Ø2.480×0.315 Ø63×8
	Skateboarding direction and horizontal Angle	Deg.	45°
	Slide guide span	mm	396
	Slide rail system matching form		Cast-iron guide/anti-wear soft tape
(Y) Headstock(Y axis)	Y Y axis motor torque	N·m	37
	Y Y axis fast to speed	r/min	30
	Y Spindle nose of Y axis		A15
	Y Spindle bore of Y axis	mm	185
	(Y) Chuck rotation(Y axis) drive form		/ Worm and worm wheel
	Chuck specification	mm	Ø320 Ø320 Four jaw chuck
	Y Spindle speed of Y axis	r/min	0~10
	Y/ Y axis Unit one revolution	Unit/r	100
	Y CNC Y axis resolution	Unit	0.001
(Z) Longitudinal bed saddle (Z axis)	Bed saddle motor torque	N·m	27
	The saddle bed in rapid speed	mm/min	5000
	Z CNC Z axis resolution	mm	0.001
	brand of ball screw		made in China
	() The ball screw diameter(Protection)	mm	Ø80×16
	Slide rail system matching form		/
(A) Milling head swinging (A axis)	Bed saddle motor torque	N·m	11
	(A) Milling head swinging transmission (A axis)		/ Worm and worm wheel
	A CNC A axis resolution	Deg.	0.001
	(A) Milling head swinging(A axis)	Deg.	±65°
Follower rest	Gripping range of follower rest	mm	Ø40~Ø400
	chucking power	KN	11.5
	Driving mode		Hydraulic
	Synchronous mode		The ball screw
Center rest	Range of diameter of work-piece	mm	Ø40~Ø300
	Used to support work-piece
	Driving mode		hand movement
Tool sets	Used to adjust the cutter		homemade
Worktable			Move over the full length of the machine
hydraulic system	brand of Hydraulic pump		Rexroth
	brand of hydraulic valve		Rexroth
Intermittent lubrication system	Intermittent lubrication pump		HERG
	Intermittent lubrication pump Type		VERSAIII~18226A~1
	Intermittent lubrication pump Voltage	V	220
	Intermittent lubrication pump Capacity	L	4
	Intermittent lubrication pump Max.pressure	Mpa	2.5
Chip removal	Chip removal Type		Chain plate
	Chip removal truck
	Chip removal Power	HP kW	1.006 0.75
	Chip removal Speed	mm/min	3000
	Chip removal Throughput	ft3/h L/h	23 650
electrical system	air switch		SIEMENS
	Definite Purpose Contactor		SIEMENS
	electric relay		Panasonic
Machine protection	Form		The protective
	Model		Arc transparent glass
	Color		&& Blue&white&black
leveling device	Cast iron parallels and adjustable foot-screw		Homemade
(××) Overall dimensions of the machine (L×W×H)	Without Control console	mm	12700×2550×2500
	With Control console	mm	12700×2950×2500
	(,) Weight of the machine (not including electric, chip conveyor and cooling tank)	kg	22000
CAM CAM software system	CNC Automatic generate polishing machine's CNC processor		, Independent R & D, English interface
Power Supply	Three-phase five little system		++ Three live wire + 0 wire + ground wire
	Working Voltage	V	380
	Control voltage	V	24
	power	KW	28
