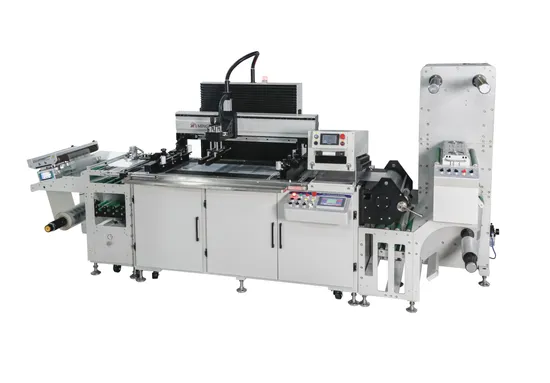

Roll to Roll Heat Transfer Label Screen Printing Machine

Product Description

Product Description
Characteristics:
1. The complete machine adopts the latest computer numerical control servo system, PAC and man-machine interface, making circuit control simpler, more reliable, and more stable.2. This machine adopts automatic feeding, including servo, tension, deviation correction paper receiving table, ultrasonic electric eye, electrostatic eliminator, and other configurations, making feeding and discharging more stable and smooth.
3. The printing component is equipped with a multiple pneumatic device, which allows the printing head device and the screen frame decide to freely lift and lower, making it convenient to scrub the screen and add or subtract ink.
4. The host adopts a fully servo feeding system, which is fast and accurate, and can achieve multiple high-precision printing. Controlled by photoelectric tracking, precise automatic alignment, point to point alignment, and more accurate color matching. The suction roller is selected for pilling material, which makes it possible to repeatedly print thin type material is not easily deformed during the process.
5. Equipped with a punching device, it can accurately punch holes in materials.
6. The material receiving unit has a servo motor control and a bronzing material receiving tension system.
7. UV system can be selected as single lamp/dual lamp system.

Model	MH-Y450-TJ	MH-Y570-TJ
Max. Printing Width	400mm	600mm
Max. Printing Size	350x500	500x700
Max. Frame Size	650x800	850x1100
Max. Printing Speed	6000 times/hour
Power	380V/38KW
Weight	1670 kgs
Dimension	4100x1550x1850mm

Detailed Photos
Packaging & Shipping
Company Profile
Ruian Minghui Printing Machine Co., Ltd mainly specialized in design and manufacturing textile fabric label printing machines, (silk screen printing, label Cutting machine, cutting and folding machine, block sheets making machine, label oven, , which is popularly used in garment and shoes label, toy labels, bedding labels, package labels and so on.
Minghui located in Ruian, Zhejiang province, with more then 30 years experiences in this field, we have more then 20 patents successfully., our machines sells very well in Middle East countries, European, South American, Africa, Asian, Australia and so on.
FAQ
1. Q: Are you a manufacturer, trading company or a third party?
A: We are a manufacturer, located in Ruian city, Zhejiang province, China. Warmly welcome to visit our company.
2. Q: What is your minimum order quantity, can you send me samples?
A: Our minimum quantity is 1 set, as our product is machinery equipment, it's difficult to send you samples, if you have any questions about the products, please feel free to contact us for more detail, we are glad to provide you more information such as specifications, video, etc.
3. Q: How does your factory do regarding quality controlling?
A: 1) All raw material we used are environmental-friendly
2) Skillful workers care every details in handling the producing and packing process
3) Quality control department are specially responsible for quality in each process
We have been kept providing high quality products by introducing advanced technologies for over 30 years, and our products are also widely exported to many different countries including Middle East countries, European, South American, Africa, Asian, Australia and so on, which earned us a high reputation among the customers.
4. Q: How about the after-sale service?
A: 1) TM online for 24 hours, also contact by email, skype, whatsapp, etc.
2) To solve the problems with videos/pictures.
3) One year warranty for spare parts change.
