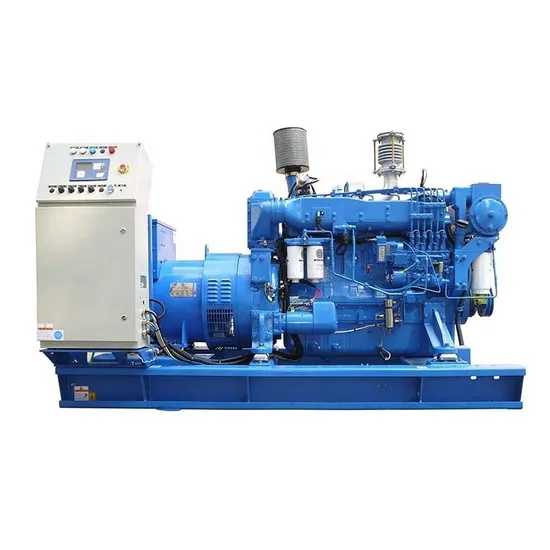

120kw 150kVA Silent Forced Double Circulation Marine Boat Generator Set

Product Description

Product Description

120KW 150KVA Silent Forced double circulation water cooling LPG CNG weichai marine boat biogas fuel / gas generator set
Engine	Engine model : WP10CD144-15DF	144Kw/1500rpm	6- cylinder, in - line, 4 - stroke, turbocharged and intercooled
		Bore*stroke : 126mm*130mm	Electronic	Forced double circulation water cooling
		Light Diesel \ Gas	Gas inlet GVU box pressure :300kPa	Fuel consumption rate:≤205g/kW·h
Generator	Generator model : SB-HW4.D-120	120KW / 150KVA	50HZ
		0.8PF	IP23	H
		3 phase & 4 wire	single	brushless
Genset	Genset model : CQFJ120J-WQ	120KW / 150KVA	400V
		50HZ	216A	1500RPM
		Electronic	2410*1168*1591	1200kg

Main Features 1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced China famous brand components in pneumatic parts ,electric parts and operation parts.
4) Running in a high automatization and intellectualization,no pollution
5) Gas(LNG) and diesel oil are mixed or all diesel oil for running
Detailed Images Main Parts Name: gas inlet
Brand:No
Original: China
Function : Stainless steel , LNG enters the genset from this bore
Main Parts Name: ECU
Brand: No
Original: China
Function : In charger of LNG
Main Parts Name: Monitor
Brand: Fortrust power control technology(QIDONG) CO.,LTD
Original: China
Model : FJ4000D4
Function : speed meter; Oil pressure gauge; Water temperature meter; Gas meter; Start / Stop , fresh water high temperature alarm; oil high temperature alarm ; low Oil pressure alarm ; Overspeed alarm ; Low gas pressure alarm; Battery undervoltage alarm;
Main parts Name: Bosch
Brand: Bosch
Original: Germany
Function : Electronic control system
Our Service Pre-Sales Service * Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service * Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery

Packaging
Size	2500 (L) * 1200 (W) * 1600 (D)
Weight	2.15 T
Packaging Details	The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Shipping
Size	20 GP Container
