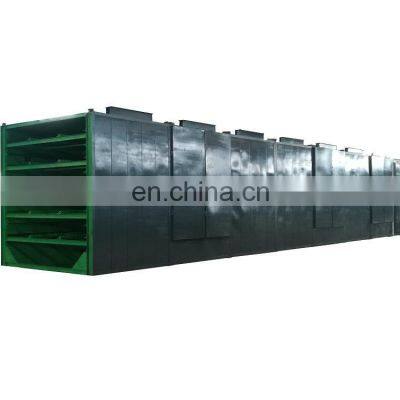

Continuous Charcoal Coal Briquettes Mesh Belt Drying Equipment Dryer for different material briquettes

Product Description

Product Description
Product IntroductionContinuous Charcoal Coal Briquettes Mesh Belt Drying Equipment Dryer for different material briquettesThe riquette mesh belt dryer also named chain plate dryer, it is a kind of drying machine use steel net belt as transport carrier and dry material continuously. Because transmission belt is mesh, so this dryer can dry regular or irregular shape various briquette (for examples: coal, briquette of all kinds of mineral, food and vegetables). This briquette mesh belt dryer can be used with other supporting machine and also can be used alone. Especially it is the ideal dry equipment of various kinds of materials briquette production line.Features of briquette dryer mesh belt dryer machine 1. Small space to take. 2. Low investment. 3. High efficiency.4. Large output and high evaporation strength 5. Standardized production, the number of segments can be increased according to output and work shopProduct ParametersModelDW-1.2-8DW-1.2-10DW-1.6-8 DW-1.6-10DW-2-8DW-2-10DW-2-20Quantity of unit45454510Width of belt(m)1.21.62Length of dry section(m)81081081020Operation temperature(oC)50-140Steam pressure(MPa)0.2-0.8Steam consumption (kg/h)120-300150-375150-400180-500180-500225-600450-1200Drying time (h)0.2-1.21.25-1.50.2-1.20.25-1.50.2-1.20.25-1.50.5-3Drying capacity(kg water/h)60-16080-20085-220100-260100-260120-300240-600Total power (kw)11.413.614.618.719.724.551Overall sizeL(m)9.5611.569.5611.569.5611.5621.56W(m)1.491.491.91.92.322.322.32H(m)2.32.32.42.42.52.52.5Product Details ShowWhy Choose UsAbout sinolion company 1,Our Company professional research and supply briquette mesh belt dryer machine many years, we have lots experiences to help our clients choose workable mesh belt dryer to meet client's demand.Mesh belt dryer technology2, More than five engineers, professional research dryer technology, improving the dryer production process, to achieve customer satisfaction.Service3, Professional sales team to provide pre-sale service, let customers fully understand briuqette mesh belt dryer, specialist is responsible for the after-sale service, solve practical problems when mesh belt dryer working.Product ProcessingSteel belt making processThe belt material of briquette mesh belt dryer can be carbon stell or Stainless steel. the material depands on dry material. We will use carbon steel if dry material is coal briquette, charcoal briquette, carbon black briquette and other mineral briquette.When the briquette mesh belt dryer dry fruits, vegetables, medicinal herbs, we must use stainless steel belt.Middle section mading of briuqette mesh belt dryer1.The shaft wall of briquette mesh belt dryer including outside, inside, channel steel. all 3 layers is 3mm high carbon steel.2.Upper of the dryer, there are 2 layers 2mm high carbon steel.3. Bottom of the dryer, there is 1 layer 3mm high carbon steel.4. The frame of the middle section is 3mm high carbon steel.5. U-channel steel is 3mm thickness high carbon steel.The material also can use stainless steel when dry fruits, vegetables, medicinal herbs etc.Mesh belt Detail1,Shaft diameter 80mm2, Sprocket diameter pitch=200mm3,Mesh belt with chain use SUS 3044, Bearing No. UCT316Mesh belt parameter1,Spring length100mm; inner holeΦ82mm; thicknessΦ162.Mesh wire’s thickness Φ3mm3. Wire feed diameter Φ3mmBearing of mesh belt dryerBearing No.according to belt layer. 1 layer mesh belt dryer, bearing 4 setsPacking & DeliveryBriquette Mesh belt dryer packingThe middle dry sevtion of briquette mesh belt dryer is 2 meters , so it is very easy to loading them into containers. the briquette mesh belt dryer head and tail is 2.5m, so the complete briquette mesh belt dryer can be loaded in containers separately, the mesh belt will rolled and delivery together with briquette mesh belt dryer. other parts like dryer motore, fan, Electric control cabinet will packing in wood box or steel box.Sinolion Company
