Chipboard Edge Banding Machine Edge Banding Machine Curve and Straight

Product Description

Product Parameters

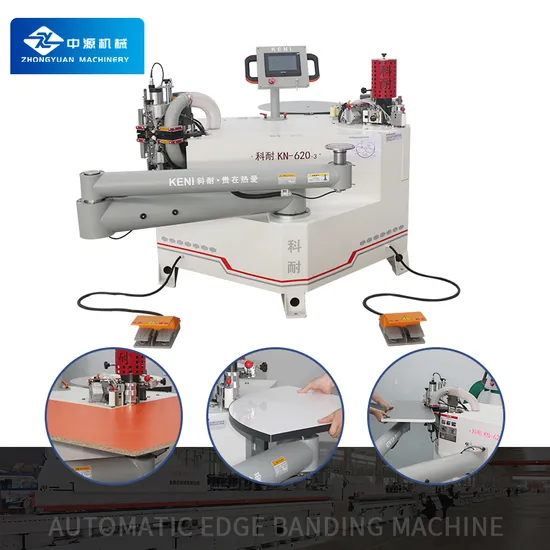

Automatic Curved Edge Banding and Trimming Machine:
1. Especially suitable for round, oval, rounded rectangle, etc.
2. Gluing pot design, PUR and EVA dual-use, one key row of glue, easy to replace.
3. Four limits to prevent the edge sealing strip from running out of position.
4. Rotatable LCD display, easy to operate.
5. Raised head, upgraded head, can choose more width of sealing strip.
6. Edge banding and trimming in one, easy operation for large boards.

Model	KN-620-3
Voltage	380V/50HZ/3phase
Total power	5.7KW
Edge banding speed	0-20cm/s
Air pressure	0.6-0.8Mpa
Vacuuming hole	φ150mm
Glue pot temperature	110ºC-210ºC
Glue material	PUR/EVA
Glue pot volume	2600ml
Strip thickness	0.5-3mm
Trimming	14-70mm both sides trimming, <14mm single trimming
Strip width	14-70mm
Minimum working radius	R=20mm
Size	2010*1460*1470mm

Detailed Photos

Product Application


Company Profile
Certifications
FAQ
Q1: I already have an edge banding machine and I would like a trimming machine. Do you have any recommendations?
A: Yes, we have a matching trimming machine. You can choose the product that suits you according to your actual production needs. Of course, we will also ask you some questions, such as plate size, plate thickness, equipment voltage, number of workers, and so on. With so many types of products, there is always one that is suitable for you.
Q2: Can your edge banding machine use PUR adhesive?
A: PUR glue has high requirements for glue pots. We recommend using models such as F14620-3700-3350 for up glue pots, depending on your specific needs.

Q3: Are you a factory or a trader?
A: We are a 20 year source production factory with rich production experience and a total of 8000+customers. We can provide you with thoughtful and accurate after-sales service.

Q4: How should I make the payment?
A: Firstly, you will pay a 50% deposit as a prepayment, and then we will start producing the equipment. After the
equipment is completed, I will send you photos and videos, and you can make the remaining payment. After receiving all the payment, we will arrange for the fastest container to ship to you. You will receive the equipment soon, and I will arrange professional technicians to coordinate with you regarding installation issues.

Q5: How long is the delivery time?
A: Conventional equipment takes 10-12 days, customized voltage or other parameters take around 30-45 days.
