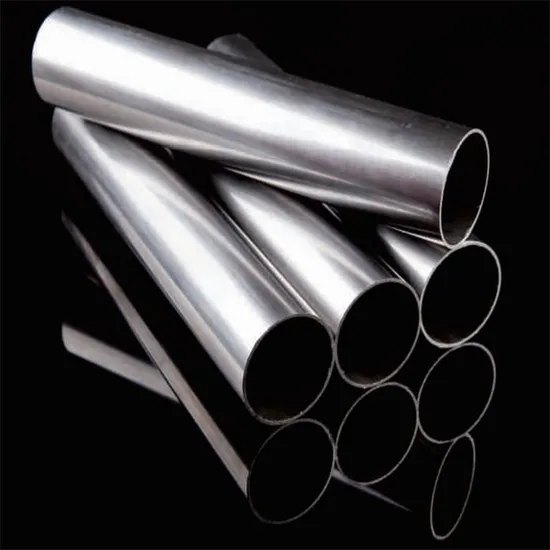

Round Hydraulic Precision Cold Drawn Pipe En10305-4 for Auto Industry

Product Description

Detailed Photos
Product Description Applications:
for Auto industry/for machinery use/Oil Cylinder Tube/Motorcycle shock absorber
Auto shock absorber inner cylinder/Telescopic Cylinders
Size range: O.D.:6-88mm W.T.:1-15mm L:max12000mm

Production: Cold Drawn + Cold Rolled

Standards Steel Grade and Chemical Compositions:

Steel Grade		C	Si	Mn	P	S	Al
Steel Name	Steel Number	max	max	max	max	max	min
E215	1.0212	0.10	0.05	0.70	0.025	0.025	0.025
E235	1.0308	0.17	0.35	1.20	0.025	0.025	-
E355	1.0580	0.22	0.55	1.60	0.025	0.025	-

Mechanical properties at room temperature
Steel Grade		Minimum values for the delivery condition
Steel Name	Steel Nubmer	(+Cc)		(+LCc)		(+SR)			(+Ad)		(+N) NBK
		Rm Mpa	A %	Rm Mpa	A %	Rm Mpa	ReH Mpa	A %	Rm Mpa	A %	Rm Mpa	ReH Mpa	A %
E215	1.0212	430	8	380	12	380	280	16	280	30	290-430	215	30
E235	1.0308	480	6	420	10	420	350	16	315	25	340-480	235	25
E355	1.0580	640	4	580	7	580	450	10	450	22	490-630	355	22

Company Profile
Chewit international Located in zhangjiagang city which is along The Yangtze Golden Channel the junction of River and Coast Economic Belt. It owns an excellent geographic position, as it is close to Nanjing city in the north, adjacent to Suzhou and Wuxi cities in the south, next to Shanghai international city in the east. Zhangjiagang international port and State highway endow us a convenient water and land transportation which links us to the outside world both home and aboard. Chewit International is one group company with two manufactures one is producing steel forgings for Marine, Power, Boiler, Ocean, Oil, Petrochemical, Mechanical and Hydraulic fields and the other is producing precision steel tubes for automotive industry and hydraulic system and also one semi-independent company specially for import and export business. We have a total area of 150000 square meters with the employees over 200 people. All the products well produced by our mills need to be double inspected by chewit professional quality controller and then we will offer our customer the vivid report for the tested items. Only those products which are inspected well can be allowed to delivery to our customers. By the means of strict inspection, we wined a lot of customer for long term business both home and abroad.We adhere to our company tenet Customer First, Quality formost and always try our best to serve our customer with our full heart.
